Each Wabo® brand bridge and highway expansion joint system is designed with the end user in mind. We engineer our systems intelligently, making them simpler to install, allowing you to get on and off the jobsite more quickly thereby saving time and money.

Expansion Joints and Accessories for Bridge Maintenance and Preservation

Cutaway of insulated concrete block component

BEJS by Sika Emseal

Bridge Expansion Joint System (BEJS) is a traffic-durable bridge and roadway expansion joint which provides a primary watertight seal. The system is comprised of a pre-compressed, silicone-and-foam hybrid installed into field-applied epoxy adhesive on the joint faces, with the silicone bellows locked to the joint faces with a silicone sealant band. The BEJS SYSTEM features a hydrophobic acrylic impregnation infused into the cellular foam base material resulting in low-temperature flexibility not available in asphalt, wax, or isobutylene-based products.
Architectural floor expansion joint system render

Wabo® Flex

Wabo®Flex is a molded rubber segmental expansion joint designed to accommodate structure movements from 2 inches up to 13 inches. The Wabo®Flex system consists of molded rubber segments which are steel reinforced and embedded with corrosion-resistant aluminum wear plates. Tongue and grooves at the end of each rubber segment, prevent uplift or separation while ensuring a watertight connection.
Wabo Trans Flex

Wabo®TransFlex

Wabo®TransFlex is renowned as the original-reinforced elastomeric molded rubber expansion joint system and stands as a top choice for bridge joints. Its rubber modules are not only steel-reinforced but also ingeniously designed with tongue and groove fittings, ensuring a snug, end-to-end mating, both across decks and at curbs. This Transflex bridge solution is suitable for installation in new decks or as part of rehabilitation projects in older structures. All models adapt readily to skew angles. Properly installed, the Wabo®TransFlex system will accommodate anticipated thermal movements reject debris, and create a level, smooth-riding, wear-resistant surface.
Industrial metal rail with precision grooves

Wabo®MDM TransFlex

The Wabo®MDM TransFlex is a unique multi-directional movement (MDM) segmental plate expansion joint assembly designed to accommodate large differential displacements, rotations and service movements as well as seismic movements. The simplistic design of the assembly is comprised of four main design components: the deck plate, the elastomeric segmental panels, the support plate and the welded channel/box assembly. Unlike other large movement capacity expansion joint technologies, Wabo®MDM TransFlex shifts the expansion component away from the critical joint opening and onto the deck surface. This shift increases the service life of the elastomeric segmental panels.
Close-up of mechanical clamp between blocks

Wabo®GutterFlex (BOG, USG)

Wabo®GutterFlex is a flexible fabric reinforced neoprene profile that satisfies the required movement criteria and compresses without damage during the full cycle of joint closure. The system collects and drains excess amounts of moisture through a optional drain tube that exhibits similar flexibility. The block out or under slab versions can be used as a secondary back up to any expansion joint system in today’s marketplace.
Emcrete II industrial yellow containers set

Emcrete II

Emcrete II by Emseal is a flexible, rapid setting, self-leveling, impact absorbing elastomeric concrete exclusively for bridge and DOT applications. It is a non-hazardous, extremely-low VOC product primarily used filling blockouts, impact-absorbing backfill nosing, patching potholes, or spalls on concrete roadways and bridges. Rapid curing means you can usually install expansion joint systems into an Emcrete II joint header after about 45-minutes. You can turn traffic to Emcrete II used either as patch or as an expansion joint header in 2-3 hours.
Floor expansion joint cover profile detail

Wabo® ElastoFlex (EFL)

The Wabo®ElastoFlex (EFL) - The Bridge Series joint system is a construction solution designed for bridge joints. It incorporates high-quality elastomeric materials, featuring a continuous gland made of fabric-reinforced EPDM rubber. This glad is securely locked by modular steel-reinforced EPDM anchor blocks, ensuring robust construction. The ends of each anchor block tongue and grooved together to ensure a positive connection and prevent uplift or separation. The membrane gland which is installed continuously curb to curb has a total movement capability of 4 inches.
Concrete joint with metal expansion profile

Wabo®FS Bridge Seal

Wabo®FS Bridge Seal is a pre-compressed, foam-supported silicone bridge joint system. The Wabo®FS Bridge Seal is comprised of a 100% acrylic impregnated polyurethane foam seal coated with a highway grade UV Stable silicone. The foam seal is designed to be permanently bonded to the joint substrate with a user-friendly field applied Wabo®Gel Adhesive.
Cross-section of layered concrete joint system

Wabo® Expandex

The Wabo®Expandex system is a unique expansion joint for asphalt overlays and abutment joints. The system is a one piece monolithic asphaltic plug joint designed to eliminate the need for any anchoring device and provide a flexible yet smooth ridging joint.
Concrete floor joint with rubber expansion profile

Wabo® Compression-Seal (WA)

Wabo® brand CompressionSeals have been perfected over their 30-year history of successful installations in parking structures, athletic facilities and general horizontal applications.
Rubber expansion joint between concrete slabs

Jeene® (W, FW)

Jeene® - Bridge Series is a structural sealing joint system comprised of a neoprene profile, which is air-pressurized and bonded in place with a specially formulated epoxy adhesive. When properly installed, the high performance Jeene® joint system will not tear away, protrude out of, or slip from its original position when exposed to repeated mechanical or thermal movements.
Concrete expansion joint with filler insert

Wabo® Evazote (UV)

Wabo®Evazote UV is preformed low density closed cell joint seal that is bonded into place with a two component 100% solids modified epoxy adhesive. Wabo®Evazote has a working movement range of 60% compression, 30% tension and 120% shear. The UV stability of Wabo®Evazote allows the seal to be resistant to abrasion, oxidation, oils, salt and other materials that are spilled on or applied to the surface. Add To Submittal

Wabocrete Silicone Seal Armored

Wabo® SiliconeSeal

Wabo®SiliconeSeal is a dynamic, high performance; two-part silicone sealant designed for a variety of bridge expansion joint applications. The self-leveling, rapid cure of the Wabo®SiliconeSeal is ideal for joints where anticipated movements are +100%/- 50% of the joint opening.
Joint sealant with backer rod cross section

Wabo®SPS

The Wabo®SPS expansion joint system is a preformed silicone joint sealing system designed to accommodate movements and varying joint widths on bridges and other civil structures requiring watertightness of expansion joints. Ideally suited for both new construction and retrofitting of existing expansion joints, the Wabo®SPS system is a durable quick turn around solution for sealing deck joints.

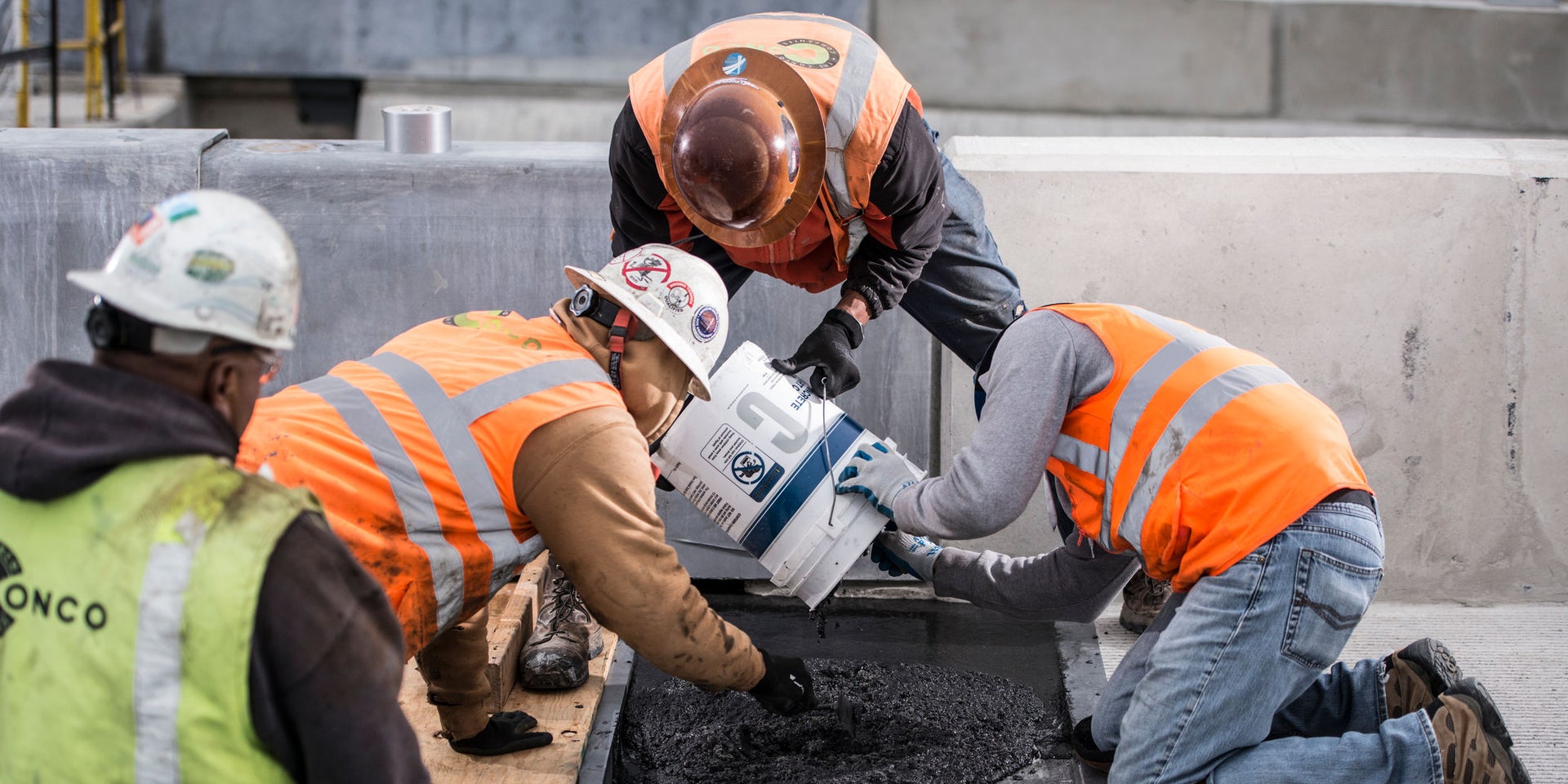

Worker pouring asphalt onto construction surface

WaboCrete® IIㅤㅤ

WaboCrete® II is a highly capable, two-component polyurethane header with a specialty aggregate, 100% solids material for use in exterior construction environments. WaboCrete® II absorbs traffic impact loads and evenly disperses them into the deck, while allowing the system to flex with deck loads. It is resistant to ozone, deicing chemicals, and even harsh abrasives.
Wabo SafetyFlex SFP Main Image

Wabo®SafetyFlex(SFP)

Wabo®SafetyFlex is an elastomeric hinged cover system that is ideal for pedestrian walkway areas as well as in low-speed vehicular traffic areas, including bridges. Loading-bearing, independent metal plates integral to the molded rubber cover allows the system to flex in response to changes in vertical displacement between opposing slabs. Used in both recessed and surface mount applications.
Concrete expansion joint detail cross-section

Wabo®XPE

Wabo®XPE is a preformed, impermeable, UV stable gray foam joint seal that is bonded into place with a two component 100% solids modified epoxy adhesive. Wabo®XPE has a working movement range of 60% compression and 30% tension. The Wabo®XPE Seal is resistant to abrasion, oxidation, salts and other materials that are spilled on or applied to the surface.
Wabo®SPS CALTRANS Bonded Joint Seal

Wabo®SPS CALTRANS Bonded Joint Seal

The Wabo®SPS CALTRANS Bonded Joint Seal expansion joint system is a preformed silicone joint sealing system designed to accommodate movements and varying joint widths on bridges and other civil structures requiring watertightness of expansion joints. Ideally suited for both new construction and retrofitting of existing expansion joints, the Wabo®SPS system is a durable quick turn around solution for sealing deck joints.
