Product Data Sheet Show all documents

Sikacryl® PowerSet

Two component, polyester based gap filler

4.2 (88)

Sikacryl® PowerSet is a specially formulated two-part polyester mortar designed to cure quickly for repair of cementitious and masonry substrates.

  • Fast Curing
  • Easy to Install

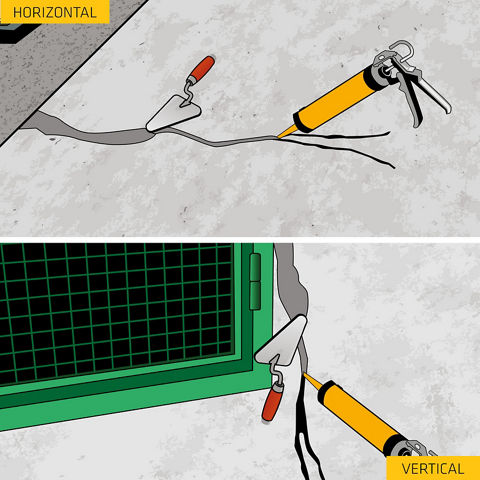

  • Excellent for Minor Repairs to Horizontal or Vertical
  • Convenient Packaging
Product Data Sheet Show all documents

Usage

  • Repointing Repairs on Masonry Structures

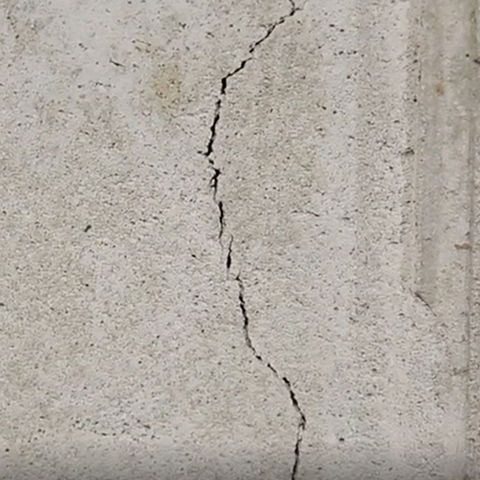

  • Crack Filling
  • Walkways, Sidewalks, Stairs, Decks, Patios, Walls, etc.

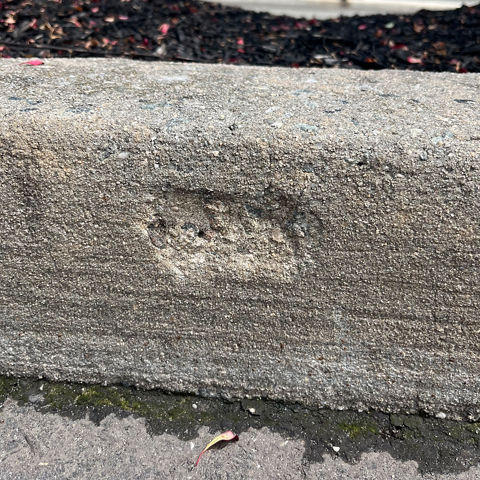

  • Suitable for use as a filler repair material for small gaps occurring in typical cementitious mortar, concrete, and masonry substrates


Advantages

  • Fast Curing
  • Easy to Install
  • Excellent for Minor Repairs to Horizontal or Vertical
  • Convenient Packaging

Packaging

10.1 fl. oz. (299 ml) + 2 static mixing nozzles

Carton containing 6 cartridges with 2 static mixing nozzles per cartridge

Color

Mixed: Gray
‘A’ Component: Beige
‘B’ Component: Black

Product Details

Product Information

Shelf Life

12 months in original, unopened packaging

Storage Conditions

Cartridges standing upright in cool conditions, between 41 to 77 °F (5  to 25 °C) out of direct sunlight. Condition material to 60 to 75°F (15 to 24 °C) before using.

Density

0.06 lb./in3 (1.7 g/cm3)

(mixed) (ASTM D-1875)
Technical Information

Compressive Strength

4 hours7,250 psi (50 MPa)
24 hours8,700 psi (60 MPa)
7 days10,730 psi (74 MPa)

Modulus of Elasticity in Compression

4.54 x 105 psi (3,129 MPa) 7 days

(ASTM D-695)

Tested at:

73 °F (23 °C)

50 % R.H.

Flexural Strength

3,480 psi (24 MPa) 7 days

(ASTM D-790)

Tested at:

73 °F (23 °C)

50 % R.H.

Tensile Strength

1,595 psi (11 MPa) at 24 hours
1,885 psi (13 MPa) at 7 days

(ASTM D-638)

Tested at:

73 °F (23 °C)

50 % R.H.

Application

Application Information

Cure Time

Cartridge, Ambient and Substrate TemperatureGel Time*Cure Time
41 °F to 50 °F (5 °C to 10 °C)12 mins120 mins
51 °F to 68 °F (11 °C to 20 °C)6 mins80 mins
69 °F to 77 °F (21 °C to 25 °C)4 mins40 mins
78 °F to 86 °F (26 °C to 30 °C)3 mins30 mins
87 °F to 95 °F (31 °C to 35 °C)2 mins20 mins
96 °F to 104 °F (36 °C to 40 °C)90 secs15 mins

Sikacryl PowerSet is a two component polyester formulation requiring a static mixing nozzle to combine the ingredients for a reactive chemical cure.

* Gel Time is the typical amount of time for mixed Sika PowerSet to solidify at highest temperature in the range
Consumption

Coverage

Each cartridge will yield approximately 9-1/2 linear feet (2.9 m) of mixed material when filling a typical 3/8 in. wide by 3/8 in. deep (10 mm x 10 mm) gap (e.g. mortar joint)
Application steps

MIXING

  • Remove the twist cap from the top of the cartridge.
  • Reach into the opening at the top of the cartridge with a pliers or similar tool and pull the top of the plastic film upwards to reveal a metal retaining clip.
  • Cut the plastic film open below the metal retaining clip with a utility knife.
  • Ensure that both components within the plastic film are free to flow prior to inserting cartridge into a standard, good quality caulking gun. ‘A’ component is Beige in color. ‘B’ component is Black in color.
  • Attach the static mixing nozzle.

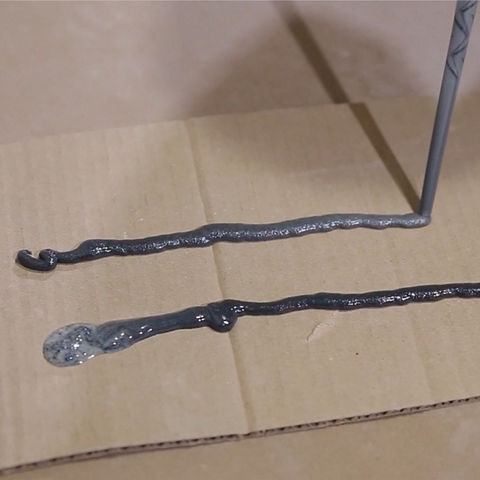

  • Begin dispensing the cartridge’s contents through the static mixing nozzle. Prior to installation, the initial portion of material dispensed from the nozzle is discarded until it can be visually verified that both components are flowing and mixing to a uniform Gray appearance and consistency.
  • If cartridge is partially used and the remaining contents is to be saved for a future application, leave the static mixing nozzle mounted on the cartridge until that later date. When ready to continue use, remove the spent static mixing nozzle by twisting counterclockwise and breaking the seal of the cured mortar. This may require the assistance of a pliers, wrench or similar tool. Remove remnants of cured mortar with a utility knife from the top of the openings in the plastic film to ensure fresh material is free to flow. Attach a new static mixing nozzle and repeat the dipensing and application procedures.

APPLICATION

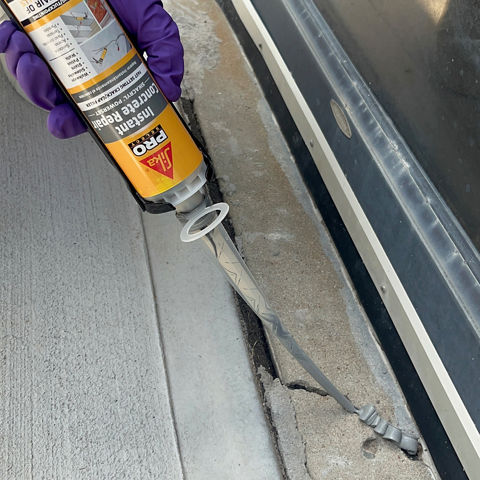

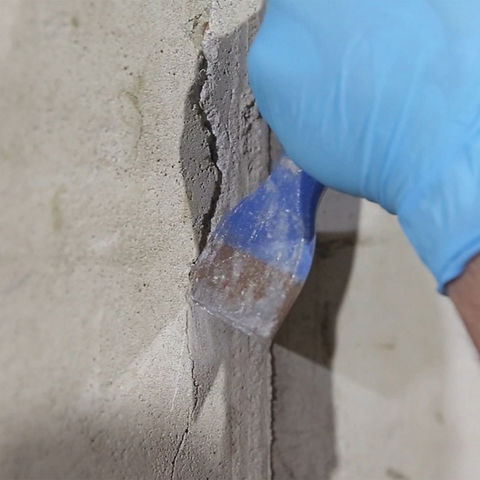

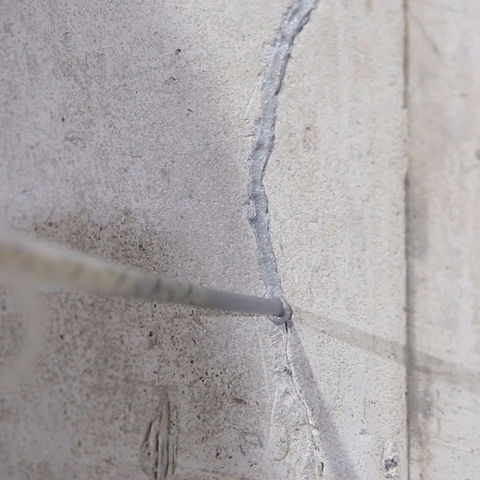

After confirming that a well blended mix is being dispensed from the static mixing nozzle, fill the prepared crack, cavity or void with Sikacryl® PowerSet gap filler.



Tooling and Finishing

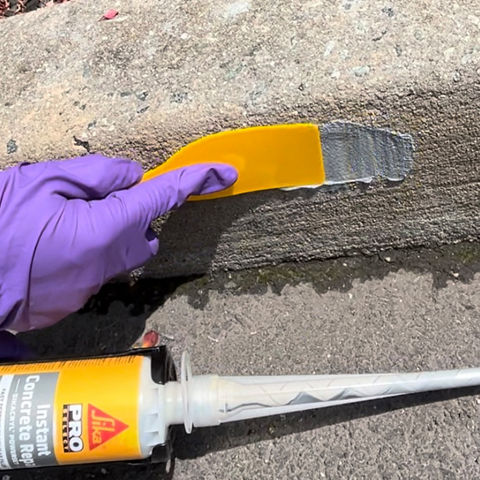

Finish flush and strike even with the existing surface using a dry putty knife or small pointing trowel.



Removal

Uncured product can be cleaned immediately from installation tools and surfaces with a solvent such
as Acetone, MEK or Xylene. Cured mortar can only be removed mechanically.

CLEANING OF TOOLS

Uncured product can be cleaned immediately from installation tools and surfaces with a solvent such as Acetone, MEK or Xylene. Cured mortar can only be removed mechanically.



Documents
