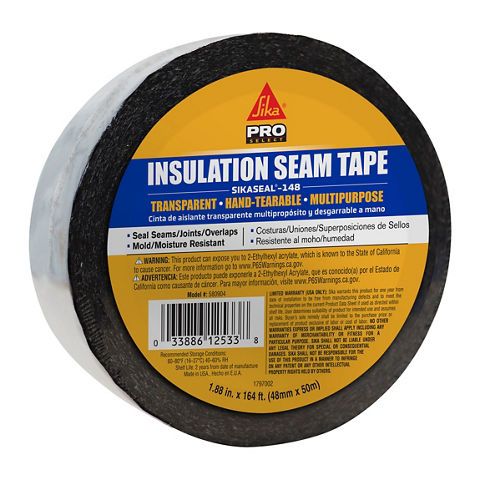

SikaSeal®-148 Insulation Seam Tape

Transparent, hand tearable, multipurpose insulating tape

4.5 (318)

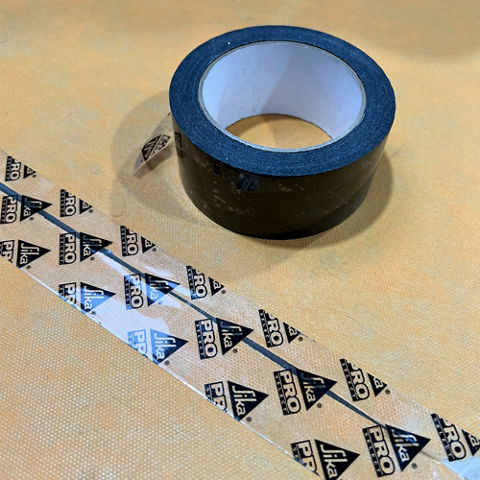

SikaSeal®-148 Insulation Seam Tape is a clear film, acrylic adhesive tape used for various building envelope applications.

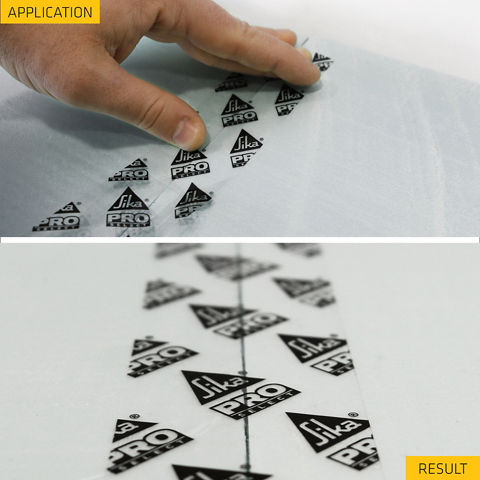

  • Clear in appearance to visually see the seam or overlap
  • Tough and durable
  • UV resistant for outdoor installations
  • Won't lift once placed on a clean, dust-free, dry surface
  • Mold and moisture resistant
  • Performs well in low or high ambient and substrate temperature conditions
  • Performs well in high relative humidity conditions while surfaces are free of standing water (e.g. no droplets, no condensate, etc.)
Product Data Sheet Show all documents

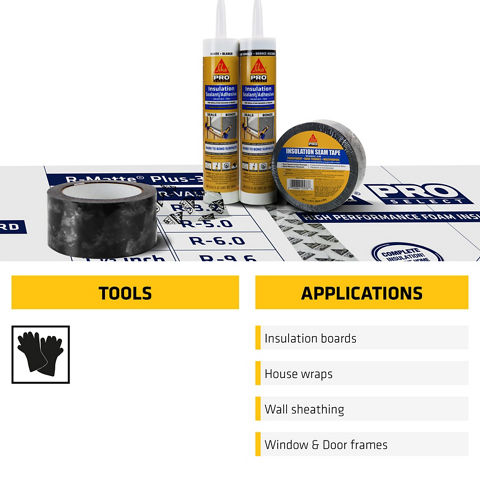

Usage

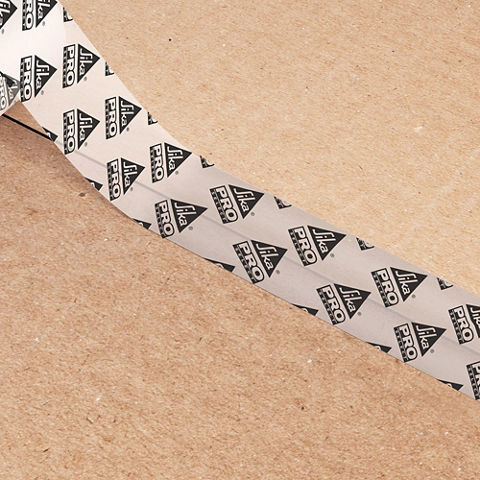

  • Sealing seam joints and overlaps of house wraps
  • Sealing seam joints and overlaps of interior/exterior vapor barriers

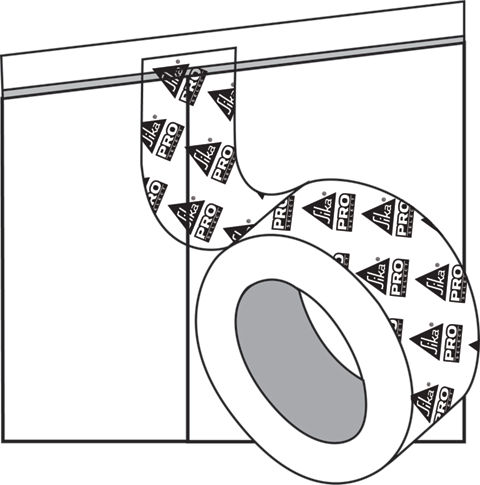

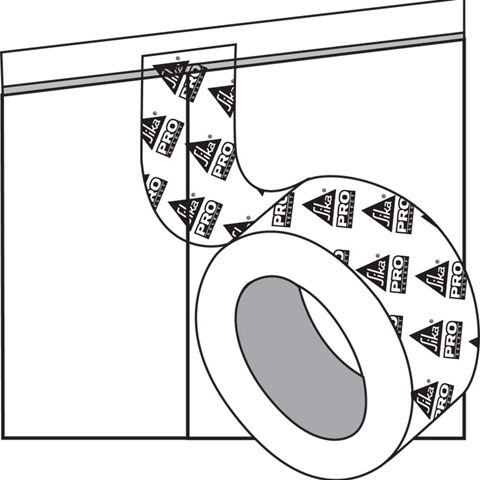

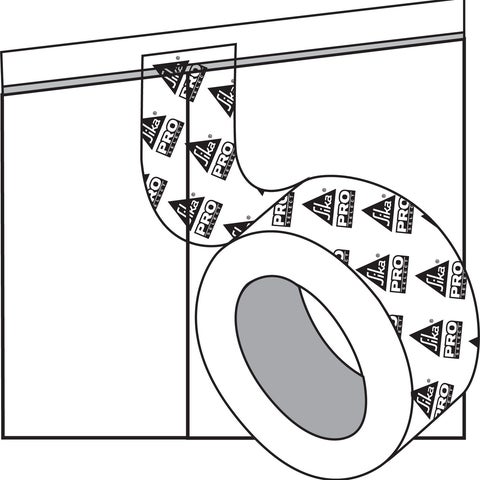

  • Sealing exterior wall sheathing joints

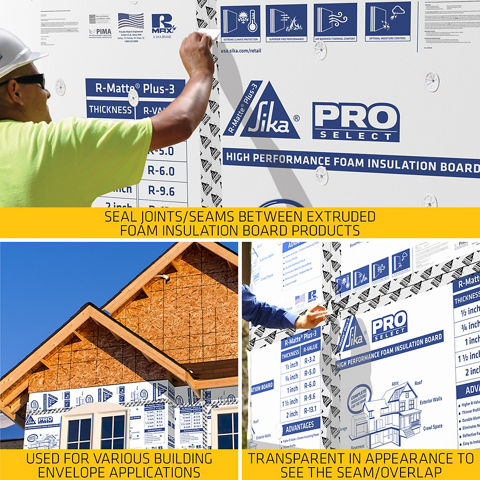

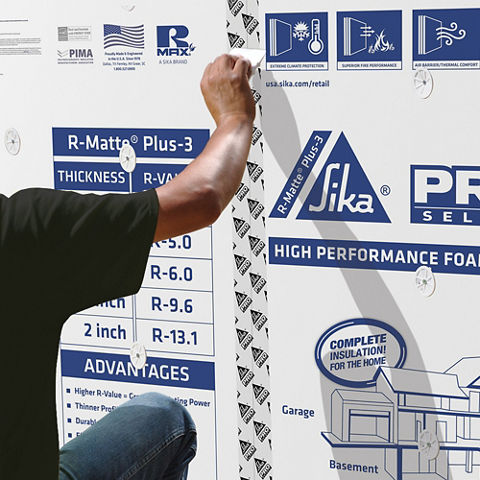

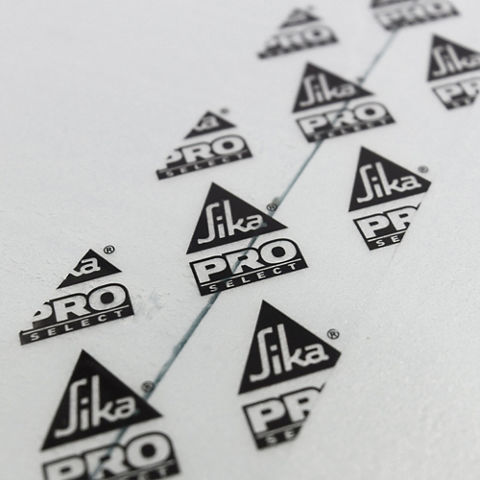

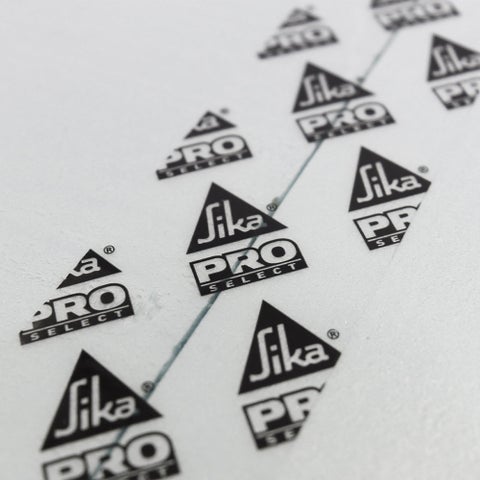

  • Sealing joints or seams between extruded foam insulation board products
  • Sealing window and door flanges or frames
  • Patching minor damage caused to wall sheathing and house wrap system

Advantages

  • Clear in appearance to visually see the seam or overlap
  • Tough and durable
  • UV resistant for outdoor installations
  • Won't lift once placed on a clean, dust-free, dry surface
  • Mold and moisture resistant
  • Performs well in low or high ambient and substrate temperature conditions
  • Performs well in high relative humidity conditions while surfaces are free of standing water (e.g. no droplets, no condensate, etc.)

Packaging

Plastic wrapped roll, 12 rolls per case

Color

Transparent (Clear)

Product Details

Product Information

Chemical Base

Acrylic adhesive

Shelf Life

24 months from date of production if stored properly in original, unopened and undamaged, sealed packaging

Storage Conditions

Store in cool, dry, well ventilated conditions, out of direct sunlight at 60 - 80 °F (15 - 27 °C); at 40% to 60% Relative Humidity (R.H.).

Dimensions

2 inches x 164 feet (50 mm x 50 m)

Thickness

3.2 mils (0.08 mm)

(ASTM D1000)
Technical Information

Tensile Strength

32 pounds per inch (5.6 N/mm)

(ASTM D1000)

73 °F (23 °C), 50% R.H.

Adhesion in Peel

50 ounces per inch (5.47 N/cm) to steel

(PSTC 101)

73 °F (23 °C), 50% R.H.

UV Exposure

180 days

Service Temperature

-40 - 212 °F (-40 - 100 °C)    [after installed]

Application

Application Information

Ambient Air Temperature

-5 °F (-20 °C) minimum / 180 °F (82 °C) maximum

[during installation]

Substrate Temperature

-5 °F (-20 °C) minimum / 180 °F (82 °C)

[during installation]

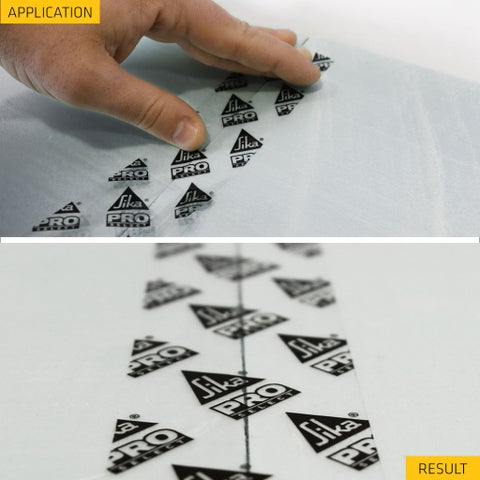

Application steps

SUBSTRATE PREPARATION

All surfaces that tape will be applied to should be sufficiently cured and free of moisture, frost, oils, dust, dirt and other debris or contaminants that could inhibit adhesion. Any necessary cleaning agents used should be completely removed and/or rinsed off surfaces and allowed to thoroughly dry. No residues of cleaning agents should be present at time of tape installation. Any wet method of surface preparation must be allowed to thoroughly dry. Clean surfaces with a dry cloth as necessary.
