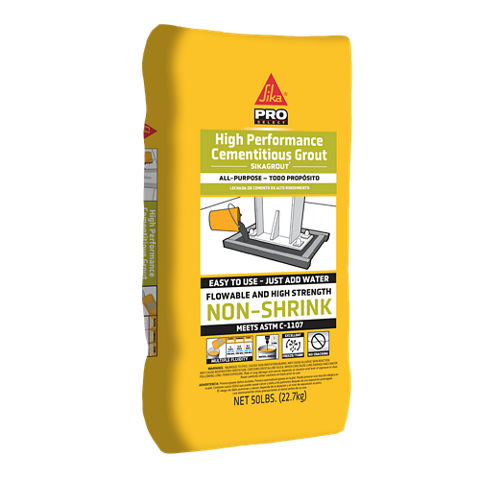

SikaGrout®

High Performance Cementitious Grout

SikaGrout® is a non-shrink, cementitious grout with a unique 2-stage shrinkage compensating mechanism. It is non-metallic and contains no chloride. With a special blend of shrinkage-reducing and plasticizing/water-reducing agents, SikaGrout® compensates for shrinkage in both the plastic and hardened states. A structural grout, SikaGrout® provides the advantage of multiple fluidity with a single component.

  • Easy to use, just add water
  • Flowable & high strength
  • Multiple fluidity with one material
  • Shrinkage compensated - no cracking
  • Non-metallic, will not stain or rust
  • Low heat build-up
  • Excellent for pumping: Does not segregate, even at high flow. No build-up on equipment hopper
  • Superior freeze/thaw resistance
  • Resistant to oil and water
  • Can be used on grade, above & below grade, indoors & outdoors
Product Data Sheet
Show all documents

Usage

  • General purpose grouting

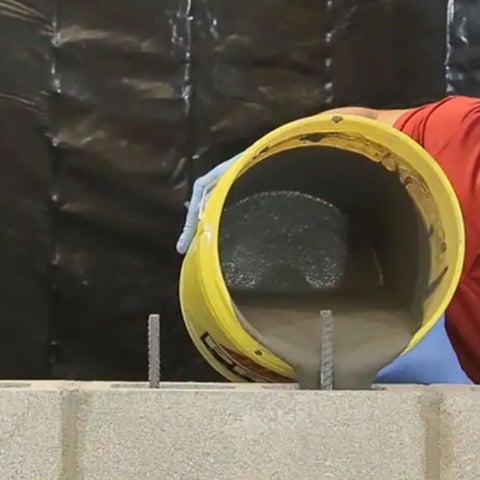

  • Filling cavities, voids, gaps, & recesses

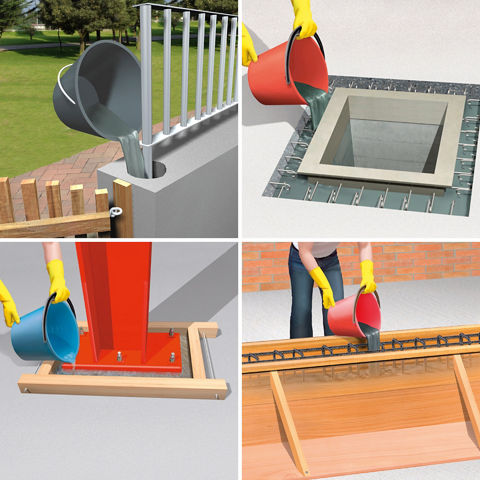

  • Structural grouting of:
    • Column & machine base plates / Anchor rods / Bearing plates / etc.
  • Multiple fluidity allows ease of placement:
    • Ram in place as a dry pack
    • Trowel-apply as a medium flow
    • Pour or pump as high flow


Advantages

  • Easy to use, just add water
  • Flowable & high strength
  • Multiple fluidity with one material
  • Shrinkage compensated - no cracking
  • Non-metallic, will not stain or rust
  • Low heat build-up
  • Excellent for pumping: Does not segregate, even at high flow. No build-up on equipment hopper
  • Superior freeze/thaw resistance
  • Resistant to oil and water
  • Can be used on grade, above & below grade, indoors & outdoors

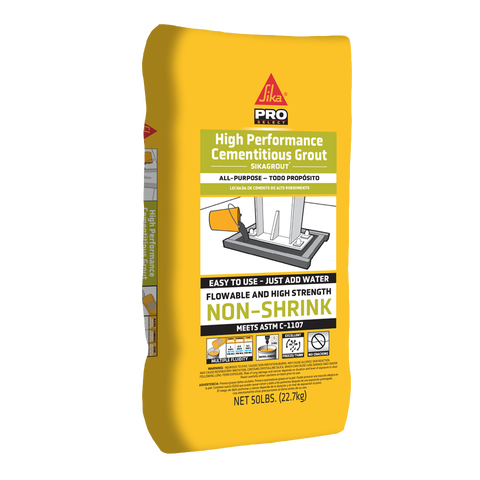

Packaging

50 lb. (22.7 kg) multi-wall bags; 36 bags/pallet

Color

Concrete gray

Product Details

Sustainability / Certifications / Approvals

APPROVALS / STANDARDS

  • Meets ASTM C-1107
  • Shows positive expansion when tested in accordance with ASTM C-827
  • SikaGrout® is USDA-approved
Product Information

Chemical Base

Cement, selected fillers and aggregate, special additives

Shelf Life

12 months from date of production if stored properly in original, unopened and undamaged sealed packaging

Storage Conditions

Store dry at 40-90°F (4-35°C). Protect from moisture. If damp, discard material
Technical Information

Compressive Strength

Plastic

Flowable

Fluid

1 day

4,500

(31 MPa)

3,500

(24.1 MPa)

2,700

(18.6 MPa)

7 day

6,100

(42 MPa)

5,700

(39.3 MPa)

5,500

(37.9 MPa)

28 day

7,500

(51.7 MPa)

6,200

(42.7 MPa)

5,800

(40 MPa)

Flexural Strength

Plastic

Flowable

Fluid

28 day

1,400

(9.6 MPa)

1,200

(8.2 MPa)

1,000

(6.8 MPa)

Expansion

Plastic

Flowable

Fluid

28 day+0.021 %+0.056 %+0.027 %

Tensile Adhesion Strength

Plastic

Flowable

Fluid

28 days

2,000 psi

(13.7 MPa)

1,900 psi

(13.1 MPa)

1,900 psi

(13.1 MPa)

Splitting tensile strength

Plastic

Flowable

Fluid

28 day

600

(4.1 MPa)

575

(3.9 MPa)

500

(3.4 MPa)

Application

Application Information

Mixing Ratio

Plastic

Flowable

Fluid

6 pints

6.5 pints

8.5 pints

Layer Thickness

Minimum

Maximum

½ inch (12.7 mm)

4 inch (101.6 mm)

Thicker applications can be achieved. Please contact Sika® Technical Services Department for further information.

Product Temperature

65-75 °F (18-24 °C)

Ambient Air Temperature

> 45 °F (7 °C)

Substrate Temperature

> 45 °F (7 °C)

Mixing

3 minutes with low speed (< 500 rpm) hand drill mixer until lump free

Pot Life

~15 minutes

NOTE: The temperate will affect the pot life, application temperatures:

  • Above 73 °F (23 °C) will reduce the pot life and flow

  • Below 73 °F (23 °C) will extend the pot life and flow

Flowability

Plastic1

Flowable1

Fluid2

100-124%

124-145%

20-40 sec

Set Time

Plastic

Flowable

Fluid

Initial

3.5-4.5 hr

4.0-5.0 hr

4.5-6.5 hr

Final

4.5-5.5 hr

5.5-6.5 hr

6.0-8.0 hr
Consumption

Coverage

Approximately 0.44 cu. ft./bag at high flow (fluid consistency)

(Coverage figured do nto include allowance for surface profile and porosity or material wastage)

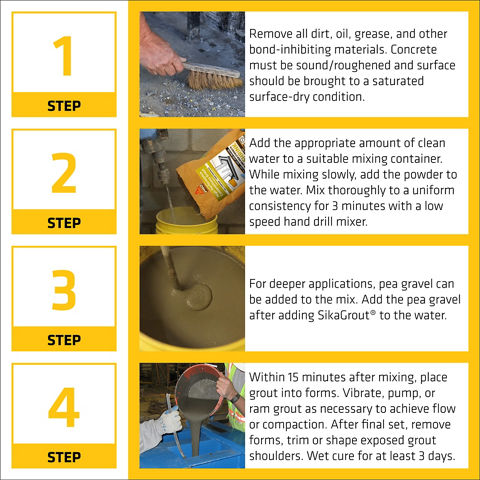

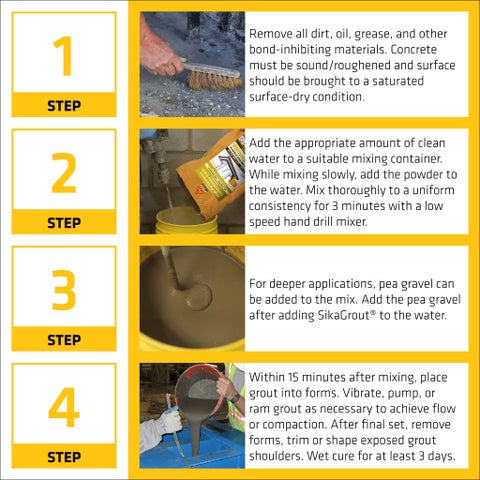

Application steps

MIXING

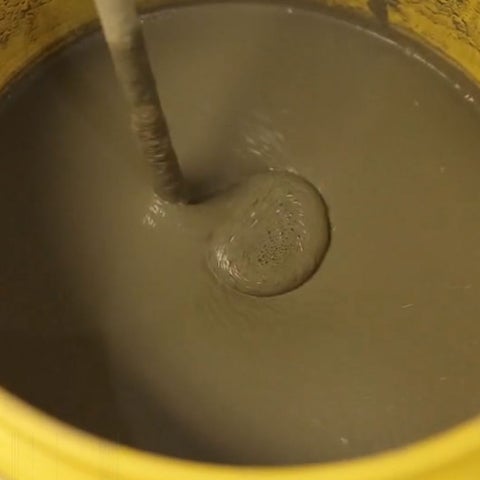

  • Mixing can be done manually or mechanically.
  • Add the appropriate amount of clean water for desired flow to a suitable mixing container.

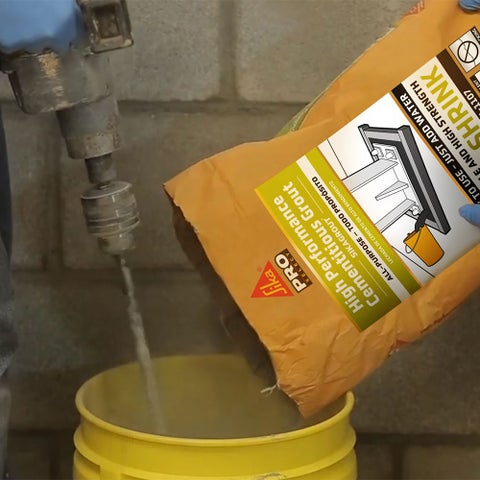

  • While mixing slowly, add the powder to the water.
  • If mixing mechanically, mix thoroughly for 3 minutes with a low-speed (< 500 rpm) drill hand drill mixer to avoid entraining too much air.
  • Mix to a uniform consistency for 3 minutes.
  • Make sure all forming, mixing, placing, and clean-up materials are on hand.
  • Ambient and material temperature should be as close as possible to 70°F (21°C). If higher, use cold water; if colder, use warm water.



Extension With Aggregates



  • For deeper applications, (plastic and flowable consistencies only) 25 lbs. (11.3 L) of 3/8 in. (9.5 mm) pea gravel can be added to the mix of water and SikaGrout®.
  • The aggregate must be nonreactive (reference ASTM C-1260, C-227, and C-289), clean, well graded, saturated surface dry, have low absorption and high density, and comply with ASTM C-33 size number 8 per Table 2.
  • Add the pea gravel after adding SikaGrout® to the water.


APPLICATION

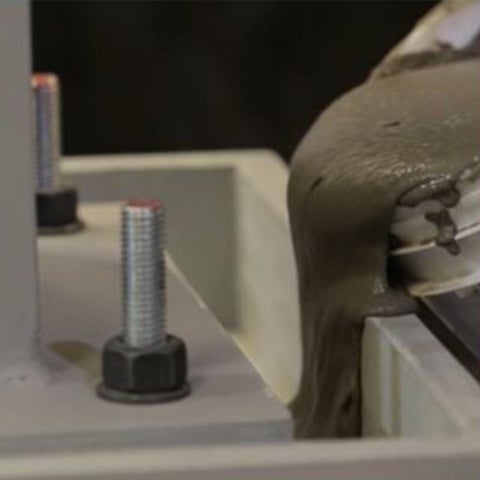

  • Within 15 minutes after mixing, place grout into forms in normal manner to avoid air entrapment.
  • Vibrate, pump, or ram grout as necessary to achieve flow or compaction. SikaGrout® must be confined in either the horizontal or vertical direction leaving minimum exposed surface.
  • SikaGrout® is an excellent grout for pumping, even at high flow.
  • For pump recommendations, contact Technical Service.
  • After grout has achieved final set, remove forms, trim or shape exposed grout shoulders to designed profile.

CURING TREATMENT

Wet cure for a minimum of 3 days or apply a curing compound which complies with ASTM C-309 on exposed surfaces.

CLEANING OF TOOLS

Clean all tools and application equipment with water immediately after use.
