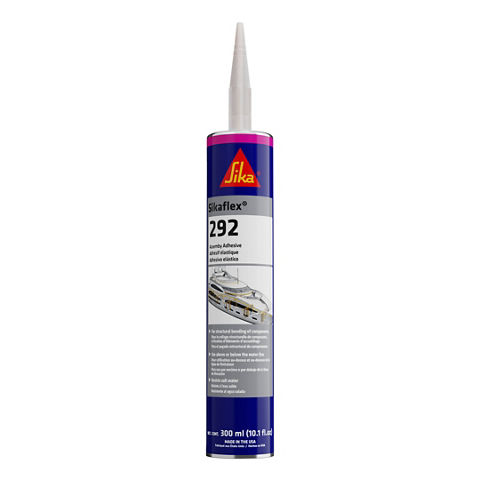

Sikaflex®-292
Sikaflex®-292 is a non-sag 1-component polyurethane adhesive of thixotropic, paste-like consistency which cures on exposure to atmospheric moisture. It exhibits excellent adhesive properties and a good mechanical strength.
- Multi-purpose sealant and adhesive
- Good gap-filling properties
- Can be painted
- Bonds well to a wide variety of substrates
PRODUCT BENEFITS
- Multi-purpose sealant and adhesive
- Good gap-filling properties
- Can be painted
- Bonds well to a wide variety of substrates
Usage
Sikaflex®-292 is suitable for structural joints in marine constructions which will be subjected to high dynamic stresses. It is suitable to bond metals, particularly aluminium (including anodized finishes), metal primers and paint coat-ings (2-component systems), or ceramic materials, plastics such as GRP (unsaturated polyester resin), ABS, etc. Seek manufacturer’s advice and perform tests on original substrates before using Sikaflex®-292 on materials prone to stress cracking. This product is suitable for experienced professional users only. Tests with actual substrates and conditions have to be performed ensuring adhesion and material compatibility.Packaging
| Cartridge | 300 ml |
Product Details
| Chemical base | 1-component polyurethane | |
| Color (CQP001-1) | White | |
| Cure mechanism | Moisture-curing | |
| Density (uncured) | 1.20 kg/l | |
| Non-sag properties (CQP061-1) | Good | |
| Application temperature | 10 ─ 35 °C (50 ─ 95 °F) | |
| Skin time (CQP019-1) | 40 minutes A | |
| Open time (CQP526-1) | 35 minutes A | |
| Curing speed (CQP049-1) | (see diagram 1) | |
| Shrinkage (CQP014-1) | 6 % | |
| Shore A hardness (CQP023-1 / ISO 48-4) | 50 | |
| Tensile strength (CQP036-1 / ISO 527) | 3 MPa (430 psi) | |
| Elongation at break (CQP036-1 / ISO 527) | 400 % | |
| Tear propagation resistance (CQP045-1 / ISO 34) | 7 N/mm (40 pli) | |
| Tensile lap-shear strength (CQP046-1 / ISO 4587) | 2 MPa (290 psi) | |
| Service temperature (CQP509-1 / CQP513-1) | 4 hours 1 hour | -40 ─ 90 °C (-40 ─ 194 °F) 130 °C (266 °F) 150 °C (302 °F) |
| Shelf life | 9 months B |
| CQP = Corporate Quality Procedure | A) 23 °C (73 °F) / 50 % r. h. | B) storage below 25 °C (77 °F) |
CURE MECHANISM
Sikaflex®-292 cures by reaction with atmospheric moisture. At low temperatures the water content of the air is generally lower and the curing reaction proceeds somewhat slower (see diagram 1).
Diagram 1: Curing speed for Sikaflex®-292
CHEMICAL RESISTANCE
Sikaflex®-292 is generally resistant to fresh water, seawater, diluted acids and diluted caustic solutions; temporarily resistant to fuels, mineral oils, vegetable and animal fats and oils; not resistant to organic acids, glycolic alcohol, concentrated mineral acids and caustic solutions or solvents.
Application
Surface Preparation
Surfaces must be clean, dry and free from grease, oil, dust and contaminants. Surface treatment depends on the specific nature of the substrates and is crucial for a long lasting bond. Suggestions for surface preparation may be found on the current edition of the appropriate Sika® Pre-treatment Chart. Consider that these suggestions are based on experience and have in any case to be verified by tests on original substrates.
Application
Sikaflex®-292 can be processed at temperatures (climate and product) between 10 °C and 35 °C (50 °F and 95 °F) but changes in reactivity and application properties have to be considered. The optimum temperature for substrate and sealant is between 15 °C and 25 °C (59 °F and 77 °F).
Consider that the viscosity will increase at low temperature. For easy application, condition the adhesive at ambient temperature prior to use.
To ensure a uniform thickness of the bondline it is recommended to apply the adhesive in form of a triangular bead (see figure 1).
Figure 1: Recommended bead configuration
Sikaflex®-292 can be processed with manual, pneumatic or electric driven piston guns.
The open time is significantly shorter in hot and humid climate. The parts must always be installed within the open time. Never join bonding parts if the adhesive has built a skin.
Tooling and finishing
Tooling and finishing must be carried out within the skin time of the product. It is recommended using Sika® Slick. Other finishing agents must be tested for suitability and compatibility prior the use.
Removal
Uncured Sikaflex®-292 may be removed from tools and equipment with Sika® Remover-208 or another suitable solvent. Once cured, the material can only be removed mechanically.
Hands and exposed skin have to be washed immediately using a suitable industrial hand cleaner and water.
Do not use solvents on skin.
