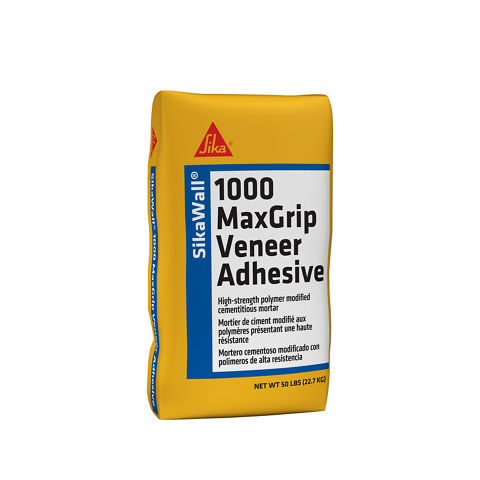

SikaWall®-1000 MaxGrip Veneer Adhesive

SikaWall®-1000 MaxGrip Veneer Adhesive

High-strength specially formulated setting bed mortar

Dry-mix polymer-modified setting bed mortar that contains Portland cement.

  • Freeze-thaw stable bond
  • Easy to apply, only mix with water.
  • High compressive strength (at 28 days).
  • Suitable for commercial and residential installations.
  • One component, easy to apply formulation that meets low VOC requirements in all 50 states.
Product Data Sheet Show all documents

Usage

For use to adhere thin brick veneer, natural and manufactured stone, and tile with Sika Facades adhered CI drainage systems, non insulated stucco and cement board systems. Approved over Sika Facades air/water-resistive barriers on masonry units and concrete. Note: Use only for above grade vertical walls. Not for use below grade or on surfaces subject to continuous or intermittent immersion in water or hydrostatic pressure.

Advantages

  • Freeze-thaw stable bond
  • Easy to apply, only mix with water.
  • High compressive strength (at 28 days).
  • Suitable for commercial and residential installations.
  • One component, easy to apply formulation that meets low VOC requirements in all 50 states.

Packaging

50 lbs per bag (22.6 kg.)

Color

Grey

Product Details

Product Information

Shelf Life

One (1) year when unopened and stored as directed.

Storage Conditions

  • Store materials in a cool, dry place. Protect from extreme heat and direct sunlight.
  • Protect bagged materials from moisture during transportation and storage.
  • Protect materials during transportation to avoid physical damage.
  • Do not stack pallets.

Volatile organic compound (VOC) content

0 g/l, or 0 lbs/gal less water and exempt solvents.
Technical Information

Compressive Strength

MethodCriteria

Results

ASTM C109

Report Value

4000 psi

Shear Strength

ANSI A118.4

28 days ≥ 200 psi
After 7 day water immersion ≥ 150 psi

565 psi at 28 days
306 psi after 7 day water immersion

ANSI A118.15

7 days ≥ 300 psi
28 days ≥ 400 psi

After 7 days water immersion
≥ 200 psi

487 psi at 7 days
565 psi at 28 days
306 psi after 7 day water immersion

Slant Shear Strength

ASTM C482

Minimum 50 psi

130 psi - Directly to molded cement mortar bed specified in ASTM C482
146 psi average to standard and dry base coats molded cement mortar bed specified in ASTM C482.

ASTM C273

Full assembly test for EPS Strength

Core shear modulus of the EPS is equal to or greater than 280 psi. The 2% offset shear strength strength is equal to or
greater than 12 psi

Shear modulus 281.43 psi; offset shear 13.6 psi

Freeze-Thaw Stability

ASTM C666

Procedure A, cycles rapid freezing and thawing in water. 40°F-0°F-40°F
in not less than 2 hrs and not more than 5 hrs; modified using full IVS composite in place
of concrete beam

>100 cycles, no failure
of MaxGrip

Application

Application Information

Substrates

  • Portland Cement Plaster (Stucco) scratch or brown coat complying with ASTMC 926
  • PermaBase® Cement Board and other cement boards conforming with ASTM C1325 (Type A - exterior)
  • Poured and precast concrete/unit masonry coated with Sika Facades air/water-resisitve barrier
  • Poured and precast concrete/unit masonry coated with Sika ThoroSeal 581

Pot Life

Working time is 1-2 hours after water has been added. Open time is affected by humidity,  temperature, and other environmental conditions.

Cure Time

  • Allow veneer adhesive to cure for 24-hours before applying pointing mortar (if used).
  • Protect from freezing for minimum of 72-hours after installation.
  • Do not apply if rain is forecast within the next 24-hours.
Consumption

Coverage

As Skim Coat: 90 ft2 (8.4m2)
Think Brick Adhesive: 34-46 ft2 (3.1-4.3m2) at 3/16"-1/4"
Stone Adhesive: 23-34 ft2 (2.1-3.1m2) at 1/4"-3/8"

Coverage rates will vary based on type of application. Profile on back of veneer may also affect coverage rates.
