SikaWall®-9460 Drainage Mat

SikaWall®-9460 Drainage Mat

 Drainage and ventilation material.

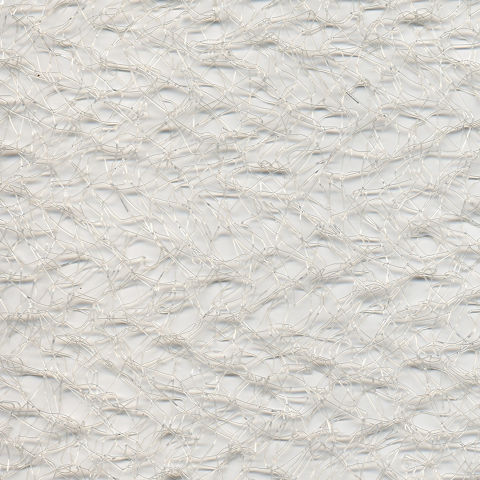

A composite product consisting of a durable polymer entangled filament core.

  • Open design creates a continuous capillary break and channel for moisture drainage.
  • Simple and quick to install. Easier and more cost effective than traditional furring strip methods.
  • Lightweight and easy to handle.
Product Data Sheet Show all documents

Usage

For use with mechanically fastened drainage EIFS, insulated cement plaster stucco, and cement board systems to provide an avenue for flow and drainage of incidental moisture from the wall assembly.

Advantages

  • Open design creates a continuous capillary break and channel for moisture drainage.
  • Simple and quick to install. Easier and more cost effective than traditional furring strip methods.
  • Lightweight and easy to handle.

Packaging

  • 39" x 61.5' roll (99cm x 18.7m)
  • 4.9" x 100' roll (12cm x 30m)

Color

Blue

Product Details

Product Information

Chemical Base

Polypropylene

Shelf Life

Stored Indoors: no limit.

 Stored Outdoors: 30 days.

Storage Conditions

Store in an upright position in a cool, dry place protected from exposure to moisture. Protect from extreme heat and direct sunlight.

Thickness

1/4" (6.3mm)

Weight

ASTM D 5261/D6566

11.25 oz./sq. yd.
Technical Information

UV Exposure

30 Days

Compression resistance

ASTM D6364

<10% at 100 psf

Application

Consumption

Coverage

  • 39" - 200 ft2
  • 4.9" - 100 LF
