SikaWall®-9000 PermaLath® 1000
SikaWall®-9000 PermaLath® 1000
SikaWall®-9000 PermaLath® 1000
SikaWall®-9000 PermaLath® 1000

SikaWall®-9000 PermaLath® 1000

Glass fiber lath for stucco embedment.

Open weave, three-dimensional, self-furred, nominal 1/4” (6.3mm) thick glass fiber reinforcing lath designed for use with SikaWall stucco base, other cementitious exterior wall coatings complying with ICC-ES AC-11 or with field mix exterior cement plaster conforming to ASTM C926 in “scratch and brown” applications. Listed in CCRR 0249. Complies with the performance requirements of ASTM C1788 (per the test methods in ASTM C1764) and the installation requirements of ASTM C1787. United States. Patents 7,625,827 and 7,902,092.

  • Non-metallic.
  • Pliable, with no sharp edges making it easier and safer to handle and cut.
  • Non-directional and can be applied vertically or horizontally.
  • Wide rolls allow for fewer overlaps giving better coverage.
  • Three-dimensional profile which is self-furring. Reliable mechanical key using traditional fastening procedures.
  • Alkali resistant giving long-term durability and performance.

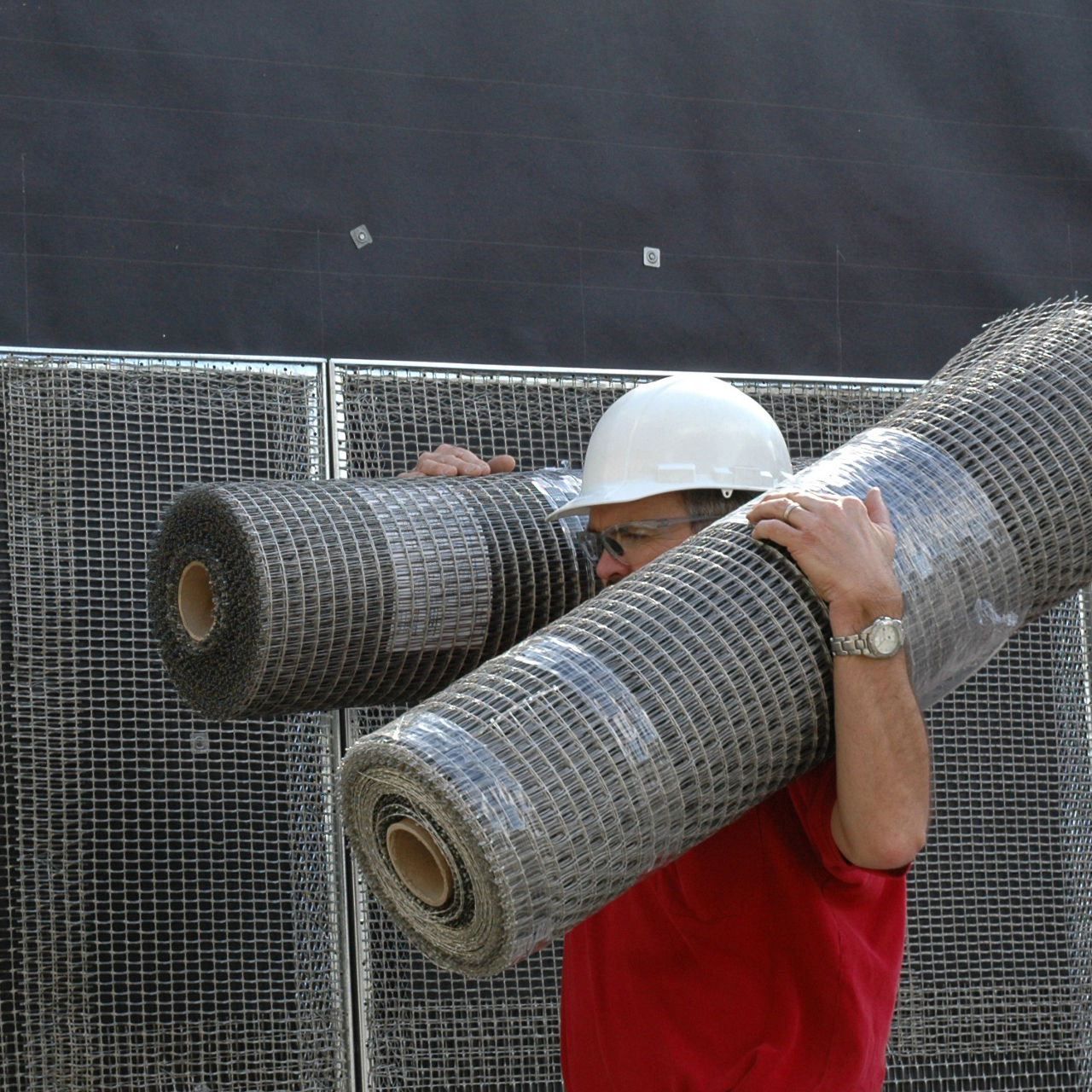

  • Packaged in light-weight rolls to allow for faster application time resulting in labor savings.
Product Data Sheet Show all documents

Usage

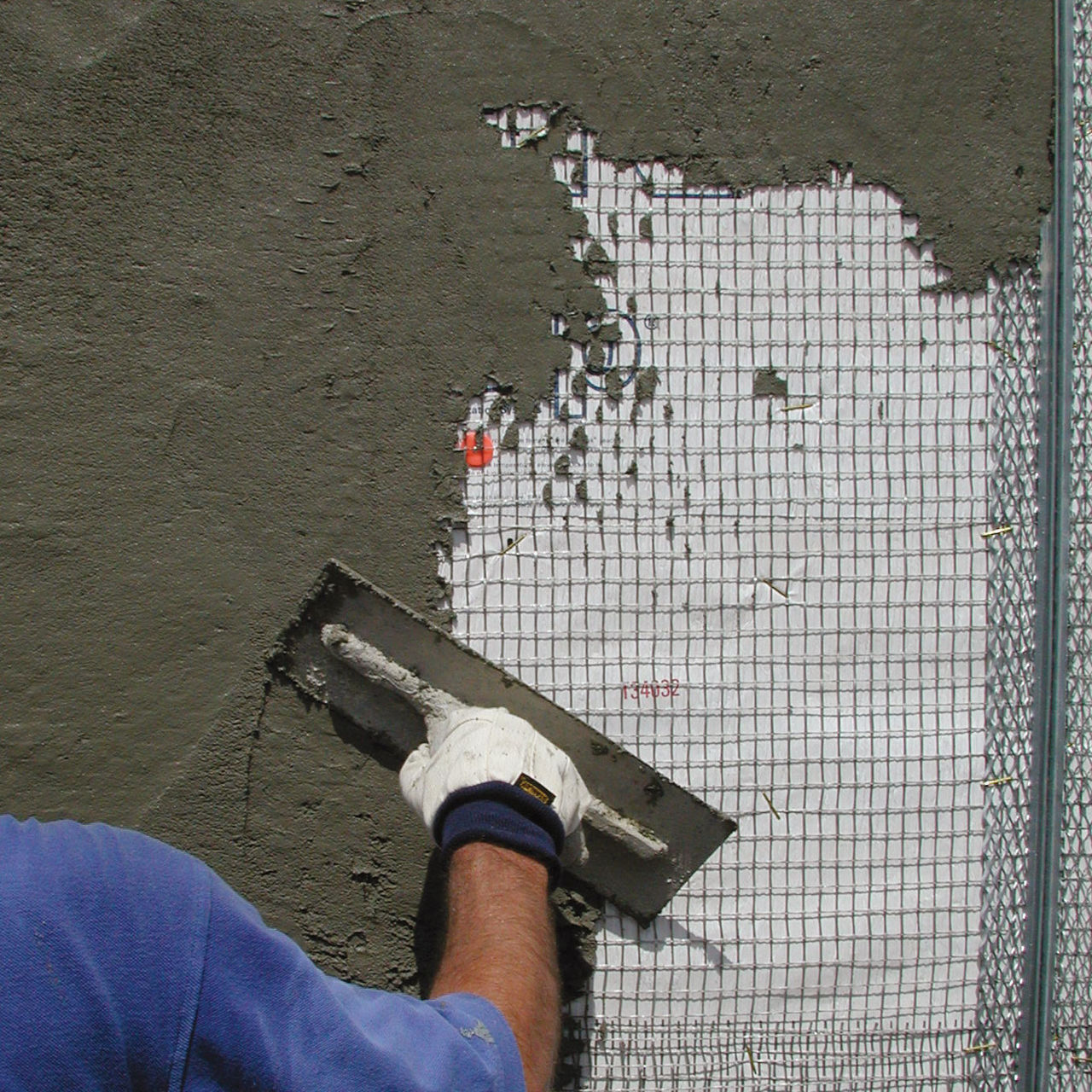

A component of a 1/2”-7/8” (13mm-22mm) thick cementitious exterior wall coating application of exterior Portland cement plaster (traditional stucco) that provides keying and continuous reinforcement for stucco used on vertical wall applications with solid backing. May also be used as a mortar base for lightweight veneer-facing products such as precast stone veneer (ASTM C1780).   Note: Not for use on soffits or open framing.

Advantages

  • Non-metallic.
  • Pliable, with no sharp edges making it easier and safer to handle and cut.
  • Non-directional and can be applied vertically or horizontally.
  • Wide rolls allow for fewer overlaps giving better coverage.
  • Three-dimensional profile which is self-furring. Reliable mechanical key using traditional fastening procedures.
  • Alkali resistant giving long-term durability and performance.
  • Packaged in light-weight rolls to allow for faster application time resulting in labor savings.

Packaging

39" x 150' roll in a poly bag

31 lbs (14 kg) per roll

Color

Grey

Product Details

Product Information

Shelf Life

Two (2) years when properly stored in original container.

Storage Conditions

  • Protect during transportation and installation to avoid physical damage.
  • Store in an upright position in a cool, dry place protected from exposure to moisture. Protect from extreme heat and direct sunlight.

Weight

8.8 oz/yard (294 g/m ) ±5%
Technical Information

Substrate

Poured concrete/unit masonry; ASTM C1177 type sheathings, including DensGlass™ or DensElement exterior sheathing, eXP™ sheathing, GlasRoc® sheathing, Securock™ glass-mat sheathing, Weather Defense TM Platinum sheathing, GreenGlass® sheathing; PermaBase™ cement-board and other cement-boards (ASTM C1325 Type A Exterior); Untreated Exposure I or exterior plywood sheathing (grade C-D or better), Untreated Exposure I OSB, Zip Sheathing, Fire Treated wood sheathing; Pyro-Guard® and Dricon® plywood and FlameBlock® OSB; gypsum sheathing (ASTM C79/ASTM C1396).

Tensile Strength

METHODCRITERIA RESULT

ASTM E2098

Greater than 120 pli (21 dN/CM) Retained Tensile Strength

Pass

Tensile/Yield Strength (Lab Test)

Report Value>300 lbs/in in both directions

Resistance to fire

Non-Combustible

ASTM E136 (IBC Section 7.3.5.2)



Vertical Tube Furnace at 750°C



Pass

Design Values

Embedment

ASTM C1788 Section 3.3



Minimum ¼” Embedment



Pass

Design Considerations

Attachment

ASTM C1788 Section 3.2.3



>12 lbs. Cementitious Exterior Wall Coatings
>18 lbs. stucco
>48 lbs. stone veneer



Pass

Miami Dade Building Code Compliance

TAS 201, 202, 203



Platinum CI Stucco Ultra System Reports: 21-0517.07, 21-0517.08, 21-0517.12 & 21-0517.13

Softening point

ASTM C338

Minimum 750°F (399°C)

Pass

Application

Consumption

Coverage

487 ft2 (45 m2) per roll
