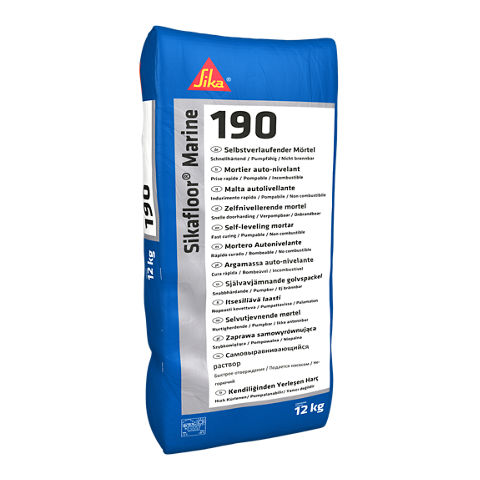

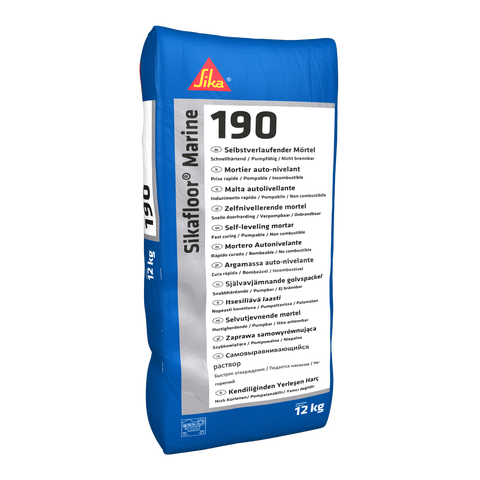

Sikafloor® Marine-190

Sikafloor® Marine-190

Self-leveling primary deck covering for interior decks

Sikafloor® Marine-190 is a 1-component self-leveling mortar based on polymer modified cement. Sikafloor® Marine-190 is tested according to FTP Code system and approved according to IMO Marine Equipment Directives.

  • Fast setting
  • Can be pumped
  • Non combustible
  • One component, ready to mix
  • Easily applicable

Sikafloor® Marine-190
Product Data Sheet Safety Data Sheet Show all documents

PRODUCT BENEFITS

  • Fast setting
  • Can be pumped
  • Non combustible
  • One component, ready to mix
  • Easily applicable


Usage

Sikafloor® Marine-190 is applied on interior decks, to level the surface prior to the application of deck finishing materials such as: carpets, tiles, parquet, rubber and vinyl. It is suitable for application in dry and wet accommodation areas. This product is suitable for experienced professional users only. Tests with actual substrates and conditions have to be performed ensuring adhesion and material compatibility.

Packaging

Bag

25 kg

Product Details

Typical Product Data
Chemical base

Polymer modified cement mortar

Color

Grey

Cure mechanism

Hydraulic

Density

mixed

cured

2 kg/l

1.8 kg/l

Mixing ratio

per 25 kg bag

5.3 ─ 5.8 litres

Substrate temperature

5 ─ 30 °C

Application thickness

max.

3 ─ 25 mm

Coverage

per 25 kg bag at 1 mm layer thickness

13 m2

Working time (CQP599-9)

20 minutes A

Ready to walk on (CQP600-3)

depending on humidity and ventilation

2 hours A

Compressive strength (CQP599-2)

33 MPa B

Flexural strength (CQP599-1)

5 MPa B

Modulus of elasticity in compression (CQP599-6 / EN 13412)

17 GPa B

Linear shrinkage (CQP599-5)

0.03 % B

Shelf life

9 months C

CQP = Corporate Quality Procedure

A) 23 °C / 50 % r. h.

B) after 28 days

C) stored in a dry, cool place below 25 °C
Technical Information

CURE MECHANISM

Sikafloor® Marine-190 cures by way of hydraulic curing.

Application

Application Information

Surface Preparation

For leveling applications, the surface has to be clean, free from dust, grease, oils and other substances, which may impair adhesion. Rust has to be removed with a steel brush or other appropriate means, followed by vacuum cleaning.

The surface has to be primed with Sikafloor® Marine Primer C using a long hair roller. After drying of the Sikafloor® Marine Primer C, Sikafloor® Marine-190 may be applied.
For wet areas the surface has to be treated with a water resistant membrane (e.g. Sikafloor® Marine Elastic).
Sikafloor® Marine-190 applications on aluminum or zinc rich shop primer coated decks, require a tie coat of SikaCor® ZP Primer or another suitable tie coat prior the priming step with Sikafloor® Marine Primer C.

Application

Apply the mortar with a steel board or a straight edge. Sikafloor® Marine-190 can also be applied by pinrake.

Sikafloor® Marine-190 has to be applied within 20 minutes after mixing. At temperatures above 30 °C the open time will be reduced to 10 minutes or less.

For advice on selecting and setting up a suitable pump system, contact the System Engineering Department of Sika Industry.



Curing

After application, the finished areas have to be protected against direct heat (e.g. cutting or welding from beneath), sunlight and draught during the curing process for at least 12 hours.

Before Sikafloor® Marine-190 is covered with dense materials such as vinyl, epoxy or polyurethane coatings, etc., ensure that the remaining moisture level is below 4 %.
Test procedure to determine the dryness (according ASTM D 4263): put a PE-plastic foil 1 m x 1 m on the surface of the applied mortar floor, tape the perimeter and leave for one day. The curing is complete if there is no water condensation on the foil or a visible color difference between covered and uncovered surface.

Removal

Excess material can best be removed before curing with a trowel wipe or water.

Fresh Sikafloor® Marine-190 may be removed from tools and equipment with water. Once cured, the material can only be removed mechanically.

Exposed hands and skin shall be washed immediately with water. Use a suitable skin protection hand cream.

Application Limits

For applications on sloping surfaces > 1 % contact the Technical Department of Sika Industry.
