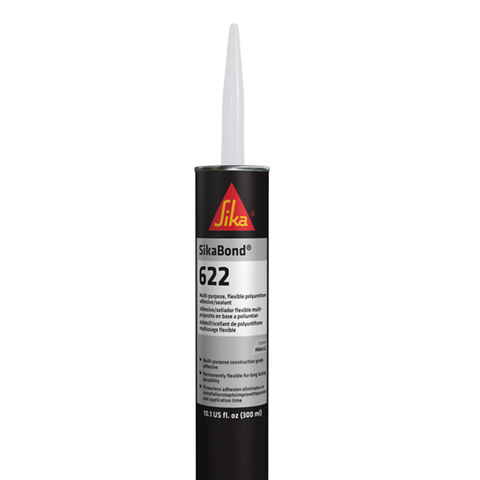

SikaBond®-622
(formerly MWeld 622)
MULTI-PURPOSE, FLEXIBLE POLYURETHANE ADHESIVE/SEALANT
0.0 (0)
SikaBond®-622 is a polyurethane-based, one-component, moisture-curing adhesive/sealant. It maintains permanent flexibility with a high bond strength that provides outstanding durability.
- Permanently flexible for long-lasting durability
- Compatible with a variety of paints to achieve desired aesthetic performance
- Primerless adhesion eliminates an installation step to improve the process and application time
- Low VOC for use in all regions
Usage
- Multi-purpose construction-grade adhesive
- Various truck, bus, and trailer assemblies
- Railcar and cargo container assemblies
- Interior and exterior
- Concrete
- Masonry
- Wood
- Clay & concrete roof tiles
- Aluminum
Advantages
- Permanently flexible for long-lasting durability
- Compatible with a variety of paints to achieve desired aesthetic performance
- Primerless adhesion eliminates an installation step to improve the process and application time
- Low VOC for use in all regions
Packaging
- 300 mL cartridges, 12 cartridges per case
- 20 oz. sausages, 20 sausages per case
Color
White, black, bronze and aluminum gray. For special orders of other colors, contact Customer Service.
Product Details
APPROVALS / STANDARDS
- ASTM C 557-73
- Federal Specification TT-S-00230C, Type II, Class A
- ASTM C 920-87, Type S, Grade NS, Class 25, Use NT, M and A
Chemical Base
SikaBond®-622 is a multi-purpose polyurethane flexible adhesive/sealant.
Base: Synthetic rubber-resin
Shelf Life
- Cartridges: 1 year when stored in unopened containers at 75 °F (24 °C) and 50% relative humidity.
- Sausages: 1 year when stored in unopened containers at 75 °F (24 °C) and 50% relative humidity.
Storage Conditions
Protect unopened containers from heat and direct sunshine. In cool or cold weather, store containers at room temperature for at least 24 hours before using.
Density
9.85 ±0.1 lbs per gallon | (ASTM D 1475) |
Solid content by mass
80 ±2% | (ASTM D 1259) |
Viscosity
2,800 ±500 poise (trowelable) | (ASTM D 2393) |
Shore A Hardness
25–30 | (ASTM C 661) |
Tensile Strength
350 psi | (ASTM D 412) |
Elongation at break
800% | (ASTM D 412) |
Movement Capability
±25% | (ASTM C 719) |
Bond Durability
±25% no failures on glass, aluminum, and concrete | (ASTM C 719) |
Shear Strength
Lap Shear
Wet lumber | 225 psi |
Dry lumber | 250 psi |
Plywood/concrete | 140 psi |
Plywood/drywall | 160 psi |
Plywood/aluminum | 100 psi |
Service Temperature
-40°F to 200°F (-40°C to 93°C)
Resistance to Weathering
No elastomeric property change after 3,000 hours | (Atlas 6500 xenon arc model) |
Design Considerations
Exterior Perimeter Sealing
Pass | (AAMA 808.3) |
Application
Extrusion rate
Extrudability
3 seconds | (ASTM C 603) |
Sagging
Rheology
No vertical sag at 120 °F | (ASTM C 639) |
Open Time
20 ±5 minutes, depending on temperature and humidity
Curing Rate
- 16 hours: 100 °F (38 °C), 95% relative humidity
- 1 day: 70 °F (21 °C), 55% relative humidity
- 3 days: 40 °F (4 °C), 50% relative humidity
- Cure through times are based on a 1/4" (6 mm) diameter bead.
Tack Free Time
Passes maximum 72 hrs | (ASTM C 679) |
Coverage
A 300 mL cartridge seals 24 lineal feet in 1/4" by 1/4" (6 by 6 mm) joint
NOTES ON INSTALLATION
- Do not apply over freshly treated wood; it must have weathered for at least 6 months.
- SikaBond®-622 should not come into contact with oil-based caulking, silicone sealants, polysulfides, or fillers impregnated with oil, asphalt, or tar.
- Do not use in joints deeper than 1/2".
- SikaBond®-622 is not recommended for continuous water immersion.
- Make certain the most current versions of the product data sheet and SDS are being used.
- Proper application is the responsibility of the user. Field visits by Sika personnel are for the purpose of making technical recommendations only and not for supervising or providing quality control on the jobsite.
SUBSTRATE PREPARATION
- Surfaces must be dry, clean, and free of dirt, moisture, loose particles, oil, grease, asphalt, tar, paint, wax, rust, waterproofing, or other contaminants.
- On metal surfaces, remove scale, rust, or other coatings to expose a bright white surface. Aluminum window frames are frequently coated with a clear lacquer that must be removed before the application of SikaBond®-622.
- Clean concrete, stone, and other masonry surfaces by grinding, sandblasting, or wire brushing. Expose a sound surface free of contamination and laitance.
- Wood surfaces must be clean and sound. Scrape away any paint to bare wood.
APPLICATION
- SikaBond®-622 bonds well to a variety of substrates and is ideally suited for use in interior/exterior joints, waterproofing overlap seams, fascia, and other structural components. SikaBond®-622 remains permanently elastic for long-lasting performance.
- Surface temperatures above 40 °F (4 °C) are recommended during application. SikaBond®-622 can be applied below freezing temperatures only if substrates are completely dry, free of moisture, and clean.
- SikaBond®-622 comes ready to use. Do not open cartridges until preparatory work has been completed. Trim nozzle to desired size opening. Place cartridge in dispensing gun and puncture seal inside nozzle.
- Fill joints from the deepest point to the surface by holding a properly sized nozzle against the back of the joint.
- Dry tooling is recommended.
CLEANING OF TOOLS
Immediately after use, clean the equipment with the appropriate solvent. Use proper precautions when handling solvents. Cured sealant can be removed by cutting with a sharp-edged tool. Thin films by abrading.
