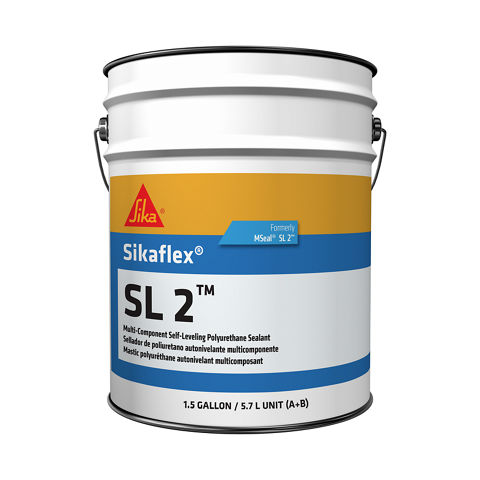

Sikaflex® SL 2
(formerly MSeal SL 2)
MULTI-COMPONENT SELF-LEVELING POLYURETHANE SEALANT
0.0 (0)
Sikaflex® SL 2 is a multi-component, self-leveling, elastomeric polyurethane sealant that is mixed and poured in place. When cured, it forms a tough, resilient joint seal that resists penetration and abrasion and remains flexible when exposed to weather and aging.
- Abrasion-resistant to help handle pedestrian and vehicular traffic
- Joint movement capability ± 25% provides excellent flexibility for keeping moving joints weathertight
- Weather resistant, producing long-lasting weathertight seals
- Easy to gun and tool, speeding up application and making neater joints
- No primer is required for most construction materials, lowering installation costs
- The wide temperature-application range makes Sikaflex® SL 2 suitable for all climates
- Suitable for water immersion with documented performance in wet areas
- Chemical cure allows for faster turnaround time
- Bulk packaging results in less waste
- Long pot life offers extended working time
- Formulated to withstand pedestrian and vehicular traffic
Usage
- Horizontal
- Interior and exterior
- Expansion joints
- Control joints
- Pavers
- Plaza decks
- Industrial floors
- Driveways/garages
- Sidewalks
- Decks
- Parking structures
- Pitch pans
- Concrete
- Metal
Advantages
- Abrasion-resistant to help handle pedestrian and vehicular traffic
- Joint movement capability ± 25% provides excellent flexibility for keeping moving joints weathertight
- Weather resistant, producing long-lasting weathertight seals
- Easy to gun and tool, speeding up application and making neater joints
- No primer is required for most construction materials, lowering installation costs
- The wide temperature-application range makes Sikaflex® SL 2 suitable for all climates
- Suitable for water immersion with documented performance in wet areas
- Chemical cure allows for faster turnaround time
- Bulk packaging results in less waste
- Long pot life offers extended working time
- Formulated to withstand pedestrian and vehicular traffic
Packaging
- 1.5 gallon units in 2 gallon (5.67 L) pails
- 3 gallon unit in 3.5 gallon (11.3 L) pails
Color
Limestone (Pre-pigmented) and Tint Base
Tint Base: 40 standard, stocked colors are available. Refer to the Popular Palette for Sealants and Waterproofing.
Custom matching can be done upon request.
Product Details
APPROVALS / STANDARDS
- ASTM C 920, Type M, Grade P, Class 25, Use T, NT, M, A, O*, and I
- Federal Specification TT-S-00227E, Type I, Class A
- Canadian Specification CAN/CGSB 19.24-M90, Classification MCG-1-40-B-L, No. 81031
- CFI accepted
*Refer to substrates in Uses
Chemical Base
Sikaflex® SL 2 is a multi-component polyurethane that cures by chemical reaction after proper mixing.
Shelf Life
15 months
Storage Conditions
Store in unopened containers in cool, clean, dry area out of direct sunlight. Elevated temperatures will shorten shelf life.
Shore Hardness
Grade | Shore A |
Self Leveling (SLV) | 35 ± 5 |
Slope Grade (SLG) | 30 ± 5 |
Tensile Strength
Grade | Tensile Strength |
Self Leveling (SLV) | 170 psi ( 0.9 MPa) |
Slope Grade (SLG) | 140 psi ( 1.0 MPa) |
Elongation
Grade | Elongation |
Self Leveling (SLV) | 600% |
Slope Grade (SLG) | 225% |
Shrinkage
None
Tear Strength
± 42 lbs/in | (ASTM C 624) |
Movement Capability
± 25 | (ASTM C 719) |
Low Temperature Bend
Passes | (Low-temperature flexibility -15°F (-26°C), ASTM C 793) |
Thermal Resistance
None | (Cracking and chalking after heat aging, ASTM C 792) |
Resistance to Weathering
Xenon arc; 250 hours | Passes |
Xenon arc; 2,000 hours | No surface cracking |
Service Temperature
-40° to 180°F (-40° to 82°C)
Joint Design
Joint Width and Sealant Depth
Joint Width, | Sealant Depth At midpoint, IN (MM) |
¼–½ (6–13) | ¼ (6) |
½–¾ (13–19) | ¼–3⁄8 (6–10) |
¾–1 (19–25) | 3⁄8–½ (10–13) |
1–2 (25–50) | ½ (13) |
Adhesion in peel
Passes | (ASTM C 794, On concrete) |
Color
No visible stain | (ASTM C 510) |
Application
Extrusion rate
Passes | (ASTM C 603) |
Pot Life
4 hrs. | 73° F (23° C) and 50% R.H. |
Cure Time
3 days | 73° F (23 ° C) and 50% R.H. |
Tack Free Time
< 24 hrs | (ASTM C 679) |
Flowability
Grade | Rheological (flow) |
Self Leveling (SLV) | Self-leveling |
Slope Grade (SLG) | Semi Self-Leveling |
Coverage
Linear Feet per Gallon
Width/Depth (In.) | 1/4 | 3/8 | 1/2 |
1/4 | 308 | - | - |
3/8 | 205 | - | - |
1/2 | 154 | - | - |
5/8 | 122 | 82 | - |
3/4 | - | 68 | 51 |
7/8 | - | 58 | 44 |
1 | - | 51 | 38 |
3/2 | - | - | 26 |
2 | - | - | 19 |
Meters per Liter
Width/Depth (mm) | 6 | 10 | 13 |
6 | 24.8 | ||
10 | 16.5 | ||
13 | 12.4 | ||
16 | 9.8 | 6.6 | |
19 | 5.5 | 4.1 | |
22 | 4.7 | 3.5 | |
25 | 4.1 | 3.0 | |
38 | 2.2 | ||
50 | 1.5 |
APPLICATION INSTRUCTIONS
- Do not allow Sikaflex® SL 2 sealants to come into contact with alcohol-based materials or solvents.
- Do not apply polyurethane sealants in the vicinity of uncured silicone sealants or uncured Sikaflex® HY 150.
- When Sikaflex® SL 2 is to be used in areas subject to continuous water immersion, cure for 14 days at 70 °F (23 °C). Allow longer cure time at lower temperatures. Always use Sika® Primer-429.
- Do not use it in swimming pools or other submerged conditions where the sealant will be exposed to strong oxidizers. Avoid submerged conditions where water temperatures will exceed 120 °F (58 °C).
- For slopes up to 15% use Sikaflex® SL 2 Slope Grade. For slopes over 15% use Sikaflex® NP 2 sealant.
- Backer rods, joint fillers, or bond breakers must be tight to the sides of the joint to prevent loss of sealant through the bottom.
- For joints subject to puncture by high heels or umbrella points, a stiffer or higher-density backer material is required. Cork or rigid non-impregnated cane-fiber joint fillers are suitable. Separate materials from the sealant by a non-adhering bond breaker (polyethylene tape).
- Do not use other caulks or sand as a bottom bed in a joint.
- Do not install when rain is expected before the sealant reaches the initial cure (about 12 hours).
- Units of Sikaflex® SL 2 are premeasured; do not use partial units.
- Sikaflex® SL 2 may yellow in the presence of unvented artificial heat; this is a surface phenomenon that does not affect sealant performance.
- Use only Sikaflex®-900 color packs intended for use with Sikaflex® SL 2.
- Proper application is the responsibility of the user. Field visits by Sika personnel are for the purpose of making technical recommendations only and not for supervising or providing quality control on the job site.
SUBSTRATE PREPARATION
Joints must be clean and dry. Joint surfaces must be structurally sound, fully cured, and free of all loose aggregate, paint, oil, grease, asphalt, wax, mastic compounds, waterproofing compounds, form-release materials, curing compounds, or any other contaminants.
New Concrete
Remove all loose material from joints by wire brushing. Sandblast surfaces in contact with form-release agents. Fresh concrete must be fully cured. Laitance must be removed by abrading.
Old Concrete
For previously sealed joints, remove all old material by mechanical means. If joint surfaces have absorbed oils, remove sufficient concrete to ensure a clean surface.
Priming
- For most applications, priming is not required; joints subject to periodic water immersion, however, must be primed with Sika® Primer-429. On surfaces other than concrete, conduct a test application to verify adhesion.
- Apply primer in a thin, uniform film. Avoid buildup of excess primer.
- Avoid applying primer beyond joint faces. To minimize the contamination of adjacent surfaces, apply masking tape before priming and remove before the sealant has begun to thicken and set.
- Allow approximately 15 – 30 minutes drying time before applying sealant (primer should be tack-free). Priming and sealing must be done on the same day.
MIXING
- Sikaflex® SL 2 is a multi-component system with a configuration of Part A, Part B, and a color pack. Pre-pigmented units do not use a color pack.
- Transfer the entire contents of Sikaflex®-900 pigment color pack into the Part A. Use a spatula or knife to remove all the pigment from the container. Continue mixing with a slow-speed drill and slotted paddle until the color is uniform. During the process, scrape the sides and bottom of the mixing container several times to obtain a complete mix.
- Transfer the entire content of Part B to pre-mixed Part A container using a spatula or margin trowel.
- Part B must be mixed thoroughly with pre-mixed Part A. Scrape the sides of the container to ensure complete mixing of mixed Parts A and B. With a slow-speed drill and a sealant mixing paddle, mix for 4–6 minutes. Keep the paddle blade below the surface of the sealant to avoid whipping air into the sealant.
NOTE:
- 1.5 gal unit kit use one Sikaflex®-900 pigment color pack
- 3.0 gal unit kit use two Sikaflex®-900 pigment color packs
APPLICATION
- All caulking and sealing should be performed when temperatures are above 40 °F (4 °C); any moisture or frost on surfaces will adversely affect adhesion.
- Fill joints from the bottom; avoid bridging the joint, which may form air voids.
- For large joints, the self-leveling grade may be poured directly from the can.
- For smaller joints and all slope-grade applications, fill the joint by flowing the sealant from a bulk-loading gun.
- Light tooling of the slope-grade sealant is recommended to smooth out ripples. On sloped surfaces, tool from the lowest point to the highest. Do not use soap or solvent.
Curing
Cure time will vary with humidity and temperature. Initial cure is within 24 hours and complete cure takes approximately 7 days. Allow 14-day cure at 70 °F (23 °C) before water immersion. Cure rates are dependent on temperature and humidity. Protect joint from dirt and traffic until cured.
CLEANING OF TOOLS
- Immediately after use and before the sealant has cured, clean equipment with SikaSwell®-990 or xylene.
- The cured sealant may be removed by cutting with a sharp-edged tool. Remove thin films by abrading.
