Product Data Sheet Show all documents

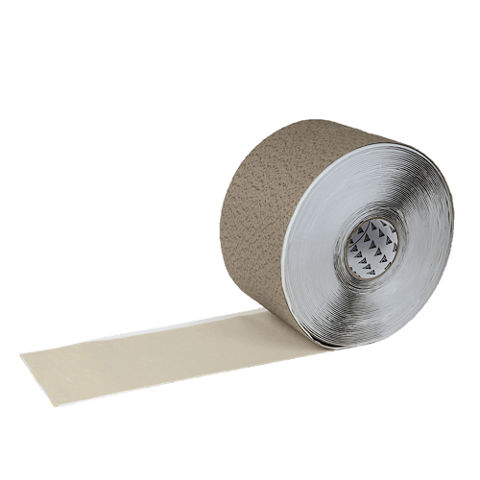

SikaProof® Tape A+ N

SELF-ADHESIVE TAPE FOR INTERNAL JOINTING AND DETAILING OF SIKAPROOF® A+ WATERPROOFING SYSTEM

SikaProof® Tape A+ N is a self-adhesive tape based on a polyacrylate adhesive with a carrier film and a release liner.

  • Fully and permanently bonded to the concrete structure
  • No lateral water underflow between the concrete structure and the membrane system
  • High adhesion and sealing capability in cold and damp conditions
  • Simple and fast to install
Product Data Sheet Show all documents

Usage

  • Sealing and bonding overlap joints, connections and details within the SikaProof® A+ system.


Advantages

  • Fully and permanently bonded to the concrete structure
  • No lateral water underflow between the concrete structure and the membrane system
  • High adhesion and sealing capability in cold and damp conditions
  • Simple and fast to install

Packaging

4 rolls packed in one cardboard box

Roll length

82 ft | 25 m

Roll width

4.7 (±0.2) in | 120 (±5) mm

Color

Top layer

Light grey hybrid bonding layer with yellow waterproofing layer

Bottom layer

Transparent polyacrylate adhesive covered with transparent release liner

Product Details

Product Information

Shelf Life

18 months from date of production

Storage Conditions

Product must be stored in original unopened and undamaged sealed packaging in dry conditions and temperatures between +40 °F (+5 °C) and +85 °F (+30 °C). Always refer to packaging.

Thickness

66 (+6 / -3) mils | 1.68 (+0.17 / -0.08) mm
System information

System Structure

SikaProof® Tape A+ N is a system component for internal jointing of the SikaProof® A+ system. For more detailed information, refer to Sika® Method Statement: SikaProof® A+ system

Application

Application Information

Ambient Air Temperature

Maximum

 +110 °F | +43 °C

Minimum

+40 °F | +5 °C

Substrate Temperature

Minimum

+40 °F | +5 °C
Application steps

APPLICATION INSTRUCTIONS

IMPORTANT

Strictly follow installation procedures

Strictly follow installation procedures as defined in Method Statements, application manuals and working instructions which must always be adjusted to the actual site conditions.

IMPORTANT

Application by trained personnel

The application of this Product must only be carried out by an applicator that is trained or approved by Sika. The applicator must also be experienced in this type of application.

SUBSTRATE QUALITY

The contact surface is the grey SikaProof® A+ bonding layer. It must be dry or slightly damp, clean and free of any materials that could impair adhesion.

Application outside of specified application conditions

Note: Under certain circumstances, the Product can be applied in conditions other than the ones specified in this data sheet. However, this requires specific precautions and application methods.

  1. Contact Sika technical services for more information.

APPLICATION

IMPORTANT

Exposure to UV or weathering

The Product is not resistant to permanent UV exposure or weathering.

  • Protect as soon as possible but not later than 90 days after application
  1. Remove the release liner
  2. Apply onto the grey SikaProof® A+ membrane side
  3. Press on firmly using a pressure roller
