Composite boat construction relies increasingly on structural adhesives for the bonding of primary joints, such as stringers, bulkheads, and deck‑to‑hull connections. Structural adhesive bonding enables faster, cleaner production with better damage tolerance, as compared to purely laminated or mechanically fastened joints.
While methyl methacrylate adhesives (MMAs) are frequently over-specified due to their high mechanical strength, this article argues that structural polyurethanes provide a superior balance of strength, elasticity, processability, and cost-efficiency for most marine applications.
It is important to note that excessive strength without regard to load behavior, heat generation, and production realities can increase risk rather than reduce it.
The Role of Adhesive Bonding in Composite Boat Hulls
The construction of glass-reinforced plastic (GRP or fiberglass) boats is usually carried out by molding the hull and deck separately and then joining them together. At the same time, the internal structure (stringers, floors, and bulkheads) is bonded via adhesive to a cured hull shell. This approach avoids drilling through laminates for mechanical fasteners, which preserves fiber continuity, improves fatigue life, and simplifies sealing of critical joints.
Key functions of adhesive‑bonded joints:
- Transfer global loads between the hull, deck, and internal grid without stress concentrations from bolts or screws
- Provide gap‑filling capability to accommodate molding tolerances, especially at stringer landings and bulkhead flanges
- Improve acoustic damping and vibration behavior compared with stiff tabbing only
Common Structural Adhesives for Composite Boat Building
Structural MMA Adhesives
MMA (structural acrylic) adhesives have become standard in many composite boatyards, as they combine high lap shear strength with useful flexibility and excellent adhesion to cured polyester/vinyl ester laminates with minimal surface preparation. They offer rapid cure and good gap‑filling, which is attractive for stringer, bulkhead, and deck‑to‑hull bonding where cycle time is critical.
However, MMAs generate significant exothermic heat in thick bond lines, which can cause surface deformation or bond line read‑through, especially on light skins and gelcoats. In addition, their strong odor and VOC emissions impose ventilation and HSE burdens in closed molding shops. These factors can limit bead size or require staged application on large boats, adding complexity in high‑volume production.
Structural Polyurethane Adhesives
Structural polyurethanes provide a combination of flexibility, impact resistance, and structural strength, well-matched to dynamic load cases and dissimilar joint designs in marine applications. Their lower crosslink density, compared to their rigid acrylic and epoxy counterparts, allows them to absorb differential movement between hull, deck, cores, and internal structure without cracking; which is valuable in long deck‑to‑hull seams and large bulkhead T‑joints. This inherent flexibility also contributes to improved acoustic comfort, reducing cracking and creaking noises during vessel operation.
From a process standpoint, two‑component polyurethanes like SikaForce®-436 are available with tailored open times and viscosities. They work efficiently with meter‑mix‑dispense equipment for high‑volume, repeatable stringer and grid bonding.
SikaForce®-436 is an IMO, RINA, and BV-approved marine‑grade system that exhibits low odor and lower exotherm in thick sections, thus reducing the risk of heat‑induced defects such as gelcoat read‑through, print‑through of the bond line, and local warpage or cracking of thin skins.
Strength is Not the Same as Structural Safety
A common misconception in boat design is that higher adhesive strength equals a safer structure. Composite hulls are flexible and subjected to dynamic, cyclic loads; making stress distribution essential for long-term durability. When adhesive bonds are overly stiff, they can transfer loads directly into the surrounding laminate, increasing the risk of edge cracking and reducing fatigue life.
While MMAs are frequently justified by impressive laboratory performance, real-world production conditions reveal important drawbacks, including strong odor, narrow processing windows, increased health and safety requirements, and a higher risk of scrap and rework. In high-volume boat building, process robustness and repeatability often outweigh marginal gains in ultimate strength.
MMAs can be appropriate for bonding dissimilar substrates, controlled thin bond lines, or localized reinforcement. However, their blanket specification for structural bonding in composite boats is rarely justified from either a technical or economic standpoint.
Benefits of Structural Polyurethanes for Cost‑Effective Production
Improved Application and Shop Environment

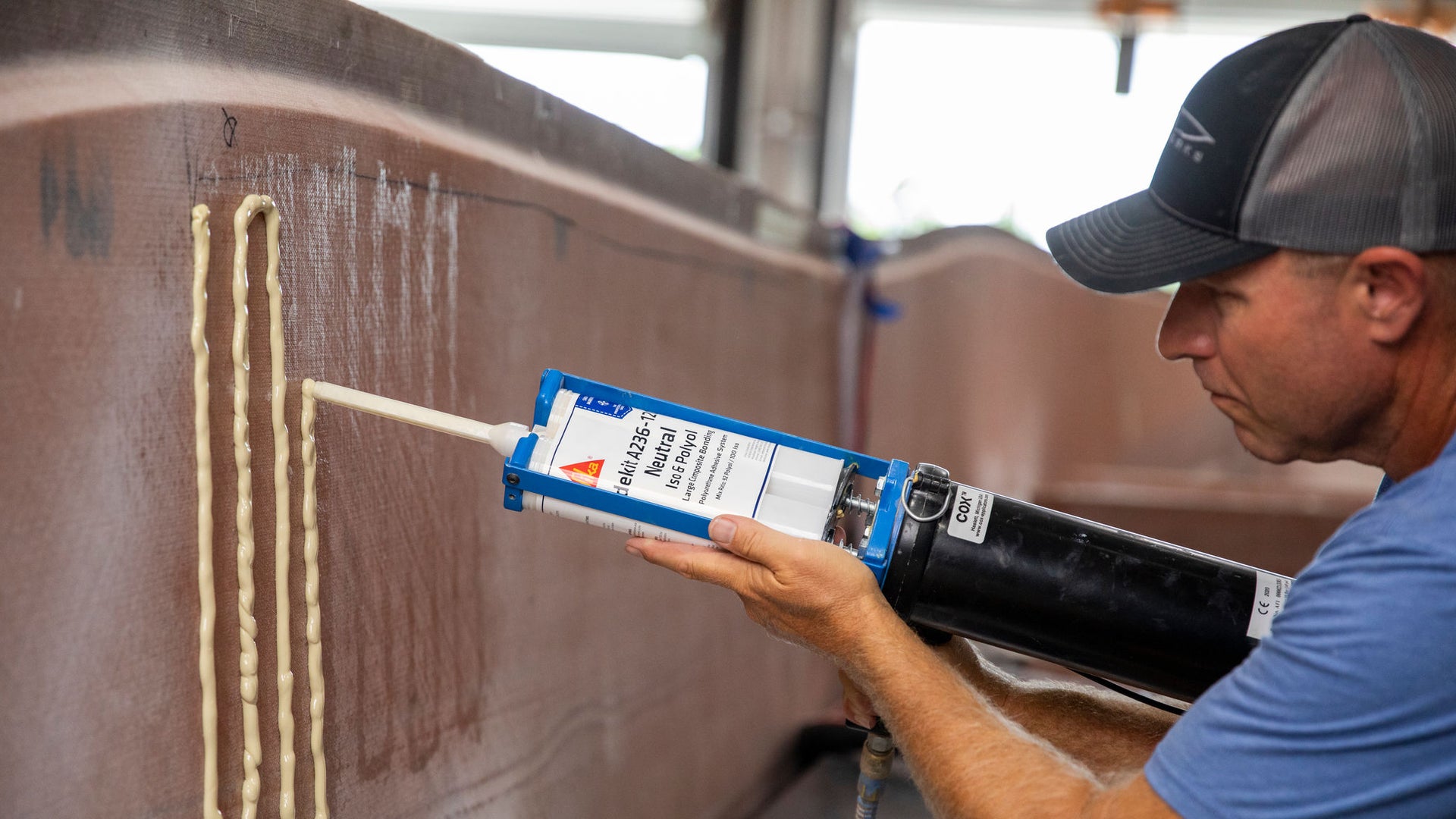

Polyurethane adhesives’ rheology and cure profiles support continuous, high‑volume application with robotic or manual meter‑mix guns, allowing long, continuous beads for stringers, bulkheads, and deck‑to‑hull joints without frequent cartridge changes.
Recent developments like Sika’s Cure by Design technology allow reaching beyond typical limits by further optimizing the combination of long working time and fast cure time.
- Faster takt times with fewer interruptions for adhesive changeover or odor‑related ventilation cycles
- Lower exotherm and reduced cosmetic rework
Because polyurethanes typically develop lower peak exotherm than fast MMA or heavily filled polyester pastes, they minimize thermal gradients and shrinkage around thick bond lines. This reduces bond line read‑through, gelcoat print‑through, and distortion in topsides and decks, which are common sources of cosmetic rework and warranty claims.
Reduced heat‑induced damage allows:
- Less post‑cure fairing and painting to hide telegraphing at stringer and bulkhead locations
- Lower risk of micro‑cracking and long‑term crazing around deck‑to‑hull joints subjected to sunlight and thermal cycling
Structural Performance and Lifecycle Cost
The combination of strong adhesion, toughness, and flexibility gives polyurethane‑bonded joints superior fatigue performance under wave‑induced hull flexure and slamming loads, particularly at transitions between stiff bulkheads and relatively flexible hull panels. By reducing crack initiation and propagation, these joints help maintain stiffness and alignment over the vessel’s life, lowering the probability of structural repairs or intrusive re‑tabbing.
When production labor, rework, ventilation, and warranty exposure are considered, structural polyurethane systems can deliver a lower total cost of ownership for the yard than alternatives, even if unit material cost per kilogram is higher than polyester paste and comparable to MMA.
However, the indiscriminate pursuit of maximum strength has led to the over-specification of MMA adhesives. For series‑built composite boats, the balance of application efficiency, cosmetic stability, and durable performance makes structural polyurethanes a compelling choice for stringers, bulkheads, and deck‑to‑hull bonding.
