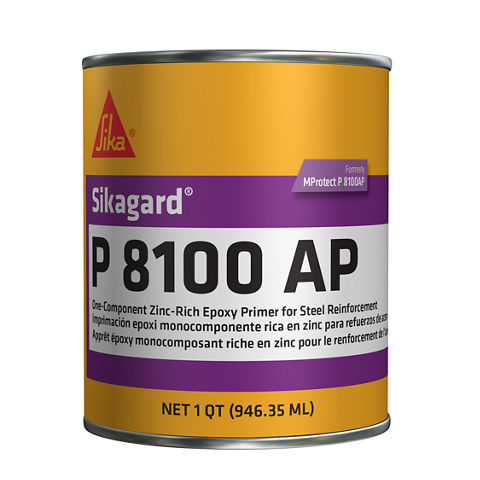

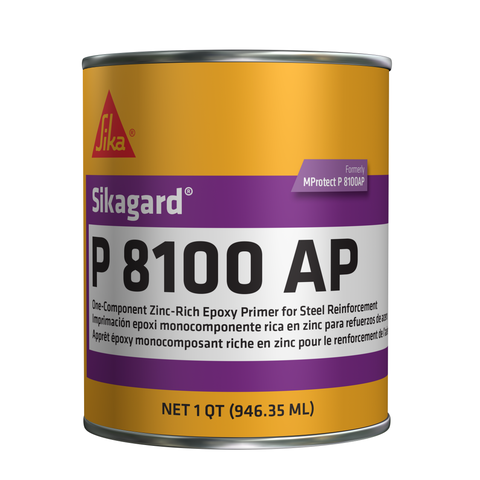

Sikagard® P 8100 AP

(formerly MProtect P 8100AP)

ONE-COMPONENT ZINC-RICH EPOXY PRIMER FOR STEEL REINFORCEMENT

Sikagard® P 8100 AP is a one-component epoxy primer. It is designed to prime and protect reinforcing steel from corrosion.

  • Dries to touch in 15–45 minutes
  • High zinc content protects reinforcing steel from corrosion
  • Epoxy chemistry is compatible with all repair mortars
  • Long working time
  • One-component product requires only stirring prior to use
Product Data Sheet Show all documents

Usage

  • Interior and exterior
  • Corrosion mitigation
Substrates
  • Reinforcing steel


Advantages

  • Dries to touch in 15–45 minutes
  • High zinc content protects reinforcing steel from corrosion
  • Epoxy chemistry is compatible with all repair mortars
  • Long working time
  • One-component product requires only stirring prior to use

Packaging

1 quart (0.9 L) cans

Product Details

Product Information

Chemical Base

Sikagard® P 8100 AP is a one-component epoxy primer.

Shelf Life

15 months when properly stored

Storage Conditions

Store and transport in unopened containers in cool, clean, dry conditions. Keep from freezing.

Solubility

Specific gravity: 2.1–2.2

Application

Application Information

Layer Thickness

Recommended thickness: 2 mils, DFT per coat

Drying Time

68° F (20° C)

95° F (35° C)

Touch dry, min

45

15

Fully dry / recoatable, min

30–60

20–45
Consumption

Coverage

150–250 lineal ft (46–76 lineal m) per can (# 4 rebar)
Application steps

SUBSTRATE PREPARATION

  1. Fully expose any corroded steel in the repair area. Remove all loose scale and corrosion deposits, paying particular attention to the back of exposed steel bars.
  2. Mechanically abrade all exposed steel to remove corrosion from pits and imperfections within its surface.

APPLICATION

  1. Thoroughly stir Sikagard® P 8100 AP prior to use.
  2. Apply Sikagard® P 8100 AP to a dry surface as soon as possible after completion of the preparation work, but always within 3 hours. Apply one continuous coat with suitable brush, making sure the back of the exposed steel reinforcing bars are completely coated.
  3. Two coats of 4 mils WFT are required to ensure complete coverage of the surface. Allow the first coat to fully dry before applying the second.
  4. Concrete-repair materials can be applied as soon as the Sikagard® P 8100 AP is fully dry. Do not leave the primed surfaces exposed to the elements for longer than 7 days before recoating or applying repair materials.

CLEANING OF TOOLS

Clean hands and skin immediately with soap and water or industrial hand cleaner. Remove Sikagard® P 8100 AP from tools, equipment, and mixers with xylene immediately after use
