SikaGrout®-928
(formerly MFlow 928)
LOW DUST, HIGH-PRECISION MINERAL-AGGREGATE GROUT WITH EXTENDED WORKING TIME
0.0 (0)
SikaGrout®-928 grout is a hydraulic cement-based mineral aggregate non-shrink grout with extended working time. It is ideally suited for grouting machines or plates requiring precision load-bearing support. It can be placed from fluid to damp pack over a temperature range of 45 to 90 °F (7 to 32 °C).
- Meets the requirements of ASTM C1107 and US Army Corps of Engineers CRD C621 (Grades B and C) at a fluid consistency over a 30-minute working time
- Low-dusting for added worker comfort and safety
- NSF/ANSI 61 Std for use with potable water
- Pumpable
- Extended working time
- Can be mixed at a wide range of consistencies
- Freeze/thaw resistant making it suitable for exterior applications
- Hardens free of bleeding, segregation, or settlement shrinkage to provide maximum effective bearing area for optimum load transfer
- Contains high-quality, well-graded quartz aggregate for optimum strength and workability
- Sulfate resistant for marine, wastewater, and other sulfate-containing environments
Usage
- Grouting of equipment, such as compressors and generators, pump bases and drive motors, tank bases, and conveyors.
- Grouting anchor bolts, rebar, and dowel rods
- Grouting of precast wall panels, beams, columns, curtain walls, concrete systems, and other structural and non-structural building components
- Repairing concrete, including grouting voids and rock pockets
- Concrete
Advantages
- Meets the requirements of ASTM C1107 and US Army Corps of Engineers CRD C621 (Grades B and C) at a fluid consistency over a 30-minute working time
- Low-dusting for added worker comfort and safety
- NSF/ANSI 61 Std for use with potable water
- Pumpable
- Extended working time
- Can be mixed at a wide range of consistencies
- Freeze/thaw resistant making it suitable for exterior applications
- Hardens free of bleeding, segregation, or settlement shrinkage to provide maximum effective bearing area for optimum load transfer
- Contains high-quality, well-graded quartz aggregate for optimum strength and workability
- Sulfate resistant for marine, wastewater, and other sulfate-containing environments

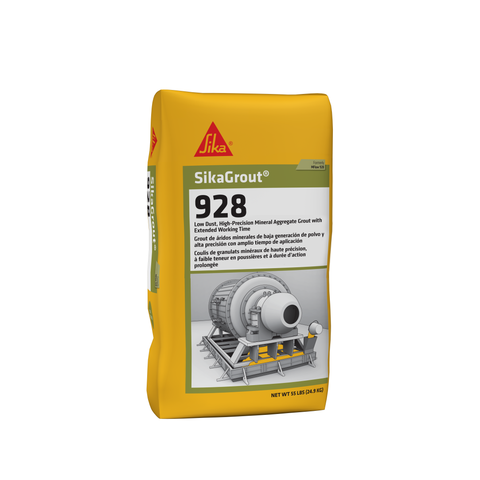

Packaging
55 lb (25 kg) polyethylene-lined bags 3,300 lb (1,500 kg) bulk bags
Product Details
APPROVALS / STANDARDS
- ASTM C 1107 and CRD 621, Grades B and C, requirements at a fluid consistency over a temperature range of 40–90 °F (4–32 °C)
- NSF/ANSI 61 Std for use with potable water
Chemical Base
SikaGrout®-928 is a hydraulic cement-based mineral-aggregate grout.
Shelf Life
55 LB BAG: 1 year when properly stored 3,300 LB BULK BAG: 3 months when properly stored
Storage Conditions
Store in unopened containers in cool, clean, dry conditions
Specific Advice
Dust Reduction
SikaGrout®-928 vs Control | 50% |
Testing
Jobsite Testing
If strength tests must be made at the jobsite, use 2” (51 mm) metal cube molds as specified by ASTM C 942 and the ASTM C 1107 modification of ASTM C 109. DO NOT use cylinder molds. Control field and laboratory tests on the basis of desired placement consistency rather than strictly on water content.
Compressive Strength
Plastic1 | Consistency Flowable2 | Fluid3 | |
1 day | 4,500 psi (31 MPa) | 4,000 psi (28 MPa) | 3,500 psi (24 MPa) |
3 days | 6,000 psi (41 MPa) | 5,000 psi (34 MPa) | 4,500 psi (31 MPa) |
7 days | 7,500 psi (52 MPa) | 6,700 psi (46 MPa) | 6,500 psi (45 MPa) |
28 days | 9,000 psi (62 MPa) | 8,000 psi (55 MPa) | 7,500 psi (52 MPa) |
1. 100–125% flow on flow table per ASTM C 230
2. 125–145% flow on flow table per ASTM C 230
3. 25 to 30 seconds through flow cone per ASTM C 939
Modulus of Elasticity in Compression
3 days | 2.82 x 106 psi (1.94 x 104 MPa) |
7 days | 3.02 x 106 psi (2.08 x 104 MPa) |
28 days | 3.24 x 106 psi (2.23 x 104 MPa) |
Flexural Strength
3 days | 1,000 psi (6.9 MPa) |
7 days | 1,050 psi (7.2 MPa) |
28 days | 1,150 psi (7.9 MPa) |
Tensile Strength
3 days | 490 psi (3.4 MPa) |
7 days | 500 psi (3.4 MPa) |
28 days | 500 psi (3.4 MPa) |
Tensile Strength
Ultimate Tensile Strength and Bond Stress
Diameter | Depth | Tensile Strength | Bond Stress |
5/8 in (15.9 mm) | 4 in (101.6 mm) | 23,500 in (10,575 mm) | 2,991 in (20.3 mm) |
3/4 in (19.1 mm) | 5 in (127.0 mm) | 30,900 in (13,905 mm) | 2,623 in (18.1 mm) |
1 in (25.4 mm) | 6.75 in (171.5 mm) | 65,500 in (29,475 mm) | 3,090 in (21.3 mm) |
*Average of 5 tests in ≥ 4,000 psi (27.6 MPa) concrete, using 125 ksi threaded rod in 2” (51 mm) diameter, damp, core-drilled holes.
Notes
1. Grout was mixed to a fluid consistency.
2. Recommended design stress: 2,275 psi (15.7 MPa).
3. For more detailed information regarding anchor bolt applications, contact Technical Service.
4. Tensile tests with headed fasteners were governed by concrete failure.
Shear Strength
Punching Shear Strength
3 by 3 by 11" (76 by 76 by 279 mm) beam
3 days | 2,200 psi (15.2 MPa) |
7 days | 2,260 psi (15.6 MPa) |
28 days | 2,650 psi (18.3 MPa) |
Shrinkage
Volume change
% Change | % Requirement of | |
1 day | > 0 | 0.0 – 0.30 |
3 days | 0.04 | 0.0 – 0.30 |
14 days | 0.05 | 0.0 – 0.30 |
28 days | 0.06 | 0.0 – 0.30 |
Coefficient of Thermal Expansion
6.5 x 10-6 in/in/°F (11.7 x 10-6 cm/cm/°C) | (ASTM C 531) |
Freeze-Thaw Stability
Resistance to Rapid Freezing and Thawing
Durability Factor > 90% 300 Cycles | (ASTM C 666, Procedure A) |
Splitting tensile strength
3 days | 575 psi (4.0 MPa) |
7 days | 630 psi (4.3 MPa) |
28 days | 675 psi (4.7 MPa) |
Curing Conditions
Cure all exposed grout with an approved membrane curing compound compliant with ASTM C 309 or preferably ASTM C 1315. Apply curing compound immediately after the wet rags are removed to minimize potential moisture loss.
Application
Set Time
Plastic1 | Consistency Flowable2 | Fluid3 | |
Initial set | 2:30 hr:min | 3:00 hr:min | 4:30 hr:min |
Final set | 4:00 hr:min | 5:00 hr:min | 6:00 hr:min |
1. 100–125% flow on flow table per ASTM C 230
2. 125–145% flow on flow table per ASTM C 230
3. 25 to 30 seconds through flow cone per ASTM C 939
Coverage
One 55 lb (25 kg) bag of SikaGrout®-928 grout mixed with 10.5 lbs (4.8 kg) or 1.26 gallons (4.8 L) of water (fluid consistency) provides approximately 0.50 ft3 (0.014 m3 ) of grout. Note: The water requirement may vary due to mixing efficiency, temperature, and other variables.
NOTES ON INSTALLATION
Forming
1. Forms should be liquid tight and nonabsorbent. Seal forms with putty, sealant, caulk or polyurethane foam. Use sufficient bracing to prevent the grout from leaking or moving.
2. Moderately sized equipment should utilize a head box to enhance the grout placement.
3. Side and end forms should be a minimum 1" (25 mm) distant horizontally from the equipment to be grouted to permit expulsion of air and any remaining saturation water as the grout is placed.
4. Leave a minimum of 2" between the bearing plate and the form to allow for ease of placement.
5. Eliminate large, non-supported grout areas wherever possible.
6. Extend forms a minimum of 1" (25 mm) higher than the bottom of the equipment being grouted.
7. Expansion joints may be necessary. Consult your local Sika field representative for suggestions and recommendations.
Temperature
1. The ambient and initial temperature of the grout should be in the range of 45 to 90 °F (7 to 32 °C) for both mixing and placing. For precision grouting, store and mix grout to produce the desired mixed-grout temperature. If bagged material is hot, use cold water, and if bagged material is cold, use warm water to achieve a mixed-product temperature as close to 70 °F (21 °C) as possible.
2. If temperature extremes are anticipated or special placement procedures are planned, contact your local Sika representative for assistance. 3. When grouting at minimum temperatures, see that the foundation, plate, and grout temperatures do not fall below 40 °F (7 °C) until after final set. Protect the grout from freezing (32 °F or 0 °C) until it has attained a compressive strength of 3,000 psi (21 MPa) in accordance with ASTM C 109.
Recommended Temperature Guidelines for Precision Grouting
Minimum oF (oC) | Preferred oF (oC) | Maximum oF (oC) | |
Foundation and plates | 45 (7) | 50–80 (10–27) | 90 (32) |
Mixing water | 45 (7) | 50–80 (10–27) | 90 (32) |
Grout at mixed and placed temp. | 45 (7) | 50–90 (10–32) | 90 (32) |
SURFACE PREPARATION
1. Steel surfaces must be free of dirt, oil, grease, or other contaminants.
2. The surface to be grouted must be clean, SSD, strong, and roughened to a CSP of 5–9 following ICRI Guideline 310.2 to permit proper bond.
3. When dynamic, shear or tensile forces are anticipated, concrete surfaces should be chipped with a “chisel-point” hammer, to a roughness of (plus or minus) 3 ⁄8" (10 mm). Verify the absence of bruising following ICRI Guideline 210.3.
4. Concrete surfaces should be saturated (ponded) with clean water for 24 hours just before grouting.
5. All freestanding water must be removed from the foundation and bolt holes immediately before grouting.
6. Anchor bolt holes must be grouted and sufficiently set before the major portion of the grout is placed.
7. Shade the foundation from sunlight 24 hours before and 24 hours after grouting.
MIXING
By using the minimum amount of water to provide the desired workability, maximum strength will be achieved. Whenever possible, mix the grout with a mortar mixer or an electric drill with a paddle such as ICRI 320.5 type A, D, E, F, G or H. Put the measured amount of potable water into the mixer, add grout, then mix till a uniform consistency is attained. Do not use water in an amount or a temperature that will cause bleeding or segregation. Note: The water requirement may vary due to mixing efficiency, temperature, and other variables.
1.Place estimated water (use potable water only) into the mixer, then slowly add the grout. For a fluid consistency, start with 9 lbs (4 kg) (1.1 gallon [4.2L]) per 55 lb bag.
2.The water demand will depend on mixing efficiency, material, and ambient-temperature conditions. Adjust the water to achieve the desired flow. Recommended flow is 25–30 seconds using the ASTM C 939 Flow-Cone Method. Use the minimum amount of water required to achieve the necessary placement consistency.
3.Moderately sized batches of grout are best mixed in one or more clean mortar mixers. For large batches, use ready-mix trucks and 3,300 lb (1,500 kg) bags for maximum efficiency and economy.
4.Mix grout between 3 and 5 minutes after all material and water is in the mixer until a homogenous consistency is achieved. Use mechanical mixer only.
5.Do not mix more grout than can be placed in approximately 30 minutes.
6.Transport by wheelbarrow or buckets or pump to the equipment being grouted. Minimize the transporting distance.
7.Do not retemper grout by adding water and remixing after it stiffens.
8.Do not add plasticizers, accelerators, retarders, or other additives.
9.For placements greater than 6" (152 mm) in depth, product should be extended with aggregate. Aggregate extension is dependent upon the grout type, placement, application requirements, and is typically required for placement depths beyond the limitation of the neat material. The aggregate should be washed, graded, saturated, surface-dry (SSD), high-density, free from deleterious materials, and comply with the requirements of ASTM C 33. Consult Sika Technical Service for additional guidance.
APPLICATION
Placement
1. Always place grout from only one side of the equipment to prevent air or water entrapment beneath the equipment. Place SikaGrout®-928 in a continuous pour. Discard grout that becomes unworkable. Make sure that the material fills the entire space being grouted and that it remains in contact with plate throughout the grouting process.
2. Immediately after placement, trim the surfaces with a trowel and cover the exposed grout with clean wet rags (not burlap). Keep rags moist until grout surface is ready for finishing or until final set.
3.The grout should offer stiff resistance to penetration with a pointed mason’s trowel before the grout forms are removed or excessive grout is cut back. After removing the damp rags, immediately coat with a recommended curing compound compliant with ASTM C 309 or preferably ASTM C 1315.
4.Do not vibrate grout. Use steel straps inserted under the plate to help move the grout. 5.Minimum placement thickness is 1" (25 mm). Consult your Sika representative before placing lifts more than 6" (152 mm) in depth.
CLEANING
Waste Disposal Method
This product when discarded or disposed of, is not listed as a hazardous waste in federal regulations. Dispose of in a landfill in accordance with local regulations. For additional information on personal protective equipment, first aid, and emergency procedures, refer to the product Safety Data Sheet (SDS) on the job site or contact the company at the address or phone numbers given below
