Sikadur®-42 Grout Pak LE
PRE-PROPORTIONED, PRECISION EPOXY GROUTING SYSTEM
0.0 (0)
Sikadur®-42 Grout Pak LE, is a high strength, multi purpose, three-component, low exotherm, low dusting, solvent-free, moisture-insensitive, epoxy grouting system designed to seat and support high demand equipment.
- Meets API Standard 686.
- Low peak exotherm.
- Low dusting, ready-to-mix, pre-proportioned kits.
- Moisture insensitive.
- Corrosion and impact resistant.
- Stress and chemical resistant.
- High compressive, tensile and shear strengths.
- High vibration resistance.
- Low coefficient of thermal expansion; compatible with concrete.
- Material does not require heated transportation.
Usage
- Precision seating of baseplates
- Grouting under equipment, including heavy impact and vibratory machinery, reciprocating engines, compressors, pumps, presses, etc.
- Grouting under crane rails
Advantages
- Meets API Standard 686.
- Low peak exotherm.
- Low dusting, ready-to-mix, pre-proportioned kits.
- Moisture insensitive.
- Corrosion and impact resistant.
- Stress and chemical resistant.
- High compressive, tensile and shear strengths.
- High vibration resistance.
- Low coefficient of thermal expansion; compatible with concrete.
- Material does not require heated transportation.

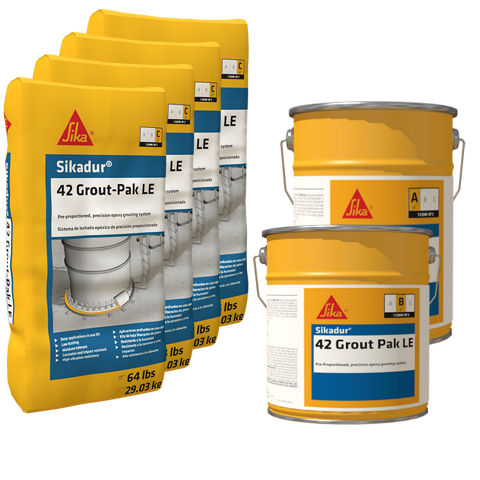

Packaging
2.0 cu. ft. Unit =
Component A: 22.6 lbs. (10.28 kg)
Component B: 7.5 lbs. (3.42 kg)
Component C: 4 x 64 lbs. (29.03 kg)
Product Details
Shelf Life
24 months from date of production
Storage Conditions
Store dry between 41 °F and 89 °F (5 °C and 32 °C). Condition material between 73 °F and 86 °F (23 °C and 30 °C) for 48 hours prior to using. For temperatures outside of this range, please contact our technical department.
Density
144 lb/ft3 (2300 kg/m3)
Effective Bearing Area
~90 % (High) | (ASTM C-1339) |
Compressive Strength
24 h | 5,000 psi (34.5 MPa) |
2 days | 9,000 psi (62.1 MPa) |
3 days | 10,000 psi (69.0 MPa) |
7 days | 11,000 psi (75.8 MPa) |
28 days | 13,300 psi (91.7 MPa) |
* Material cured and tested at the temperatures indicated.
Flexural Strength
6,400 psi (44.1 MPa) | (ASTM C-580) 73 °F (23 °C) |
Modulus of Elasticity in Flexure
5.24 x 106 psi (36 GPa) | (ASTM C-580) 73 °F (23 °C) |
Tensile Strength
5,000 psi (34.5 MPa) | (ASTM D-638) 73 °F (23 °C) |
Creep
600 psi, 140 °F (4.1 MPa, 60 °C) | 7.2 x 10-3 |
400 psi, 140 °F (2.7 MPa, 60 °C) | 5.3 x 10-3 |
Coefficient of Thermal Expansion
-22–86 °F (-30–30 °C) | 1.6 x 10-5/°F (2.8 x 10-5/°C ) |
75–212 °F (24–100 °C) | 2.1 x 10-5/°F (3.8 x 10-5/°C) |
Thermal Compatibility
No delamination/pass | (ASTM C-884) |
Application
Peak Exotherm
94.3 °F (34.6 °C) | (ASTM D-2471) |
Mixing Ratio
Ratio A:B:C by weight | 3:1:34 |
Ratio solid/liquid by weight | 8.5:1 |
Pot Life
Mix 3:1 (A:B 300 g) | 2 h 20 min |
Coverage
2 ft3 (56,640 cm3), 15 gallons (56.6 liters)
SUBSTRATE PREPARATION
Note: For optimum results when grouting in critical items of equipment, it is recommended that the surface preparation requirements of the latest edition of Chapter 5, API Recommended Practice 686 be followed. This document is the “Recommended Practices for Machinery Installation and Installation Design” published by the American Petroleum Institute.
Surface and base plate contact area must be clean and sound. For best results, the substrate should be dry. Remove dust, laitance, oils, grease, curing compounds, impregnations, waxes, foreign particles, coatings, and disintegrated materials by mechanical means, i.e. chipping with a chisel, sandblasting. All anchor pockets or sleeves must be void of water. Sandblast metal base plates to a commercial white finish (SP-10) for maximum adhesion. Apply grout immediately to prevent re-oxidizing.
Forming: The consistency of the epoxy grout system requires the use of forms to contain the material around the base plates. In order to prevent leakage or seepage, all forms must be sealed. Apply polyethylene film or wax to all forms to prevent adhesion of the grout. Prepare form work to maintain more than 4 in. (100 mm) liquid head to facilitate placement. A grout box equipped with an inclined trough attached to the form will enhance the grout’s flowability and minimize air encapsulation.
MIXING
Thoroughly stir both Component A and Component B, distributing any settled solids and achieving an even consistency throughout each component. Mix the entire contents of components A and B in the component A pail for 3 minutes with a paddle attached to a low speed drill (300–450 rpm). During the mixing operation, scrape down the sides and bottom of the mixing pail with a flat or straight edge trowel at least once, to ensure complete mixing of A and B components. Empty entire contents of mixed A and B components into an appropriate mortar mixer ensuring that walls and bottom of mixing pail are scraped clean and all of mixed epoxy resin is added to mortar mixer. Slowly add the entire content of component C and mix until uniformly blended (approx. 5 minutes). Add all component C unless a reduction is directed by the Sika Representative. Mixed grout should be kept agitated prior to placement.
CLEANING OF TOOLS
Sweep into appropriate containers. Dispose of in accordance with applicable local regulations. Uncured material can be removed with Sika® Equipment Cleaner. Cured material can only be removed mechanically.
