Sika® Intraplast® N

Sika® Intraplast® N

Expanding / Fluidifying Grouting Aid

Sika® Intraplast® N is a balanced blend of expanding, fluidifying, and water-reducing agents for Portland-cement grouts. It produces a slow, controlled expansion prior to the grout hardening.

  • High fluidity - Sika® Intraplast® N grout is extremely fluid, workable, non-settling, and cohesive.
  • Versatile - use Sika® Intraplast® N with all types of grout incorporating Type I, II, or III cement, with or without pozzolanic materials or fly ash, and with or without fine aggregate.
  • Controlled, gaseous expansion occurs before initial set and forces the grout into close contact with the surrounding surfaces.
Product Data Sheet
Show all documents

Usage

  • Machinery base plates.
  • Pre-packed aggregate cavities.
  • Rock fissures and bolting.


Advantages

  • High fluidity - Sika® Intraplast® N grout is extremely fluid, workable, non-settling, and cohesive.
  • Versatile - use Sika® Intraplast® N with all types of grout incorporating Type I, II, or III cement, with or without pozzolanic materials or fly ash, and with or without fine aggregate.
  • Controlled, gaseous expansion occurs before initial set and forces the grout into close contact with the surrounding surfaces.

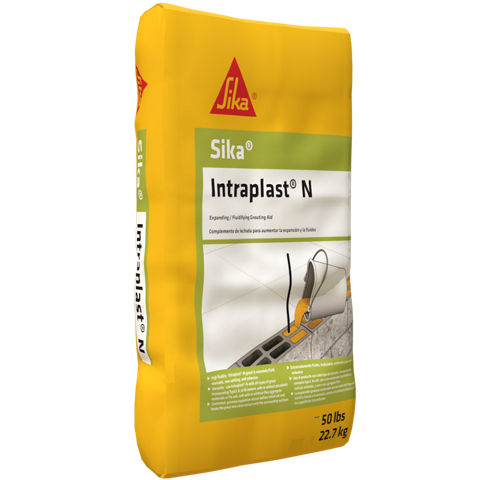

Packaging

50 lb (22.7 kg) bag

Color

Gray powder

Product Details

Product Information

Shelf Life

6 months from date of production if stored properly in original, unopened and undamaged sealed packaging

Storage Conditions

  • Store dry at 40–95 °F (4–35 °C)
  • Protect from moisture. If damp, discard material
  • Recommend condition material to 65-85°F (18-29°C) before using

Application

Consumption

Recommended Dosage

Add 1 % by weight of cementitious material, (Portland-cement and, if used, fly ash)


Application steps

MIXING

  • Water should be added to the mixer first, followed by Portland-cement, fly ash, admixture, and sand as required.
  • Mixing should be of such duration as to obtain a uniform, thoroughly blended grout, without excessive temperature increase.
  • No water should be added to the grout to increase any flowability which has been lost by delayed use of grout.
  • It is essential that the water content of the grout be kept as low as possible.
  • The water content should generally be less than 5.25 gal/100 lb of cementitious material.
  • Do not overwater!

Opening < 1/4"Opening > 1/4"
Cement12 parts1 part2 parts1 part
Fly Ash21 partnone1 partnone
Sand3nonenone3 parts1 part
Water44–54–541/2–51/241/2–51/2
Sika® Intraplast® N51 %1 %1 %1 %

  1. ASTM C-150

  2. ASTM C-350

  3. 100 % passing an 8-mesh sieve

  4. Gallons per 100 lb cementitious material

  5. By weight of cementitious material

  • Water requirements will typically be lower than that of a non-Sika® Intraplast® N mix of equal fluidity.
