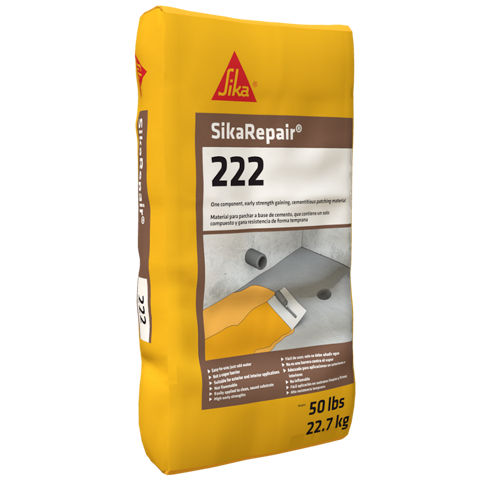

SikaRepair®-222

One-component, early strength gaining, cementitious patching material

SikaRepair®-222 is a one-component, early strength gaining, cementitious, patching material for horizontal repair of concrete.

  • Easy-to-use; just add water
  • Suitable for exterior and interior applications
  • Not flammable
  • Easily applied to clean, sound substrate
  • High early strengths
Product Data Sheet
Show all documents

Usage

  • On grade, above and below grade on concrete and mortar
  • As a repair material for spalled horizontal concrete surfaces, walkways, ramps, steps, etc.


Advantages

  • Easy-to-use; just add water
  • Suitable for exterior and interior applications
  • Not flammable
  • Easily applied to clean, sound substrate
  • High early strengths

Packaging

SikaRepair®-222: 50 lb. (22.7 kg) bag
SikaLatex® (R): 1 gal. (3.8 L) plastic jug and 5 gal. (19 L) pail

Color

Gray powder

Product Details

Product Information

Shelf Life

12 months from date of production if stored properly in original, unopened and undamaged sealed packaging

Storage Conditions

Store dry at 40–95 °F (4–35 °C).

Protect from moisture. If damp, discard material.


Technical Information

Compressive Strength

Water

SikaLatex® R

1 day

> 2,000 psi

(13.8 MPa)

2,300 psi

(15.9 MPa)

7 days

4,000 psi

(27.6 MPa)

4,500 psi

(31.0 MPa)

28 days

5,000 psi

(34.5 MPa)

5,500 psi

(37.9 MPa)

Flexural Strength

Water

SikaLatex® R

28 days

750 psi

(5.1 MPa)

1,200 psi

(8.2 MPa)

Splitting Tensile Strength

Water

SikaLatex® R

28 days

450 psi

(3.1 MPa)

700 psi

(4.8 MPa)

Tensile Adhesion Strength

Water

SikaLatex® R

28 days

2,000 psi

(13.8 MPa)

2,000 psi

(13.8 MPa)

* Mortar scrubbed into substrate (73 °F (23 °C) and 50 % R.H.)

Application

Application Information

Mixing Ratio

3/4 - 7/8 gal. (2.8 - 3.3 L) of liquid

Layer Thickness

Neat

Min.

Max.

Water and diluted SikaLatex® R

1/4" (6 mm)

1" (25 mm)

undiluted SikaLatex® R1/8" (3 mm)1" (25 mm)

ExtendedMin.Max.
Water and SikaLatex® R1" (25 mm)4" (100 mm)

Product Temperature

65–75 °F (18–24 °C)

Ambient Air Temperature

> 45 °F (7 °C)

Substrate Temperature

> 45 °F (7 °C)

Pot Life

 ~ 30 minutes

As the temperature will affect the pot life, application temperature:

  • Above 73 °F (23 °C) will reduce the pot life and slump

  • Below 73 °F (23 °C) will extend the pot life and slump

Finishing Time

~50–120 minutes


Consumption

Coverage

Neat

0.42 ft3 (0.01 m3)

Extended with 32 lb (14.5 kg) of 3/8" (9.5 mm) gravel

0.62 ft3 (0.02 m3)

(Coverage figures do not include allowance for surface profile and porosity or material waste)
Application steps

MIXING

  • With water: Start with 3/4 gal. (2.8 L) of water added to the mixing vessel. Add 1 bag of SikaRepair®-222 while continuing to mix with a low-speed drill (400-600 rpm) and mixing paddle or in an appropriate mortar mixer. Add up to another 1/8 gal (0.5 L) of water to achieve desired consistency. Do not over-water.



  • With SikaLatex® R: Pour 3/4 gal. (2.8 L)  of SikaLatex® R into the mixing container. Slowly add powder, mix and adjust as above.



  • With diluted SikaLatex® R: SikaLatex® R may be diluted up to 5:1 (water: SikaLatex® R) for projects requiring minimal polymer modification. Pour 3/4 gal. (2.8 L) of the mixture into the mixing container. Slowly add powder, mix and adjust as above.





Extension with aggregates:

  • For applications greater than 1" (25 mm) in depth, add 3/8" (9.5 mm) coarse aggregate.
  • The aggregate must be non-reactive (reference ASTM C-1260, C-227 and C-289), clean, well graded, SSD, have low absorption and high density, and comply with ASTM C-33 size number 8 per Table 2.
  • Variances in aggregate may result in different strengths.
  • The addition rate is 32 lb. (14.5 kg) of aggregate per bag. It is approximately 2.5-3 gal. (9.5-11.3 L) by loose volume of aggregate.
  • Water may be varied to achieve the desired consistency. Do not over water.

APPLICATION

  • The prepared mortar must be scrubbed into the substrate, filling all pores and voids. Force material against edge of repair, working toward center.
  • After filling repair, consolidate, then screed.
  • Allow mortar to set to desired stiffness, then finish.
  • Mixing, placing and finishing should not exceed 45 minutes.

CURING TREATMENT

  • As per ACI recommendations for Portland cement concrete, curing is required.
  • Moist cure with wet burlap and polyethylene, a fine mist of water or a water based* compatible curing compound.
  • Curing compounds adversely affect the adhesion of following lifts of mortar, leveling mortar or protective coatings.
  • Moist curing should commence immediately after finishing. Protect freshly applied mortar from direct sunlight, wind, rain and frost.


* Pretesting of curing compound is recommended.
