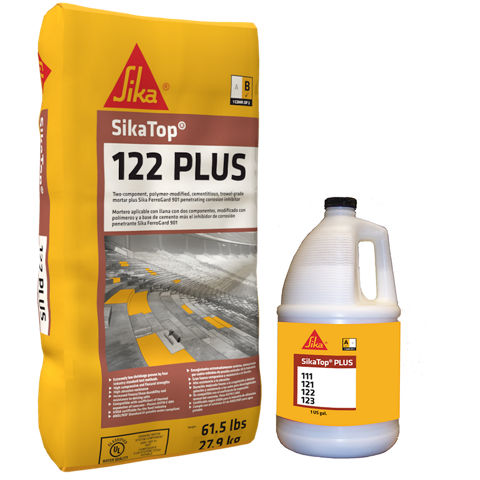

SikaTop®-122 Plus
Two-component, polymer-modified, cementitious, trowel-grade mortar plus Sika FerroGard® 901 penetrating corrosion inhibitor
0.0 (0)
SikaTop®-122 Plus is a two-component, polymer-modified, portland cement based, fast-setting, trowel-grade mortar. It is a high-performance repair mortar for horizontal and vertical surfaces and offers the additional benefit of Sika FerroGard® 901, a penetrating corrosion inhibitor.
- Extremely low shrinkage proven by four industry standard test methods
- High compressive and flexural strengths
- High abrasion resistance
- Increased freeze/thaw durability and resistance to deicing salts
- Compatible with coefficient of thermal expansion of concrete - Passes ASTM C-884
- Increased density - improved carbon dioxide resistance (carbonation) without adversely affecting water vapor transmission (not a vapor barrier)
- Sika FerroGard® 901, a penetrating corrosion inhibitor - reduces corrosion even in the adjacent concrete
Usage
- On grade, above and below grade on concrete and mortar.
- On horizontal surfaces.
- As a structural repair material for parking structures, industrial plants, walkways, bridges, tunnels, dams, ramps, floors, etc.
- To level concrete surfaces.
- As an overlay system for topping/resurfacing concrete.
Advantages
- Extremely low shrinkage proven by four industry standard test methods
- High compressive and flexural strengths
- High abrasion resistance
- Increased freeze/thaw durability and resistance to deicing salts
- Compatible with coefficient of thermal expansion of concrete - Passes ASTM C-884
- Increased density - improved carbon dioxide resistance (carbonation) without adversely affecting water vapor transmission (not a vapor barrier)
- Sika FerroGard® 901, a penetrating corrosion inhibitor - reduces corrosion even in the adjacent concrete
Packaging
| Component A | Component B |
| 1 gal (3.78 L) jug 4/carton | 61.5 lb (28.9 kg) bag |
Color
Concrete gray when mixed
Product Details
APPROVALS / STANDARDS
- USDA certifiable for the food industry
- ANSI/NSF Standard 61 potable water compliant
- Tested per ICRI guideline for inorganic repair material data sheet protocol guideline n°320.3R
Shelf Life
12 months from date of production if stored properly in original, unopened and undamaged sealed packaging
Storage Conditions
Store dry at 40–95 °F (4–35 °C)
Protect Component A from freezing. If frozen, discard.
Protect Component B from moisture. If damp, discard.
Density
| 136 lbs/ft3 (2.18 kg/L) | (ASTM C-138) |
Compressive Strength
| 1 day | 2,500 psi (17.2 MPa) |
| 7 days | 5,300 psi (36.5 MPa) |
| 28 days | 7,000 psi (48.3 MPa) |
Modulus of Elasticity in Compression
| 28 days | 3.0x106 psi |
Flexural Strength
| 28 days | 1,500 psi (10.3 MPa) |
Tensile Strength
| 28 days | 2,000 psi (13.8 MPa) |
* Mortar scrubbed into substrate at 73 °F (23 °C) and 50 % R.H.
Splitting tensile strength
| 28 days | 500 psi (3.4 MPa) |
Pull-Out Resistance
| 7 days | >300 psi (2.1 MPa) |
| 28 days | 400 psi (2.8 MPa) |
Shrinkage
| 28 days | 1’’x1’’x11-1/4’’ specimen | < 0.05 % |
| 3’’x3’’x11-1/4’’ specimen | < 0.021 % |
Ring test
| Duration | >70 days |
| Average Max Strain | -9 μstrain |
| Average Stress Strain | 0.49 psi/day |
| Potential for Cracking | Low |
Baenziger block
| 90 days | No cracking |
Rapid Chloride Permeability
| 28 days | < 500 C |
Freeze-Thaw Stability
| 300 cycles | 98 % |
Application
Mixing Ratio
Plant-proportioned kit, mix entire unit.
Fresh mortar density
| 136 lbs/ft3 (2.18 kg/l) | (ASTM C-138) |
Layer Thickness
| Min. | Max. in one lift | |
| Neat | 1/8" (3.2 mm) | 1" (25 mm) |
| Extended | 1" (25.4 mm) | 4" (101.6 mm) |
Product Temperature
65–75 °F (18–24 °C)
Ambient Air Temperature
> 45 °F (7 °C)
Substrate Temperature
> 45 °F (7 °C)
Set Time
| 35–70 minutes | (ASTM C-266) |
Final set time
| > 90 minutes | (ASTM C 266) 73o F (23o C), 50% R.H. |
Finishing time
50–120 minutes
Note: All times start after adding Component ‘B’ to Component ‘A’ and are highly affected by temperature, relative humidity, substrate temperature, wind, sun and other job site conditions.
Coverage
| Neat | 0.51 ft3 (0.02 m3) per unit |
| Extended with 42 lb (19 kg) of 3/8" (9.5 mm) gravel | 0.75 ft3 (0.03 m3) per unit |
(Coverage figures do not include allowance for surface profile and porosity or material waste)
MIXING
- Pour approximately 7/8 of Component ‘A’ into the mixing container.
- Add Component ‘B’ (powder) while mixing continuously.
- Mix mechanically with a low-speed drill (400–600 rpm) and mixing paddle or mortar mixer.
- Add remaining Component ‘A’ (liquid) to mix if a more loose consistency is desired.
- Mix to a uniform consistency, maximum 3 minutes.
- Thorough mixing and proper proportioning of the two components is necessary.
- Refer to ACI 306 Guidelines when there is a need to place this product in cold & hot temperatures. Thinner application will be more sensitive to the temperature
EXTENSION WITH AGGREGATES
- For applications greater than 1" (25.4 mm) in depth, add 3/8" (9.5 mm) coarse aggregate.
- Pour all of Component ‘A’ into mixing container.
- Add all of Component ‘B’ while mixing, then introduce 3/8" (9.5 mm) coarse aggregate at desired quantity.
- Mix to uniform consistency, maximum 3 minutes.
- The aggregate must be non-reactive (reference ASTM C-1260, C-227 and C-289), clean, well graded, Saturated Surface Dry (SSD), have low absorption and high density, and comply with ASTM C-33 size number 8 per Table 2.
- Do not use limestone aggregate.
- Variances in the quality of the aggregate will affect the physical properties of SikaTop®-122 Plus and may result in different strengths.
- The addition rate is 42 lb (19 kg) of aggregate per bag. It is approximately 3.0-4.5 gallons (11.3-17.0 L) by loose volume of aggregate.
APPLICATION
- SikaTop®-122 Plus must be scrubbed into the substrate, filling all pores and voids.
- Force material against edge of repair, working toward center.
- After filling repair, consolidate, then screed.
- Allow mortar or concrete to set to desired stiffness, then finish with wood or sponge float for a smooth surface, or broom or burlap-drag for a rough finish.
CURING TREATMENT
- As per ACI recommendations for Portland cement concrete, curing is required.
- Moist cure with wet burlap and polyethylene, a fine mist of water or a water Sika® Antisol®-250 W* compatible curing compound meeting ASTM C-309.
- Curing compounds adversely affect the adhesion of following lifts of mortar, leveling mortar or protective coatings.
- Moist curing should commence immediately after finishing.
- Protect freshly applied mortar from direct sunlight, wind, rain and frost.
- To prevent from freezing, cover with insulating material.
* Pretesting of curing compound is recommended.
