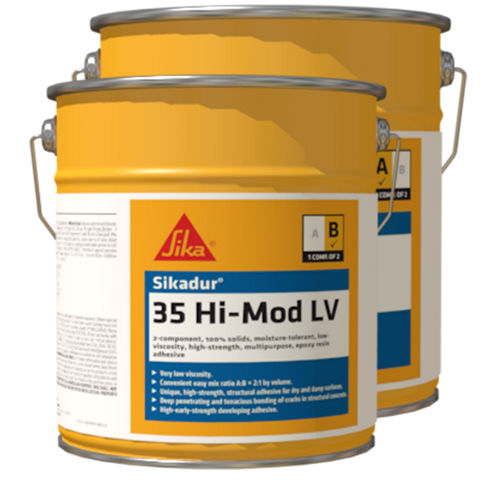

Sikadur®-35 Hi-Mod LV
High modulus, low viscosity, high strength epoxy grouting/sealing/binder adhesive
0.0 (0)
Sikadur®-35 Hi-Mod LV is a 2-component, 100 % solids, moisture-tolerant, low-viscosity, high-strength, multipurpose, epoxy resin adhesive. It conforms to the current ASTM C-881, Types I, II, and IV, Grade-1, Class C* and AASHTO M-235 specifications. *except for gel time
- Super low viscosity.
- Convenient easy mix ratio A:B = 2:1 by volume.
- Unique, high-strength, structural adhesive for “can’t dry” surfaces.
- Deep penetrating and tenacious bonding of cracks in structural concrete.
- High-early-strength developing adhesive.
- Excellent chemical resistance in flooring systems.
Usage
- Pressure-injection of cracks in structural concrete, masonry, wood, etc.
- Gravity-feed of cracks in horizontal concrete and masonry.
- Epoxy resin binder for epoxy mortar patching and overlay of interior, horizontal surfaces.
- Seal interior slabs and exterior above-grade slabs from water, chlorides, and mild chemical attack; also
improves wearability.
Advantages
- Super low viscosity.
- Convenient easy mix ratio A:B = 2:1 by volume.
- Unique, high-strength, structural adhesive for “can’t dry” surfaces.
- Deep penetrating and tenacious bonding of cracks in structural concrete.
- High-early-strength developing adhesive.
- Excellent chemical resistance in flooring systems.
Packaging
3 gal. (11 L) units; 1 gal. (3.8 L) units; 12 fl. oz. (355 ml) units, 12/case
Color
Clear, amber
Product Details
Shelf Life
2 years in original, unopened containers.
Storage Conditions
Store dry at 40–95 °F (4–35 °C).
Condition material to 65–75 °F (18–24 °C) before using.
Viscosity
Approx. 375 cps.
Compressive Strength
Neat
| 40 °F (4 °C) | 73 °F (23 °C) | 90 °F (32 °C) | |
| 4 hours | - | - | - |
| 8 hours | - | 180 psi (1.2 MPa) | 3,200 psi (22.1 MPa) |
| 16 hours | - | 4,500 psi (31.1 MPa) | 6,300 psi (43.5 MPa) |
| 1 day | - | 6,000 psi (41.4 MPa) | 9,100 psi (62.8 MPa) |
| 3 days | 4,000 psi (27.6 MPa) | 10,700 psi (73.8 MPa) | 10,500 psi (72.5 MPa) |
| 7 days | 6,800 psi (46.9 MPa) | 11,000 psi (75.9 MPa) | 10,500 psi (72.5 MPa) |
| 14 days | 10,300 psi (71.1 MPa) | 12,000 psi (82.8 MPa) | 10,500 psi (72.5 MPa) |
| 28 days | 12,400 psi (85.6 MPa) | 13,000 psi (89.7 MPa) | 10,500 psi (72.5 MPa) |
Epoxy Mortar (1: 5)
| 40 °F (4 °C) | 73 °F (23 °C) | 90 °F (32 °C) | |
| 4 hours | - | - | 800 psi (5.5 MPa) |
| 8 hours | - | - | 4,100 psi (28.3 MPa) |
| 16 hours | - | 400 psi (2.8 MPa) | 5,700 psi (39.3 MPa) |
| 1 day | 120 psi (0.8 MPa) | 5,000 psi (34.5 MPa) | 6,900 psi (47.6 MPa) |
| 3 days | 6,200 psi (42.8 MPa) | 6,800 psi (46.9 MPa) | 7,000 psi (48.3 MPa) |
| 7 days | 6,300 psi (43.5 MPa) | 7,900 psi (54.5 MPa) | 8,800 psi (60.7 MPa) |
| 14 days | 6,800 psi (46.9 MPa) | 8,500 psi (58.7 MPa) | 8,800 psi (60.7 MPa) |
| 28 days | 7,000 psi (48.3 MPa) | 8,600 psi (59.3 MPa) | 8,800 psi (60.7 MPa) |
Modulus of Elasticity in Compression
| Neat | Mortar | |
| 7 days | 3.2 x 105 psi (2,200 MPa) | - |
| 28 days | - | 8.1 x 105 psi (5,600 MPa) |
Flexural Strength
| Neat | Mortar | |
| 14 day | 14,000 psi (96,6 MPa) | 2,200 psi (15,2 MPa) |
Modulus of Elasticity in Flexure
| Neat | Mortar | |
| 14 days | 3.7 x 105 psi (2,600 MPa) | 9.5 X 105 (6,500 MPa) |
Tensile Strength
| Neat | Mortar | |
| 7 days | 8,900 psi (61.4 MPa) | 840 psi (5.8 MPa) |
Tensile Adhesion Strength
| 2 days | (moist cure) | 4,000 psi (27.6 MPa) |
| 14 days | (moist cure) | 2,900 psi (20.0 MPa) |
| 2 days | (dry cure) | 2,800 psi (19.3 MPa) |
Shear Strength
| Neat | Mortar | |
| 14 days | 5,100 psi (35,2 MPa) | 2,300 psi (15.9 MPa) |
Heat deflection temperature
| Neat | Mortar | |
| 7 day | 124 °F (51 °C) | 129 °F (54 °C) |
Water Absorption
| 7 days | 0.27 % |
Application
Mixing Ratio
Component "A": Component "B" = 2:1 by volume.
Pot Life
Approx. 25 minutes (mass of 60 grams)
Cure Time
| Tack-Free Time | 40 °F (4 °C) | 73 °F (23 °C) | 95 °F (35 °C) |
| (3-5 mils) Neat | 14–16 hours | 3–3.5 hours | 1.5–2 hours |
Coverage
1 gal. yields 231 in3 of adhesive and grout. 1 gal. of adhesive, when mixed with 5 gal. by loose volume of oven-dried aggregate, yields approximately 808.5 in3 of epoxy mortar.
SUBSTRATE PREPARATION
Surface must be clean and sound. It may be dry or damp, but free of standing water. Remove dust, laitance, grease, curing compounds, impregnations, waxes, foreign particles and disintegrated materials.
Concrete - Blast clean, shot blast or use other approved mechanical means to provide an open roughened texture.
Steel - Should be cleaned and prepared thoroughly by blast cleaning.
MIXING
Proportion 1 part Component ‘B’ to 2 parts Component ‘A’ by volume into a clean pail. Mix thoroughly for 3 minutes with Sika Paddle on low-speed (400–600 rpm) drill until uniformly blended. Mix only that quantity that can be used within its pot life. To prepare an epoxy mortar, slowly add 4–5 parts by loose volume of an ovendried aggregate to 1 part of the mixed Sikadur®-35 Hi-Mod LV and mix until uniform in consistency.
