SikaWrap® Hex-106 G

SikaWrap® Hex-106 G

Bi-directional Glass fiber fabric for structural strengthening

SikaWrap® Hex-106 G is a bi-directional (0/90) E-glass fiber fabric. Material is field laminated using Sikadur® 330 or Sikadur® Hex 300 epoxy to form a glass fiber reinforced polymer (GFRP) used to strengthen structural elements.

  • Used for shear, confinement or flexural strengthening
  • Flexible, can be wrapped around complex shapes
  • Light weight
  • Non-corrosive
  • Acid resistant
  • Low aesthetic impact
Product Data Sheet Show all documents

Usage

Load increases Seismic strengthening of:
  • Columns
  • Masonry walls
Damage to structural parts Temporary strengthening Change in structural system Design or construction defects

Advantages

  • Used for shear, confinement or flexural strengthening
  • Flexible, can be wrapped around complex shapes
  • Light weight
  • Non-corrosive
  • Acid resistant
  • Low aesthetic impact

Packaging

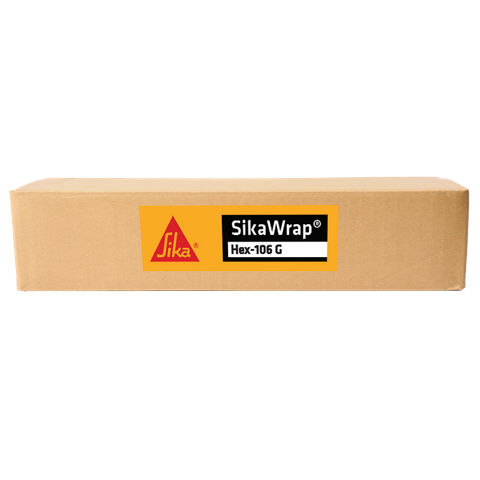

Rolls: 50 in. (1.3 m)  x 450 ft. (137 m)

Color

Black

Product Details

Sustainability / Certifications / Approvals

APPROVALS / STANDARDS

  • Approved by ICC ESR-3288
  • IBC 2015 Compliance
Product Information

Fiber Type

0 °/90 ° (bi-directional)

Shelf Life

10 years in original packaging

Storage Conditions

Store dry at 40–95 °F (4–35 °C)

Dry Fibre Density

0.092 lb./in3 (2.5 g/cm3)

Dry Fibre Thickness

0.0025 in. (0.064 mm) each fiber direction

Area Density

9.6 osy (325 gsm) total

Dry Fibre Tensile Strength

330 ksi (2,276 MPa)

Dry Fibre Modulus of Elasticity in Tension

10.5 msi (72.4 GPa)

Dry Fibre Elongation at Break

4.00 %
Technical Information

Nominal Ply Thickness

Average Ultimate Value

Design Value

-

0.007 in. (0.18 mm)

each fiber direction

Tensile Strength

Average Ultimate Value

Design Value

76.7 ksi (529 MPa)

65.6 ksi (452 MPa)*

* Average ultimate value minus 3 standard deviations

Average Ultimate Value

Design Value

 -

0.5 kips/in./ply

Tensile Modulus

Average Ultimate Value

Design Value

 -

4.24 msi (29.2 GPa)(Ef)

* Average ultimate value minus 3 standard deviations

Tensile % Elongation

Average Ultimate Value

Design Value

1.81 %

1.45 %*

* Average ultimate value minus 3 standard deviations

Tensile Stiffness

Average Ultimate Value

Design Value

-

29.7 kips/in./ply (Ef*A)

Application

Application steps

SUBSTRATE PREPARATION

Surface must be clean and sound. It may be dry or damp, but free of standing water and frost. Remove dust, laitance, grease, curing compounds, impregnations, waxes, foreign particles, disintegrated materials, and other bond inhibiting materials from the surface. Consult Sikadur® Hex 300 and Sikadur® 330 technical data sheets for additional information on surface preparation. Existing uneven surfaces must be filled with an appropriate repair mortar. The adhesive strength of the concrete must be verified following surface preparation by random pull-off testing (ASTM D4541) at the discretion of the engineer. Minimum tensile strength, 200 psi (1.4 MPa) with concrete substrate failure.



Preparation Work: Concrete - Blast clean, shotblast or use other approved mechanical means to provide an open roughened texture. In certain applications and at the engineer’s discretion, the intimate contact between the substrate and the fabric may be determined to be non-critical. In these cases, a thorough cleaning of the substrate using low pressure sand or water blasting is sufficient.



Mixing

Consult Sikadur® 330 or Sikadur® Hex 300 technical data sheets for information on epoxy resins.
