SikaWrap® Hex-113 C

SikaWrap® Hex-113 C

Bi-directional Carbon fiber fabric for structural strengthening

SikaWrap® Hex-113 C is a bi-directional carbon fiber fabric. Material is field laminated using Sikadur® 300/Hex 300, Sikadur® 301 or Sikadur® Hex 330 epoxy to form a carbon fiber reinforced polymer (CFRP) used to strengthen structural elements.

  • Lightweight fabric ideal for confined spaces
  • Can be applied in dry or wet lay-up process
  • Used for shear, confinement or flexural strengthening
  • Flexible, can be wrapped around complex shapes
  • High strength
  • Non-corrosive
  • Alkali resistant
  • Low aesthetic impact
Product Data Sheet Show all documents

Usage

Load increases
  • Increased live loads in warehouses
  • Increased traffic volumes on bridges
  • Installation of heavy machinery in industrial buildings
  • Vibrating structures
  • Changes of building utilization
Seismic strengthening
  • Column wrapping
  • Masonry walls
Damage to structural parts
  • Aging of construction materials
  • Vehicle impact
  • Fire
Change in structural system
  • Removal of walls or columns
  • Removal of slab sections for openings
Design or construction defects
  • Insufficient reinforcements
  • Insufficient structural depth


Advantages

  • Lightweight fabric ideal for confined spaces
  • Can be applied in dry or wet lay-up process
  • Used for shear, confinement or flexural strengthening
  • Flexible, can be wrapped around complex shapes
  • High strength
  • Non-corrosive
  • Alkali resistant
  • Low aesthetic impact

Packaging

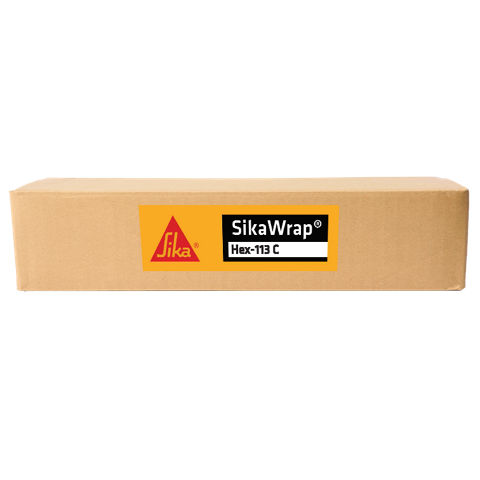

Rolls: 50 in. (1.3 m) x 300 ft. (91.4 m)

Color

Black

Product Details

Product Information

Fiber Type

0 °/90 ° (bi-directional)

Shelf Life

10 years in original packaging

Storage Conditions

Store dry at 40–95 °F (4–35 °C)

Dry Fibre Density

0.065 lb./in3 (1.8 g/cc)

Area Density

5.7 osy (196 gsm)

Dry Fibre Tensile Strength

5 x 105 psi (3,450 MPa)

Dry Fibre Modulus of Elasticity in Tension

33.4 x 106 psi (230,000 MPa)

Dry Fibre Elongation at Break

1.5 %
Technical Information

Nominal Ply Thickness

Design Value 0.010 in. (0.25 mm)

73 °F (23 °C)

50 % R.H.

Tensile Strength

Design Value 66,000 psi (456 MPa)

(ASTM D-3039)

73 °F (23 °C)

50 % R.H.

Design Value (Per Inch Width) 660 lbs/layer (2.92 kN)

(ASTM D-7565)

73 °F (23 °C)

50 % R.H.

Tensile Modulus

Design Value 6.0 x 106 psi (41,400 MPa)

(ASTM D-3039)

73 °F (23 °C)

50 % R.H.

Tensile % Elongation

Design Value 1.2 %

(ASTM D-3039)

73 °F (23 °C)

50 % R.H.

Application

Application steps

SUBSTRATE PREPARATION

Surface must be clean and sound. It may be dry or damp, but free of standing water and frost. Remove dust, laitance, grease, curing compounds, impregnations, waxes, foreign particles, disintegrated materials and other bond inhibiting materials from the surface. Consult Sikadur® Hex 300 and Sikadur® 330 technical data sheets for additional information on surface preparation. Existing uneven surfaces must be filled with an appropriate repair mortar. The adhesive strength of the concrete must be verified after surface preparation by random pull-off testing (ACI 503R) at the discretion of the engineer. Minimum tensile strength, 200 psi (1.4 MPa) with concrete substrate failure.



Preparation Work: Concrete - Blast clean, shotblast or use other approved mechanical means to provide an open roughened texture. In certain applications and at the engineer’s discretion, the intimate contact between the substrate and the fabric may be determined to be non-critical. In these cases, a thorough cleaning of the substrate using low pressure sand or water blasting is sufficient.



Mixing

Consult Sikadur® 300/Hex 300, Sikadur® 301 or Sikadur® 330 product data sheets for information.
