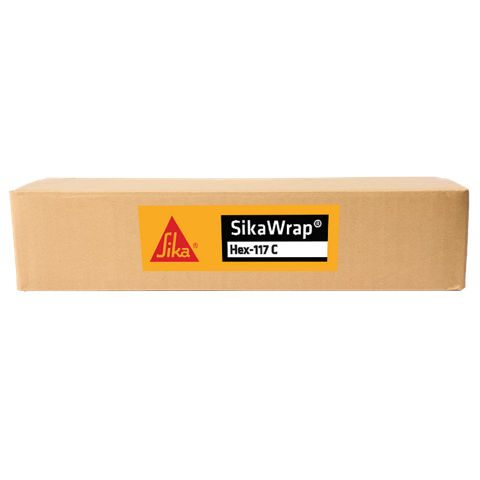

SikaWrap® Hex-117 C

SikaWrap® Hex-117 C

Carbon fiber fabric for structural strengthening

SikaWrap Hex 117C is a unidirectional carbon fiber fabric. Material is field laminated using either Sikadur 300/Hex 300, Sikadur 301 or Sikadur 330 epoxy to form a carbon fiber reinforced polymer (CFRP) used to strengthen structural elements.

  • Lightweight fabric ideal for confined spaces
  • Used for shear, confinement or flexural strengthening
  • Flexible, can be wrapped around complex shapes
  • High strength
  • Non-corrosive
  • Alkali resistant
  • Low aesthetic impact
Product Data Sheet Show all documents

Usage

Load increases
  • Increased live loads in warehouses
  • Increased traffic volumes on bridges
  • Installation of heavy machinery in industrial buildings
  • Vibrating structures
  • Changes of building utilization
Seismic strengthening
  • Column wrapping
  • Masonry walls
  • Damage to structural parts
  • Aging of construction materials
  • Vehicle impact
  • Fire
Change in structural system
  • Removal of walls or columns
  • Removal of slab sections for openings
Design or construction defects
  • Insufficient reinforcements
  • Insufficient structural depth


Advantages

  • Lightweight fabric ideal for confined spaces
  • Used for shear, confinement or flexural strengthening
  • Flexible, can be wrapped around complex shapes
  • High strength
  • Non-corrosive
  • Alkali resistant
  • Low aesthetic impact

Packaging

Rolls: 24 in. (0.6 m) x 300 ft. (91.4 m)

Color

Black

Product Details

Product Information

Shelf Life

10 years in original packaging

Storage Conditions

Store dry at 40–95 °F (4–35 °C)

Fiber Type

0 ° (unidirectional)

Area Density

9.0 osy (300 gsm)

Dry fibre density

0.065 lb./in3 (1.8 g/cc)

Dry fibre modulus of elasticity in tension

34 x 106 psi (234,000 MPa)

Dry fibre elongation at break

1.5 %

Dry fibre tensile strength

550,000 psi (3,793 MPa)
Technical Information

Nominal Ply Thickness

Design Value 0.02 in. (0.51 mm)

73 °F (23 °C)

50 % R.H.

Tensile Strength

Design Value 1.05 x 105 psi (724 MPa)

(ASTM D3039)

73 °F (23 °C)

50 % R.H.

Design Value (per Inch Width) 2,000 lbs/layer (9.3kN)

(ASTM C7565)

73 °F (23 °C)

50 % R.H.

Tensile Modulus

Design Value 8.2 x 106 psi (56,500 MPa)

(ASTM D3039)

73 °F (23 °C)

50 % R.H.

Tensile % Elongation

Design Value 1.0 %

(ASTM D3039)

73 °F (23 °C)

50 % R.H.

Application

Application steps

SUBSTRATE PREPARATION

Surface must be clean and sound. It may be dry or damp, but free of standing water and frost. Remove dust, laitance, grease, curing compounds, impregnations, waxes, foreign particles, disintegrated materials and other bond inhibiting materials from the surface. Consult Sikadur® Hex 300 and Sikadur® 330 technical data sheets for additional information on surface preparation. Existing uneven surfaces must be filled with an appropriate repair mortar. The adhesive strength of the concrete must be verified after surface preparation by random pull-off testing (ACI 503R) at the discretion of the engineer. Minimum tensile strength, 200 psi (1.4 MPa) with concrete substrate failure.



Preparation Work: Concrete - Blast clean, shotblast or use other approved mechanical means to provide an open roughened texture. In certain applications and at the engineer’s discretion, the intimate contact between the substrate and the fabric may be determined to be non-critical. In these cases, a thorough cleaning of the substrate using low pressure sand or water blasting is sufficient.



Mixing

Consult Sikadur® Hex 300 or Sikadur® 330 technical data sheet for information on epoxy resin.
