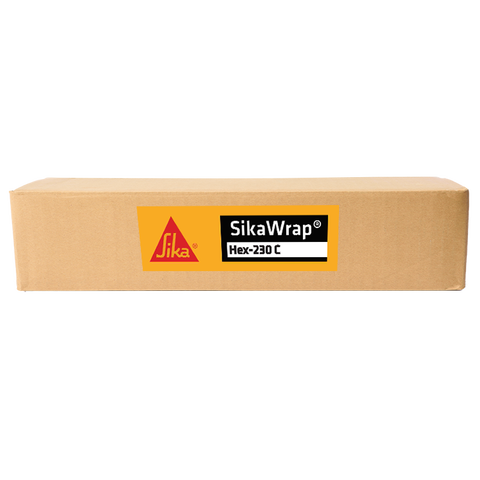

SikaWrap® Hex-230 C

• Approved by ICC ESR-3288
• IBC 2015 Compliance

0° (unidirectional)

10 years

Store dry at 40°-95°F (4°-35°C)

34 msi (234.5 GPa)

550 ksi (3,793 MPa)

1.5 %

0.005 in. (0.128mm)

6.7 oz./yd² (230 g/m²)

0.065 lbs./in³ (1.8 g/cm³)

*Average ultimate value minus 3 standard deviations

*Average ultimate value minus 3 standard deviations

*Average ultimate value minus 3 standard deviations

*Average ultimate value minus 3 standard deviations

Surface must be clean and sound. It may be dry or damp, but free of standing water and frost. Remove dust, laitance, grease, curing compounds, impregnations, waxes, foreign particles, disintegrated materials, and other bond inhibiting materials from the surface. Consult Sikadur® 300, Sikadur® Hex 300/306 and Sikadur® 330 technical data sheets for additional information on surface preparation. Existing uneven surfaces must be filled with an appropriate repair mortar. The adhesive strength of the concrete must be verified after surface preparation by random pull-off testing (ACI 503R) at the discretion of the engineer. Minimum tensile strength, 200 psi (1.4 MPa) with concrete substrate failure.

Preparation Work: Concrete

Blast clean, shot blast or use other approved mechanical means to provide an open roughened texture. In certain applications and at the engineer’s discretion, the intimate contact between the substrate and the fabric may be determined to be non-critical. In these cases, a thorough cleaning of the substrate using low pressure sand or water blasting is sufficient.

Mixing

Consult Sikadur® Hex 300 or Sikadur® 330 technical data sheets for information on epoxy resins.
