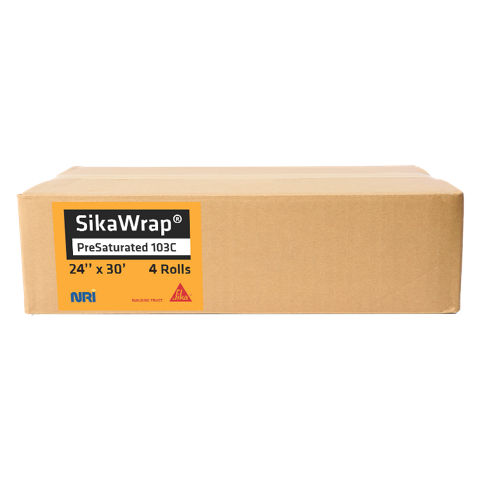

SikaWrap®-103 C Pre-Saturated

• Use in accordance with American Concrete Institute (ACI) 440 Guides for the Design and Construction of Externally Bonded FRP Systems for Strengthening Concrete / Unreinforced Masonry Structures.

Primary Fiber Direction: 0°F (unidirectional) - Carbon

Color: Black

1 year from date of manufacture if stored properly in original, unopened, undamaged, sealed packaging.

Store dry at 40°- 95° F (4°- 35° C)

0.065 lbs./in³ (1.8 g/cm³)

0.0135 in. (0.34 mm)

18 oz. / sq. yd. (610 g/m²)

5.5 x 10⁵ psi (3,793 MPa)

34 x 10⁶ psi (234.4 GPa)

1.5%

* Average ultimate value minus 3 standard deviations

* Average ultimate value minus 3 standard deviations

* Average ultimate value minus 3 standard deviations

Surface must be clean and sound. It may be dry or damp, but free of standing water and frost. Remove dust, laitance, grease, curing compounds, impregnations, waxes, foreign particles, disintegrated materials and other bond inhibiting materials from the surface. Consult the current product data sheets for Sikadur-330 / Sikadur 340 / Sikadur 345 for additional information on surface preparation. Existing uneven surfaces must be filled with an appropriate repair mortar. The adhesive strength of the concrete must be verified after surface preparation by random pull-off testing (ASTM D 4541) at the discretion of the engineer. Minimum tensile strength, 200 psi (1.4 MPa) with concrete substrate failure is typical.

Preparation Work: Concrete - Blast clean, shotblast or use other approved mechanical means to provide a roughened, open-textured surface (minimum ICRI CSP-3).  Round all corners to 1/2” radius in certain “contact critical” applications and at the engineers discretion, a thorough cleaning of the substrate using low pressure sand blasting or water blasting may be sufficient. If a wet method is chosen, a thorough amount of drying time will be needed.
