SikaTop®-111 Plus
Two-component, polymer-modified, cementitious, screed mortar plus Sika FerroGard®-901 penetrating corrosion inhibitor
0.0 (0)
SikaTop®-111 Plus is a two-component, polymer-modified, Portland cement-based, fast-setting, screed mortar. It is a high performance repair mortar for horizontal, vertical and overhead surfaces in form and pour applications. It offers the additional benefit of Sika FerroGard®-901, a penetrating corrosion inhibitor included in its formulation.
- Extremely low shrinkage proven by four industry standard test methods
- High compressive and flexural strengths
- Increased freeze/thaw durability and resistance to deicing salts
- Increased density - improved carbon dioxide resistance (carbonation) without adversely affecting water vapor transmission (not a vapor barrier)
- Enhanced with Sika FerroGard®-901, a penetrating corrosion inhibitor - reduces corrosion even in the adjacent concrete
Usage
- On grade, above grade, and below grade concrete
- Horizontal surfaces (e.g. for spall repairs on flat work, or as an overlay): pour and screed
- Vertical and overhead surface repairs when formed and poured, or formed and pumped with an appropriate pump
- Structural repair material for water and wastewater treatment plants, parking facilities, industrial plants, walkways, bridges, tunnels, dams, abutments, floors and balconies
- Approved for repairs over cathodic protection systems
- Free flowing repair mortar for hard-to-reach areas
- Filler for voids and cavities
- Repair of substrates such as concrete, mortar, and masonry
Advantages
- Extremely low shrinkage proven by four industry standard test methods
- High compressive and flexural strengths
- Increased freeze/thaw durability and resistance to deicing salts
- Increased density - improved carbon dioxide resistance (carbonation) without adversely affecting water vapor transmission (not a vapor barrier)
- Enhanced with Sika FerroGard®-901, a penetrating corrosion inhibitor - reduces corrosion even in the adjacent concrete

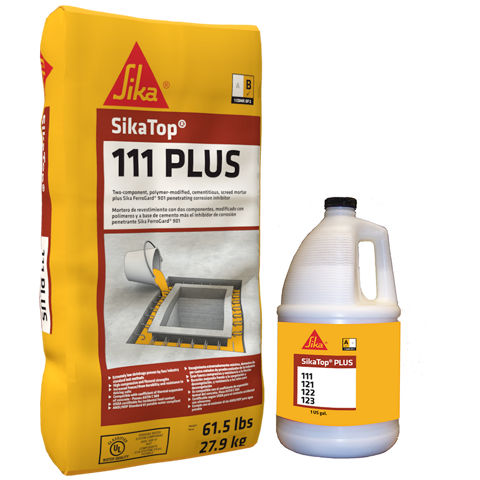

Packaging
SikaTop® 'A' Component: 1 gallon (3.8 liters) plastic jug; 4 jugs/carton
SikaTop®-111 Plus 'B' Component: 61.5 lb (27.9 kg) bag
Color
'A' Component: White liquid 'B' Component: Gray powder
'A' + 'B' mixed: Gray mortar
Product Details
APPROVALS / STANDARDS
- Compatible with coefficient of thermal expansion of concrete - Passes ASTM C 884
- USDA certifiable for incidental food contact
- Independently certified for NSF/ANSI 61 (potable water) compliance
Shelf Life
12 months from date of production if stored properly in original, unopened and undamaged, sealed packaging
Storage Conditions
Store dry at 40° – 95° F (4° – 35° C)
Protect 'A' Component from freezing. If frozen, discard material
Protect 'B' Component from moisture. If damp, discard material
Compressive Strength
| 1 day | 2,500 psi (17.2 MPa) |
| 7 days | 5,500 psi (37.9 MPa) |
| 28 days | 6,500 psi (44.8 MPa) |
Modulus of Elasticity in Compression
| 7 days | 3.0 x 106 psi (20.7 GPa) |
Flexural Strength
| 28 days | 1,400 psi (9.7 MPa) |
Splitting tensile strength
| 28 days | 600 psi (4.1 MPa) |
Tensile Adhesion Strength
| 28 days | > 500 psi (3.4 MPa) substrate failure |
Slant Shear Strength
| 28 days | 2,000 psi (13.8 MPa) |
* Mortar scrubbed into mechanically prepared, saturated surface dry (SSD) substrate.
73o F (23o C), 50% R.H.
Shrinkage
| 28 days | < 0.05 % |
Ring test
| Days | > 70 days |
| Average Maximum Strain | -16 μstrain |
| Average Stress Rate | 1.46 psi / day (0.01 MPa / day) |
| Potential for Cracking | Low |
Baenziger block
| 90 days | No cracking |
Freeze-Thaw Stability
| 300 cycles | 98% |
Rapid Chloride Permeability
| < 500 Coulombs | (ASTM C 1202) 73o F (23o C), 50% R.H. |
Application
Mixing Ratio
7/8 - 1 gallon (3.3 - 3.8 liters) of 'A' Component : 61.5 lbs (27.9 kg) of 'B' Component
Fresh mortar density
| 136 lb/ft3 (2.18 kg/l) | (ASTM C 138) 73o F (23o C), 50% R.H. |
Layer Thickness
| Minimum | Maximum in one lift * | |
| Neat | 1/2 inch (12 mm) | 1 inch (25 mm) |
| Extended | 1 inch (25 mm) | 6 inches (152 mm) |
* If repair requires multiple lifts, each lift should be applied as soon as the previous lift has developed enough initial strength to support it.
Product Temperature
65° - 75° F (18° - 24° C)
Ambient Air Temperature
40° - 95° F (4° - 35° C)
Substrate Temperature
40° - 95° F (4° - 35° C)
Set Time
| 40 – 70 minutes | (ASTM C 266) 73o F (23o C), 50% R.H. |
Final set time
| > 90 minutes | (ASTM C 266) 73o F (23o C), 50% R.H. |
Finishing time
50 – 120 minutes
Waiting / Recoat Times
Refer to Sika Tech Brief # 18-01 for minimum cure times prior to overcoating.
Coverage
| Neat | 0.5 ft3 (0.01 m3) |
| Extended with 42 lbs (19 kg) of 3/8 inch (10 mm) coarse aggregate | 0.75 ft3 (0.02 m3) |
(Yield figures do not include allowance for surface profile and porosity or material waste)
MIXING
- Pour approximately 7 pints (3.3 liters) of SikaTop® 'A' (liquid) into a suitably sized mixing container.
- Add entire bag's contents of SikaTop®-111 Plus 'B' Component (powder) to the container while mixing continuously with a low speed drill (400–600 rpm) and mixing paddle or mortar mixer.
- Add up to an additional maximum 1 pint (0.5 liter) of SikaTop® 'A' if needed for the desired consistency.
- Mix to a uniform consistency, maximum 3 minutes. Thorough mixing and proper proportioning of the two components is necessary.
EXTENSION WITH AGGREGATES
- Pour all of SikaTop® 'A' Component (liquid) into a suitably sized mixing container or concrete mixer.
- Add entire bag's contents of SikaTop®-111 Plus 'B' Component (powder) to the container while mixing continuously, then introduce 3/8 inch (10 mm) coarse aggregate at desired quantity.
- Mix to uniform consistency, maximum 3 minutes. Thorough mixing and proper proportioning of all components is necessary.
- The aggregate must be non-reactive (reference ASTM C 1260, ASTM C 227 and ASTM C 289), clean, well graded, saturated surface dry (SSD), have low absorption, high density, and comply with ASTM C 33, size number 8 per Table 2.
- Variances in aggregate quality may result in different strengths and performance.
- The typical addition rate is 42 lbs (19 kg) of aggregate per mix. This is approximately 3.0 - 3.5 gallons (11.3 - 13.2 liters) of aggregate by loose volume.
APPLICATION
- Ensure substrate is properly prepared and saturated surface dry (SSD) before application.
- Ensure good intimate contact with the substrate is achieved either through a bonding agent or a scrub coat application, or other suitable means such as vibration of the material or pumping under pressure.
Horizontal Installations:
- After filling repair area, screed the material.
- Allow SikaTop®-111 Plus to set to desired stiffness, then finish with wood or sponge float for a smooth surface or broom or burlap-drag for a rough finish.
- If a smoother finish is desired, a magnesium float should be used.
- To assist in the finishing process, use SikaFilm® finishing aid. Consult current Product Data Sheet.
Form and Pour / Pump Installations:
- Vibrate form while pouring or pumping.
- Pump Extended mixes with a variable pressure concrete pump.
- Continue pumping until a 3 to 5 psi (20 - 34 Pa) increase in normal line pressure is evident then STOP pumping.
- Form should not deflect.
- Vent to be capped when steady flow is evident, and forms to be stripped when appropriate.
- Begin and finish multiple lift repairs on the same day.
- Refer to ACI 305 the "Guide to Hot Weather Concreting" or ACI 306 the "Guide to Cold Weather Concreting" when there is a need to place this product while either hot or cold temperatures prevail. Thinner placements will be more sensitive to the temperature conditions.
CURING TREATMENT
- As per ACI recommendations for Portland-cement concrete, curing is required.
- Moist curing should commence immediately after finishing.
- Moist cure with wet burlap and polyethylene, a fine mist of water or a water-based, compatible* curing compound meeting ASTM C 309.
- Curing compounds adversely affect the adhesion of following layers of mortar, leveling mortar or protective coatings.
- Protect newly applied material from direct sunlight, wind, rain and frost.
- To prevent from freezing, cover with insulating material (e.g. curing blanket).
*Pretesting of curing compound for compatibility is recommended.
