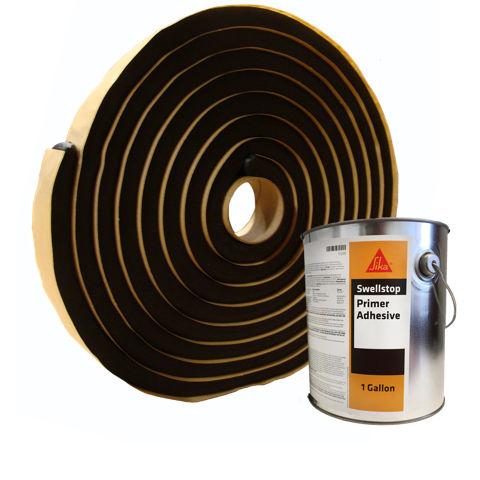

Swellstop Primer

Swellstop Primer Adhesive and Swellstop WB Primer Adhesive

Swellstop Primer Adhesive (solvent-based) and Swellstop WB Primer Adhesive (water-based) are used for adhering Sika® Greenstreak’s Swellstop strip-applied waterstop to concrete.

Swellstop WB Primer Adhesive
  • Low VOC content/VOC compliant
  • Non-hazmat shipping
Product Data Sheet
Show all documents

Usage

Swellstop Primer Adhesive and Swellstop WB Primer Adhesive are used in conjunction with Sika® Greenstreak’s Swellstop strip-applied waterstop in nonmoving joint applications, such as retaining walls, box culverts, penetrations, concrete pipes, vaults, slabs, elevator shafts, etc.

Advantages

Swellstop WB Primer Adhesive
  • Low VOC content/VOC compliant
  • Non-hazmat shipping

Packaging

Swellstop Primer Adhesive1 gallon or 1 quart pails
Swellstop WB Primer Adhesive1 gallon pails

Color

Swellstop Primer AdhesiveDark brown to black colored liquid
Swellstop WB Primer AdhesiveGreen colored liquid

Product Details

Product Information

Shelf Life

12 months minimum when stored in the unopened, original packaging in warehouse conditions.

Storage Conditions

After the container has been initially opened, maintain a tight seal at room temperature not to exceed 90°F. For Swellstop WB Primer Adhesive, do not allow to freeze.

Density

Swellstop Primer Adhesive

Specific Gravity0.88 +/- 0.05 g/cm³

(ASTM D297)

% Solids36+/-2% by weight

(ASTM C771)



Swellstop WB Primer Adhesive

Specific Gravity1.01 +/- 0.05 g/cm³

(ASTM D297)

Freezing point

Swellstop WB Primer Adhesive32° F

Viscosity

Swellstop Primer Adhesive3,000-5,000 cps (ASTM D2196)
Swellstop WB Primer Adhesive

<50 cps (ASTM D2196)

pH-Value

Swellstop WB Primer Adhesive6-8 (ASTM E70)

Volatile organic compound (VOC) content

Swellstop Primer Adhesive568 g/L less water and exempt solvent (EPA Method 24)
Swellstop WB Primer Adhesive15 g/L less water and exempt solvent (EPA Method 24)

Application

Application Information

Cure Time

Allow Swellstop Primer Adhesive to dry for a minimum of 2 hours until it is tack-free.

Allow Swellstop WB Primer to dry for a minimum of 15-30 minutes depending on temperature and humidity.
Consumption

Coverage

Swellstop Primer AdhesiveApproximately 800-900 LF per Gallon
Swellstop WB Primer AdhesiveApproximately 2,400 LF per Gallon
