SikaFuko® Eco-1
PVC Re-injectable Hose For Sealing Construction Joints
SikaFuko® Eco-1 is a re-injectable hose for sealing various construction joints in watertight concrete structures. To seal the joint, SikaFuko® Eco-1 is injected with suitable Sika® Injection materials, such as acrylate and cement suspensions (for multiple injections) or polyurethane resins (for single injection).
- Multiple re-injections with Sika injection acrylate resins or microfine cement suspensions
- One time injectable with Sika injection polyurethane injection resins
- Ideal back-up solution for combination with waterstops
- Easy to secure and install
- Tested in water pressures up to 10 bar (100m)
- Suitable for many different structures and construction methods
Usage
- Sealing construction joints
- Suitable for many different structures and construction methods where additional joint security/safety is required
- Prevents water ingress through concrete joints in the following typical structures: Water retaining or excluding structures, water reservoirs, dams, canals, sewage treatment plants, tunnels, subways, retaining walls
- As a back-up system for waterbars
- Enables testing for water leaks
Advantages
- Multiple re-injections with Sika injection acrylate resins or microfine cement suspensions
- One time injectable with Sika injection polyurethane injection resins
- Ideal back-up solution for combination with waterstops
- Easy to secure and install
- Tested in water pressures up to 10 bar (100m)
- Suitable for many different structures and construction methods
Packaging
Combi-pack box containing:
- 200 m or 50 m SikaFuko® Eco-1 hose
- 10 m green PVC-hose (Inlet)
- 10 m white PVC-hose (Outlet)
Accessories
- 2 m connecting pipe
- 4 m heat shrink sleeve
- 50 closure plugs
- 1 can of adhesive
- 1 roll of tape
- 800 fastening clips
All accessories including inlet and outlet PVC-hose can also be ordered separately.
Refer to current price list for packaging variations.
Product Details
Chemical Base
| White inner core | PVC |
| Red outer layer | Foamed plastic |
Shelf Life
48 months from date of production
Storage Conditions
The product must be stored in original, unopened and undamaged sealed packaging in dry conditions at temperatures between +5 °C and +35 °C. Always refer to packaging.
Diameter
| Internal hose diameter | 6 mm (1/4'') |

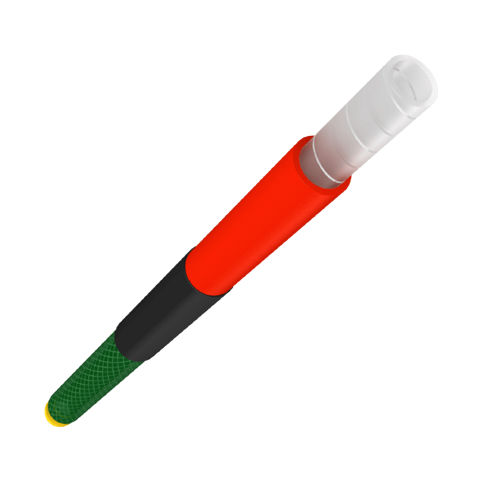

System Structure
SikaFuko® Eco-1
| A | Injection channel |
| B | White perforated PVC spiral hose core to support the concrete pressure |
| C | Foamed plastic outer layer as a sealing membrane and to prevent cement paste penetration during concreting |
| D | Staggered slot perforations in the foamed plastic outer layer for the uniform discharge of injection resins |
Shore A Hardness
| White inner core | D 50 +/- 3 |
| Red outer layer | A 80 +/- 5 (not expanded) |
Tensile Strength
| White inner core | ≥ 10 N/mm2 |
| Red outer layer | ≥ 10 N/mm2 (not expanded) |
Elongation
| White inner core | ≥ 100 % |
| Red outer layer | > 50 % |
Application
SUBSTRATE PREPARATION
Concrete surface must be clean and all loose materials removed before installing hose and placing concrete.
