SCOFIELD® Integral Color SG
SCOFIELD® Integral Color SG is a cost-effective means to permanently color concrete and other cementitious materials. It is packaged in easy to use disintegrating bags that can be used to make standard colors, or mixed to develop hundreds of permanent color variations.
UsageSCOFIELD® Integral Color SG is ideal for use in ready-mix concrete applications or to color manufactured concrete products such as colored concrete block, brick, paver, or precast structures.
AdvantagesSCOFIELD® Integral Color SG adds color that is weather resistant, UV stable, lightfast, and alkali resistant. It contains no materials that initiate, accelerate, or promote the corrosion of steel, coated metal, or plastic concrete reinforcements. It is packaged in easy to use disintegrating bags that can be used to make single standard colors, or mixed together to develop hundreds of color variations.

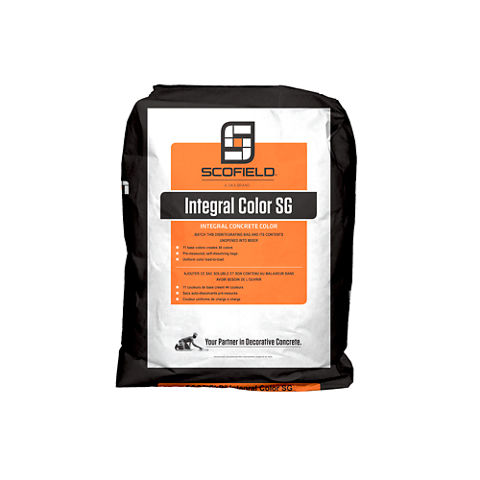

SCOFIELD® Integral Color SG is available in 11 pound disintegrating bags that can be added directly to the concrete mix.
SCOFIELD® Integral Color SG is available in 11 prepackaged standard colors as depicted in Scofield’s Color Chart A-362 SCOFIELD® Integral Color SG. These may be used individually or blended to produce hundreds of colors.
APPROVALS / STANDARDS
All pigments used conform to the requirements of ASTM C 979 Pigments for Integrally Colored Concrete.
Synthetic iron oxide pigments.
Keep dry and moisture free.
Volatile organic compound (VOC) content
SCOFIELD® Integral Color SG is designed to have minimal effect on concrete plastic and hardened properties, and to minimally interact with other concrete admixtures. As all chemical admixture interactions cannot be predicted, always test final mix designs with actual materials to be used, and perform a jobsite test as described later in this bulletin.
Color saturation and intensity is determined by the amount of SCOFIELD® Integral Color SG used per 94 pound sack of cement. Numbers shown on the Color chart after the "SG" identifier represent the dosage in pounds per sack of cement to achieve the color shown. SG078-2 indicates that 2 pounds of SCOFIELD® Integral Color SG per sack of cement is required to make that color.
If the mix contains supplementary cementitious materials such as fly ash or blast-furnace slag, their weight must be added to the weight of the cement when determining the correct SCOFIELD® Integral Color SG dosage.
Factors Influencing Final Color & Appearance
Colors represented on the SCOFIELD® Integral Color SG Color Chart A-362 depict samples of broom finished concrete made with medium gray cement and cured with SCOFIELD® Cureseal™ 700.The final color and appearance obtained on the jobsite will be influenced by concrete composition, surface finishing technique, and curing compound/sealer selection.
Concrete composition variations that can impact color include cement type and color, aggregate selection, and the use of pozzolans such as slag or fly ash. Differences in sealer or curing compound type, such as water or solvent based, or if no sealer is used, can also influence final appearance.
Finishing techniques will influence final concrete appearance. Different tools such as wood floats, magnesium floats, steel trowels, brooms, and edging tools, will each influence color, surface texture, sealer penetration, and final cured concrete appearance differently. Do not change tool types once work has begun.
Changes in water content and water-to-cement ratio, both in the mix and on the concrete surface during finishing, can influence the final surface color. Mix designs that develop excessive bleed water can float non-uniform cement/SCOFIELD® Integral Color SG ratios, and cause uneven or weak coloring. Once mix designs are established, do not add water to alter concrete plastic properties.
Do not add water to loosen partially cured loads. Do not use “watering” sprinklers as colored concrete cures, or use wet brooms and tools while finishing. Any of these will likely result in inconsistent concrete color.
Placement and Finishing Tips
As freshly placed concrete cures, its color will vary with differences in surface moisture. Concrete curing in shaded areas or in the center of large slabs will surface dry slower than those exposed to sunlight or closer to form edges. This can cause color variations that will often fade with time.
Avoid high salt aggregates that can cause efflorescence that can make color irregular. These visual differences can be long lasting, and raise questions about the quality of the concrete placement. Use LITHOCHROME® Colorwax™ tinted to match the final color of the cured concrete and avoid these problems and deliver jobs that are uniform in color and appearance. Always evaluate composition and finishing techniques as described below.
Placements to be Ground and Polished
Use of 1 bottle of SCOFIELD® Ready-Mix Truck Defoamer per concrete truckload to minimize bug holes and air voids.
Reinforcing Fiber Interactions.
If high air content is experienced with reinforcing fibers, pre-wet the fibers by tumbling in the mixer three minutes with water, colorant, and 1 bottle of SCOFIELD® Ready-Mix Truck Defoamer per truckload before batching concrete into the mixer.
Jobsite Test Sections
Prior to large scale production, the concrete or cementitious mix design for each color to be produced must be made. Conduct small scale testing to demonstrate concrete from the mix design meets all slump, flow, air content, compressive strength, and any other required concrete specifications.
Prior to general jobsite use, representative Jobsite Test Section(s) or “Mock-Ups” must be produced and approved for each individual concrete color mix design, surface finish/texture, and for each curing compound/sealer combination that will be created.
Use Jobsite Test Sections to verify entire system suitability including frame/mold and foundation preparation methods, surface concrete specification compliance, finishing techniques, safety procedures, and achieved performance of the fresh and fully cured concrete. When applicable, test completed systems for wet and dry slip resistance. Evaluate polishing or coating application techniques, final color, and visual appearance. Do not proceed with products, techniques, or finishing systems that do not meet required specifications or meet with site owner approval.
Selected Jobsite Test Sections should be in close proximity to the larger job area, and made from the same concrete mix design that will be used on the larger project. Test sections should be sized to be representative of the finished project, and be produced by the same workers who will perform the project installation.
