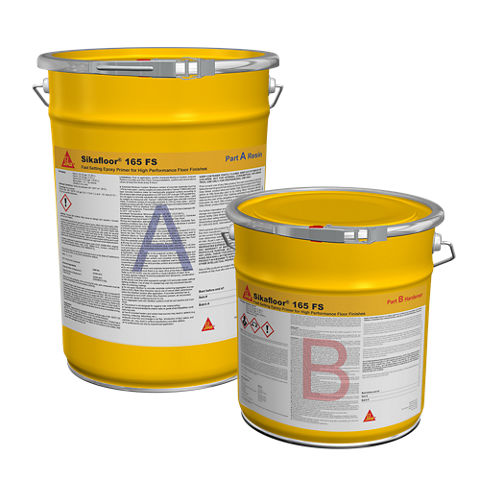

Sikafloor®-165 FS
0.0 (0)
Sikafloor®-165 FS is a two part, epoxy resin used as primer/basecoat.
- Excellent penetration and adhesion
- Ease of application
- Reduced recoat times
- 100 % solids as supplied
Usage
Sikafloor®-165 FS is designed as a fast setting primer/ basecoat for Sikafloor epoxy and urethane coatings, as well as for broadcast and troweled systems. When used as a primer, Sikafloor®-165 FS can be considered where ≤ 4 % moisture content by mass (pbw – part by weight) is measured on concrete substrate with Tramex® CME/CMExpert type concrete moisture meter.Advantages
- Excellent penetration and adhesion
- Ease of application
- Reduced recoat times
- 100 % solids as supplied
Packaging
| Component A | 3 US gallon. (11.4L) fill in 5 gallon pail |
| Component B | 2 US gallon. (7.5 L) fill in 2 gallon pail |
| kit A+B | 5 US gal. (18.9 L) |
(Ready to mix unit)
Color
Available in Clear, Oxford Grey and Beige Rose.
It can be pigmented with Sikafloor Epoxy Color Additive-N, one [1] quart pigment per 5 US gallon mix unit.
White, Safety Yellow, and Tile Red may require two [2] quarts per mixed unit.
Product Details
Shelf Life
24 months in original unopened container under proper storage conditions.
Storage Conditions
Store dry between 40°F (4 °C) and 85°F (30 °C)
Solid Content
~ 100 % (by volume) / ~ 100 % (by weight)
Volatile organic compound (VOC) content
| 62 g/L (A+B Combined) | Clear |
| 36 g/L (A+B Combined) | Colored |
Shore D Hardness
| 85 | ASTM D2240 at 73°F (23°C) and 50% R.H |
Abrasion Resistance
| -0.095g (CS-17) 1000 rotations/1000g | ASTM D4060 at 73°F (23°C) and 50% R.H |
Compressive Strength
| 10,877 Psi (75 MPa) | ASTM D695 at 73°F (23°C) and 50% R.H |
Flexural Strength
| 13,053 Psi (91 MPa) | ASTM D790 at 73°F (23°C) and 50% R.H |
Tensile Strength
| 8,412 Psi (75MPa) | ASTM D638 at 73°F (23°C) and 50% R.H |
Indentation
| 1.5% | MIL-PRF- 24613 at 73°F (23°C) and 50% R.H |
Water Absorption
| 1.51% | ASTM C413 at 73°F (23°C) and 50% R.H |
Application
Mixing Ratio
1.5 : 1 by volume
Pot Life
| Material Temperature | Time |
| 50 °F (10 °C) | ~ 20 minutes |
| 68 °F (20 °C) | ~ 15 minutes |
| 86 °F (30 °C) | ~ 10 minutes |
Pot life is visible. Do not apply after indicated pot life is exceeded.
Waiting / Recoat Times
Before applying second coat, Sikafloor Epoxy or Polyurethane
on Sikafloor®-165 FS allow:
| Substrate Temperature | Minimum | Maximum |
| 50 °F (10°C) | 8 hours | 48 hours |
| 68 °F (20°C) | 3 hours | 24 hours |
| 86 °F (30°C) | 2 hours | 18 hours |
Coverage
160–320 ft2 / US gal (3.9–7.8 m2 / L) at 5–10 mils (0.13–0.25 mm) wet film thickness.
MIXING
Mixing Ratio - 1.5 : 1 by volume.
Each component must be pre-mixed separately to ensure product uniformity.
Primer
Premix each component separately. Empty Component B (Hardener) in the correct mix ratio into Component A (Resin). Mix the combined components for at least 3 minutes using a low speed drill (300–450 rpm) and Exomixer or Jiffy type paddle suited to the volume of the mixing container to minimize entrapped air. Be careful not to introduce any air while mixing.
Make sure the contents are completely mixed to avoid any weak or partially cured spots in the coating. During the mixing operation, scrape down the sides and bottom of the container with a flat or straight edge tool at least once to ensure complete mixing.
Do not mix more material than can be applied within the working time limits (i.e. Pot Life) at the actual field temperature.
APPLICATION
Apply primer/basecoat by squeegee at the rate of 160–320 ft2 / US gal (3.9–7.8 m2 / L) at 5–10 mils (0.13–0.25 mm) wet film thickness (w.f.t.) and back roll with pressure. Coverage will vary depending on the porosity of the prepared floor. Product has a limited Pot Life, see Typical Data.
Do not apply by dipping roller into mixing container. Pour a bead of product in the form of a ribbon on the surface to be coated, then spread with squeegee and back roll. Ensure that the coating is pore-free and pinhole free and provides uniform and complete coverage over the entire concrete substrate.
If necessary, apply an additional coat to ensure the coating is pore-free and pinhole-free and provides uniform and complete coverage over the entire concrete substrate.
