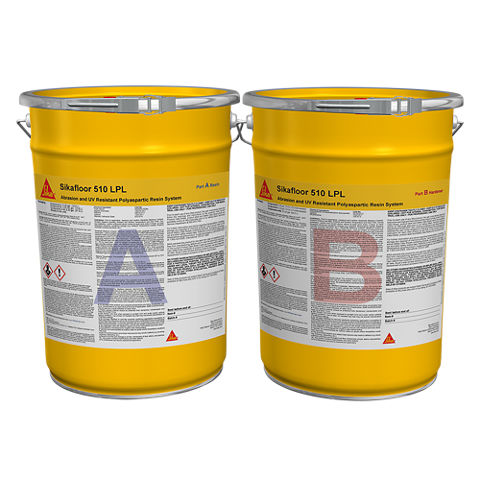

Sikafloor®-510 N LPL
Abrasion and UV Resistant Polyaspartic Resin System
0.0 (0)
Sikafloor®-510 N LPL is a water clear, two-component, high solids, low-viscosity, high strength, fast cure, UV resistant, Polyaspartic urethane coating system with a reduced odor and low VOC. Sikafloor®-510 N LPL has an extended working time and usable pot-life, especially in elevated temperatures and humid conditions.
- Very low odor
- Resists a very wide range of organic and inorganic acids, alkalis, amines, salts and solvents.
- Rapid return to service, fast turnaround
- Extended working time
- Durable, impermeable and seamless
- Superior mechanical resistance.
- Excellent UV resistance
- Excellent chemical resistance
- Superior aesthetic finish.
- Low maintenance.
Usage
Sikafloor®-510 N LPL can be used as a concrete primer, binder, and sealer especially when fast cure times, reduced odor, and UV resistance are required.Advantages
- Very low odor
- Resists a very wide range of organic and inorganic acids, alkalis, amines, salts and solvents.
- Rapid return to service, fast turnaround
- Extended working time
- Durable, impermeable and seamless
- Superior mechanical resistance.
- Excellent UV resistance
- Excellent chemical resistance
- Superior aesthetic finish.
- Low maintenance.
Packaging
Components A | 5 US gal. (18.9 L) |
Components B: | 3.33 US gal. (12.6L) |
Components A+B: | 8.33 US gal. (31.5 L) |
Color
Clear. Do not pigment.
Product Details
Shelf Life
Shelf Life 1 year in original, unopened packaging.
Storage Conditions
Store dry at 40° - 90°F (4° - 32°C). Condition product between 65° - 85°F (18° - 30°C) before using.
Volatile organic compound (VOC) content
50 g/l | Components (A+B) |
52 g/l | Components (A+ B+ Sikafloor-372 Urethane Accelerator) |
Shore D Hardness
80 | ASTM D-2240 at 73°F (23°C) and 50% R.H |
Abrasion Resistance
37 mg loss (CS-17 wheel, 1000 cycles, 1000 gm load) | ASTM D-4060 at 73°F (23°C) and 50% R.H |
Tensile Strength
3,224 psi (22.23 MPa) | ASTM C-307 at 73°F (23°C) and 50% R.H |
Tensile Adhesion Strength
> 400 psi (2.7 MPa) (100% concrete failure) | ASTM D-4541 at 73°F (23°C) and 50% R.H |
Chemical Resistance
Please consult Sikafloor Technical Services.
Service Temperature
50°F min., 250°F max. (4°C min., 121°C max.)
Coefficient of Friction
0.51 Dynamic Wet* Smooth coating | ANSI 137.1/BOT 3000 73°F (23°C) and 50 % R.H |
*Does not directly correlate to other methods of measuring coefficient of friction. Consult technical service for more information.
Application
Mixing Ratio
3 : 2 by volume.
Product Temperature
Precondition material for at least 24 hours between 65° to 75°F (18° to 24°C)
Ambient Air Temperature
50°F min., 85°F max. (4°C min., 30°C max.)
Pot Life
Material Temperature | Time |
+50°F (10°C) | 40 minutes |
+68°F (20°C) | 30 minutes |
+86°F (30°C) | 20 minutes |
Cure Time
Ambient & Substrate Temperature | Foot traffic | Light traffic | Full cure |
+68°F (20°C) | 4 hours | 8 hours | 5 days |
Waiting / Recoat Times
Before applying second coat of Sikafloor 510N LPL allow:
Ambient & Substrate Temperature | Minimum | Maximum |
+68°F (20°C) | 90 minutes | 24 hours |
Coverage
Smooth Finish Coating | Prime coat: 160 - 200 ft2 / US gal (3.9 - 4.9 m2 / L) at 8 - 10 mils (0.20 - 0.25 mm) wet film thickness (w.f.t.) |
Wear coat: 105 - 135 ft2 / US gal (2.6 - 3.3 m2 / L) at 12 - 15 mils (0.30 - 0.38 mm) wet film thickness (w.f.t.) |
MIXING
Mixing Ratio - 3 : 2 by volume.
For bulk packaging, when not mixing full units, each component must be pre-mixed separately to ensure product uniformity.
Clear Resin
Premix each Component separately. Empty Component B (Hardener) in the correct mix ratio into Component A (Resin). Mix the combined components for at least 3 minutes using a low speed drill (300 - 450 rpm) and Exomixer or Jiffy type paddle suited to the volume of the mixing container to minimize entrapped air. Be careful not to introduce any air bubbles while mixing. Make sure the contents are completely mixed to avoid any weak or partially cured spots in the coating. During the mixing operation, scrape down the sides and bottom of the container with a flat or straight edge trowel at least once to ensure complete mixing.
Pigmented
This product is formulated to be used only as clear product without the addition of any pigment product. For pigmented/colored systems use Sikafloor 511 Polyaspartic product.
APPLICATION
If Sikafloor 510N LPL is used as a primer, apply the coating to the prepared substrate using a squeegee and back roll to provide uniform coverage. Ensure that the substrate is porefree and pinhole-free and provides uniform and complete coverage over the entire substrate. If necessary, apply an additional coat to ensure the substrate is pore-free and pinhole-free, and provides uniform and complete coverage over the entire substrate.
- Do not apply while ambient and substrate temperatures are rising, as pinholes may occur. Ensure there is no vapor drive at the time of application. Refer to ASTM D4263, may be used for a visual indication of vapor drive.
- Do not apply Sikafloor to concrete substrate containing aggregates susceptible to ASR (Alkali Silica Reaction) due to risk of natural alkali redistribution below the Sikafloor product after application. If concrete substrate has or is suspected to have ASR (Alkali Silica Reaction) present, do not proceed. Consult with design professional prior to use.
- Any aggregate used with Sikafloor systems must be non-reactive and oven-dried.
- This product is not designed for negative side waterproofing.
- Use of unvented heaters and certain heat sources may result in defects (e.g. blushing, whitening, debonding, etc.).
- Beware of air flow and changes in air flow. Introduction of dust, debris, and particles, etc. may result in surface imperfections and other defects.
- For professional use only by experienced applicators.
As a topcoat/sealer coat for smooth or broadcast finish
Squeegee and back roll Sikafloor 510N LPL to provide a uniform coverage without ponding at a thickness of 10 - 15 mils (160 - 107 ft2/gal). If required, repeat this procedure for a second coat.
As a clear topcoat for a broadcast quartz or flake system
Squeegee and back roll Sikafloor 510N LPL to provide a uniform coverage without ponding at a thickness of 10 - 15 mils (160 - 107 ft2/gal). If required, repeat this procedure for a second coat.
As a stand-alone double broadcast quick cure decorative quartz and flake system
Step 1: Primer - Apply neat coat of Sikafloor 510N LPL on a prepared substrate as a primer using a
squeegee and roller without ponding at 5 - 10 mils (160 - 320 ft2/gal).
Note: When using Sikafloor 510N LPL as primer, extra precaution should be taken on substrate preparation and moisture content.
Step 2: First Broadcast Application
Squeegee and back roll Sikafloor 510N LPL to provide a uniform coverage without ponding at a thickness of 10 - 15 mils (160 - 107 ft2/gal). Broadcast preblende decorative flakes or colored quartz aggregates into the binder to saturation. Broadcast in a manner so that the flakes or colored quartz aggregates fall vertically into the binder. Broadcast to rejection. Ensure that broadcast flakes/aggregates cover entire surface. Allow broadcast system to cure sufficiently to be able to resist foot traffic without damaging the surface. Remove excess flakes/ aggregates from the surface. Removal of excess flakes/aggregates is carried out by sweeping up the flakes/aggregates, followed by vacuuming, until surface is free of all loose particles and dust.
Step 3: Second Broadcast Application
Squeegee and back roll Sikafloor 510N LPL to provide a uniform coverage without ponding at a thickness of 10 - 15 mils (160 - 107 ft2/gal). Broadcast preblended decorative flakes or colored quartz aggregates into the binder to saturation. Broadcast in a manner so that aggregates fall vertically into the binder. Broadcast to rejection. Ensure that broadcast flakes/aggregates cover entire surface. Allow broadcast system to cure sufficiently to be able to resist foot traffic without damaging the surface. Remove excess flakes/aggregates from the surface. Removal of excess flakes/aggregates is carried out by sweeping up the flakes/aggregates, followed by vacuuming, until surface is free of all loose particles and dust.
Step 4: Finish Coat - Squeegee and back roll Sikafloor 510N LPL to provide a uniform coverage without ponding at a thickness of 10 - 15 mils (160 - 107 ft2/gal). When required, repeat this procedure.
