S-Welding cord PVC

S-Welding cord PVC

PVC flexible welding cord for Sarnabar or Sarnastop perimeter fastening

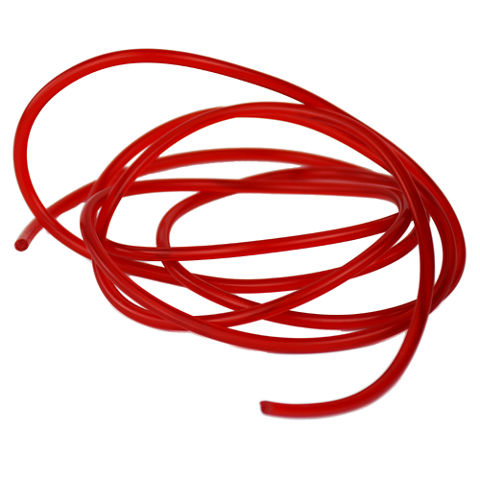

Sarnacord PVC is a flexible thermoplastic which is hot-air welded to the top of the Sarnafil and Sikaplan PVC membranes and against the side of the Sarnabar or Sarnastop when the Sarnabar or Sarnastop is used at the base of walls and curbs.

  • Hot-air weldable
  • Retains the Sarnafil membrane in position
  • Prevents membrane tearing





Product Data Sheet Safety Data Sheet Show all documents

Usage

To prevent tearing of the Sarnafil or Sikaplan membrane against the side of a Sarnabar or Sarnastop.

Advantages

  • Hot-air weldable
  • Retains the Sarnafil membrane in position
  • Prevents membrane tearing






Packaging

Plastic container

Color

Surface

Smooth

Color

Red

Product Details

Product Information

Chemical Base

Polyvinylchloride (PVC-P)

Shelf Life

5 years from date of production.

Storage Conditions

Product must be stored in original unopened and undamaged sealed packaging in dry conditions.

Length

328 linear feet (100 m)

Thickness

5/32" (4 mm) diameter
System information

System Structure

The following products must be considered for use depending on roof design:

  • Sarnafil® G 410
  • Sarnafil® S 327
  • Sikaplan® Adhered
  • Sikaplan Fastened

Application

Application steps

APPLICATION

By use of a hand-held hot-air welder and a specialized nozzle tip, Sarnacord - PVC is hot-air welded to Sarnafil membrane on the detail side of the bar. Sarnacord - PVC is used with Sarnabar or Sarnastop at the base of walls, curbs, vent stacks, etc. in accordance with Sika Sarnafil's Detail Drawings.
