Sikaplan® Fastener #14

Sikaplan® Fastener #14

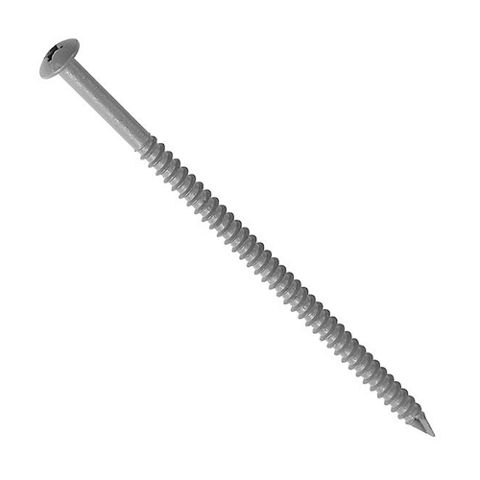

Sikaplan Fastener #14 is a threaded drill point fastener

Sikaplan® Fastener #14 is a threaded drill point fastener used within Sikaplan® roof systems to attach Sikaplan® Fastened Membrane or Sarnatherm® insulation, Sarnatherm roof boards, gypsum roof boards, or other Sika approved boards into structural concrete (140 - 150 lb/ft), wood plank (min. 1-1/2”), or wood sheathing (> 15/32”).

  • Deep threads for high pullout resistance.
  • Extra sharp spade point for quick installation in new or reroof applications.
  • In concrete applications, fastener may be reversed out of predrilled hole without damaging the deck.
Product Data Sheet Safety Data Sheet Show all documents

Usage

Used in conjunction with Sikaplan® discs or plates, or Sarnarail® for attachment direct to the roof deck.    Areas of Application
  • New Roof Applications
  • Reroof Applications
  • Recover Applications


Advantages

  • Deep threads for high pullout resistance.
  • Extra sharp spade point for quick installation in new or reroof applications.
  • In concrete applications, fastener may be reversed out of predrilled hole without damaging the deck.

Packaging

LengthThreadPackagingWeight
1-1/4" (32 mm)Full1000 / Pail12 lb (5.4 kg)
1-3/4" (44 mm)Full1000 / Pail16 lb (7.3 kg)
2" (51 mm)Full1000 / Pail18 lb (8.2 kg)
3" (76 mm)Full1000 / Pail26 lb (11.8 kg)
4" (102 mm)3" (76 mm)1000 / Pail34 lb (15.4 kg)
5" (127 mm)4" (102 mm)500 / Pail22 lb (10.0 kg)
6" (152 mm)4" (102 mm)500 / Pail26 lb (11.8 kg)
7" (178 mm)4" (102 mm)500 / Pail30 lb (13.6 kg)
8" (203 mm)4" (102 mm)500 / Pail34 lb (15.4 kg)
9" (228 mm)4" (102 mm)500 / Pail37 lb (16.8 kg)
10" (254 mm)4" (102 mm)500 / Pail40 lb (18.1 kg)
11" (279 mm)4" (102 mm)500 / Pail44 lb (20.0 kg)
12" (305 mm)4" (102 mm)250 / Pail25 lb (11.3 kg)
14" (356 mm)4" (102 mm)250 / Box29 lb (13.2 kg)

* One #3 Phillips drive bit is included in each box.

Color

Gray

Product Details

Sustainability / Certifications / Approvals

APPROVALS / STANDARDS

  • Factory Mutual 4470
  • Miami-Dade County

Product Information

Chemical Base

Made from carbon steel, treated with a corrosion-resistant coating to meet the criteria for corrosion resistance.

Shelf Life

N/A

Storage Conditions

N/A

Dimensions

  • Thread Diameter: 0.245" (6.2 mm)
  • Shank Diameter: 0.190" (4.8 mm)
  • Head Diameter: 0.435" (11 mm)
  • Head Style: #3 Phillips

Application

Application steps

APPLICATION

Sikaplan® Fastener #14 is fastened straight into the roof deck with a heavy-duty (4 amp minimum), variable speed (0 - 2500 rpm), reversible screwgun with a clutch release and a #3 Phillips drive bit. Sikaplan® Fastener #14 must penetrate concrete* and wood plank roof decks by 1" (25 mm) and the underside of wood sheathing roof decks by a 1/2" (13 mm). Care must be taken to not damage the roof deck. Choose the correct fastener length and do not overdrive or underdrive the fastener. Pullout tests are required prior to job start when used with existing wood sheathing roof decks or Sikaplan® Fastener #14 roof decks for technical evaluation.

*Pre-drill a 3/16" (4.8 mm) pilot hole at least 1/2" (13 mm) deeper than fastener embedment.
