Sarnafil® G 410-60

Sarnafil® G 410-60

Sarnafil G 410 Roof Membrane is a PVC thermoplastic membrane

Sarnafil® G 410-60 is a PVC thermoplastic membrane produced with an integral fiberglass mat reinforcement for excellent dimensional stability, with heat‐weldable seams, and a unique lacquer coating applied to the top of the membrane to reduce dirt pick up.

  • Excellent dimensional stability
  • Factory applied lacquer coated to reduce dirt pick up
  • Hot‐air welded seams for long‐term performance
  • Proven membrane performance
  • Superior fire resistance
Product Data Sheet Safety Data Sheet Show all documents

Usage

Used in adhered applications with various adhesives over various substrates.    AREAS OF APPLICATION
  • New Roofs
  • Reroofs
  • Recovers
  • Flashings


Advantages

  • Excellent dimensional stability
  • Factory applied lacquer coated to reduce dirt pick up
  • Hot‐air welded seams for long‐term performance
  • Proven membrane performance
  • Superior fire resistance

Packaging

60 mil (1.5 mm) Membrane

6.56 ft x 65.6 ft (2 m x 20 m) roll, 168 lbs (76 kg) per roll,

19 rolls per pallet

Coverstrip: 8" x 100 ft (20 cm x 30 m) roll, 25 lbs (11 kg) per roll,

25 rolls per pallet

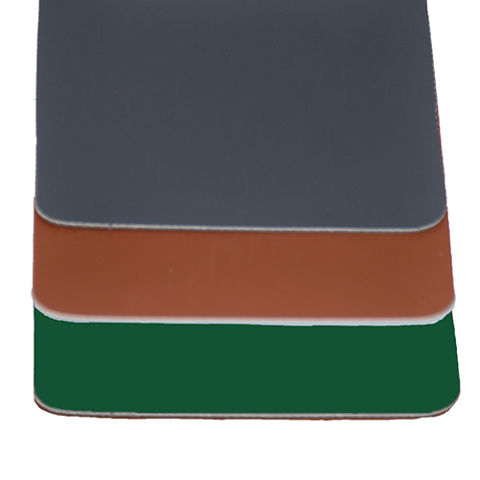

Color

  • Top: Copper Brown, Evergreen*, or Lead Gray
  • Bottom: Gray

*Evergreen is not a stocked color. For lead time and minimum roll order requirements, contact Sika Roofing Customer Service.

Product Details

Sustainability / Certifications / Approvals

APPROVALS / STANDARDS

  • FM Global
  • Underwriters Laboratories
  • Underwriters Laboratories of Canada
  • ICC Code Compliance – ESR 1157
  • Miami‐Dade County
  • Florida Building Code
  • NSF/ANSI 347: Platinum Certified


Product Information

Chemical Base

High‐quality, PVC membrane containing ultraviolet light stabilizers, flame retardant, and fiberglass reinforcement with a unique lacquer coating on the top surface.

Reinforcing Material

Fiberglass

Shelf Life

N/A

Storage Conditions

Store rolls on pallets and fully protected from the weather with clean canvas tarpaulins. Unvented polyethylene tarpaulins are unacceptable due to the accumulation of moisture beneath the tarpaulin in certain weather conditions that may affect membrane weldability.

Overall Thickness

60 mil (minimum thickness)

45 mil

(ASTM D-751)

(ASTM Type II D-4434 Spec. Requirement)

Thickness Above Scrim

27 mil

16 mil

(ASTM D-7635)

(ASTM Type II D-4434 Spec. Requirement)
Technical Information

Resistance to Static Puncture

Pass

33 lbf (15 kg)

(ASTM D-5602)

(ASTM Type II D-4434 Spec. Requirement)

Resistance to Dynamic Puncture

Pass

7.3 ft-lbf (10 J)

(ASTM D-5635)

(ASTM Type II D-4434 Spec. Requirement)

Tensile Strength

80 lbf (356 N)

55 lbf (245 N)

(ASTM D-751)

(ASTM Type II D-4434 Spec. Requirement)

Tear Strength

17.5 lbf (78 N)

10 lbf (45 N)

(ASTM D-1004)

(ASTM Type II D-4434 Spec. Requirement)

Seam Strength

Pass

75% of original1

(ASTM D-751)

(ASTM Type II D-4434 Spec. Requirement)

1 Failure occurs through membrane rupture not seam failure.

Linear Dimensional Change

-0.02%

0.1%

(ASTM D-1204)

(ASTM Type II D-4434 Spec. Requirement)

Low Temperature Bend

Pass

Pass ‐40°F (‐40°C)

(ASTM D-2136)

(ASTM Type II D-4434 Spec. Requirement)

Weight Change after Immersion in Water

1.9%

± 3.0%

(ASTM D-570)

(ASTM Type II D-4434 Spec. Requirement)

UV Exposure

Pass

5,000 hours

(ASTM G-154)

(ASTM Type II D-4434 Spec. Requirement)

Cracking

(7x magnification)

None

Crazing

(7x magnification)

None

Retention of Properties after Heat Ageing

Breaking Strength, % of original: Pass

Elongation, % of original: Pass

Breaking Strength, % of original: 90

Elongation, % of original: 90

(ASTM D-751)

(ASTM D-751)

(ASTM Type II D-4434 Spec. Requirement)

Application

Application steps

APPLICATION

Sarnafil G 410 is installed after proper preparation of the approved substrate. The membrane is unrolled into Sarnacol® adhesive in accordance with Sika’s technical requirements and then pressed into place with a minimum 75 lb (34 kg) steel roller. Sarnafil G 410 seams are heat‐welded together by trained operators using hot‐air welding equipment. Different Sarnacol adhesives require different application methods. Please consult Sika’s Specifications or Applicator Handbook for detailed installation procedures.
