Sarnafil® S 327-80 Textured

Sarnafil® S 327-80 Textured

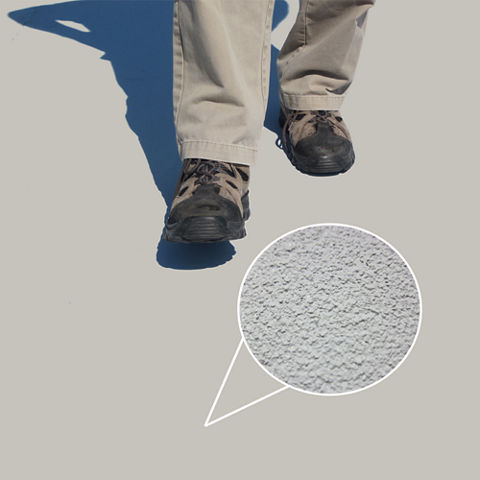

80 mil thick PVC thermoplastic membrane with textured top surface

Sarnafil® S 327-80 Textured Roof Membrane is a PVC thermoplastic membrane produced with an integral polyester reinforcement for high strength, with heat‐weldable seams, and a textured surface.

  • Embossed surface
  • Excellent tear strength resistance
  • Hot‐air welded seams for long‐term performance
  • Superior fire resistance
  • Proven membrane performance
Product Data Sheet Safety Data Sheet Show all documents

Usage

Mechanically attached applications with various fastening methods, over various substrates. It can also be used in adhered applications to approved substrates.    AREAS OF APPLICATION
  • In-seam disc systems
  • In-seam batten, double-weld systems
  • RhinoBond® systems
  • New construction and reroofing


Advantages

  • Embossed surface
  • Excellent tear strength resistance
  • Hot‐air welded seams for long‐term performance
  • Superior fire resistance
  • Proven membrane performance

Packaging

80 mil (2.0 mm) Membrane*

10 ft x 100 ft (3.05 m x 30.5 m) roll, 520.29 lbs (236 kg) per roll,

6 rolls per pallet

6.56 ft x 65.6 ft (2 m x 20 m) roll, 168 lbs (76 kg) per roll,

19 rolls per pallet

* Made to order, minimum volume required, extended production lead times. Consult with Sika – Roofing representative for further information.

Color

  • Top: Reflective Gray
  • Bottom: Dark Gray

Product Details

Sustainability / Certifications / Approvals

APPROVALS / STANDARDS

  • FM Global
  • Underwriters Laboratories
  • ICC Code Compliance – ESR 1157
  • Miami‐Dade County
  • Florida Building Code
  • LEED / Green Globes
  • NSF/ANSI 347 : Platinum Certified

Product Information

Chemical Base

High quality, PVC membrane containing ultraviolet light stabilizers, flame retardant and polyester scrim reinforcement

Reinforcing Material

Polyester

Shelf Life

N/A

Storage Conditions

Store rolls on pallets and fully protected from the weather with clean canvas tarpaulins. Unvented polyethylene tarpaulins are not accepted due to the accumulation of moisture beneath the tarpaulin in certain weather conditions that may affect the ease of membrane weldability.

Top surface

Textured

Overall Thickness

80 mil (2.0 mm), minimum thickness

45 mil

(ASTM D-751)

(ASTM Type III D-4434 Spec. Requirement)

Thickness Above Scrim

Exceed

16 mil

(ASTM D-7635)

(ASTM Type III D-4434 Spec. Requirement)
Technical Information

Resistance to Static Puncture

Pass

33 lbf (15 kg)

(ASTM D-5602)

(ASTM Type III D-4434 Spec. Requirement)

Resistance to Dynamic Puncture

Pass

14.7 ft-lbf (20 J)

(ASTM D-5635)

(ASTM Type III D-4434 Spec. Requirement)

Tensile Strength

325 lbf (1445 N)

200 lbf (890 N)

(ASTM D-751)

(ASTM Type III D-4434 Spec. Requirement)

Tear Strength

49 lbf (218 N)

45 lbf (200 N)

(ASTM D-751)

(ASTM Type III D-4434 Spec. Requirement)

Seam Strength

Pass

75% of original1

(ASTM D-751)

(ASTM Type III D-4434 Spec. Requirement)

1 Failure occurs through membrane rupture not seam failure.

Linear Dimensional Change

-0.01%

0.5%

(ASTM D-1204)

(ASTM Type III D-4434 Spec. Requirement)

Low Temperature Bend

Pass

Pass ‐40°F (‐40°C)

(ASTM D-2136)

(ASTM Type III D-4434 Spec. Requirement)

Weight Change after Immersion in Water

Pass

± 3.0%

(ASTM D-570)

(ASTM Type III D-4434 Spec. Requirement)

UV Exposure

10,000 hours

5,000 hours

(ASTM G-154)

(ASTM Type III D-4434 Spec. Requirement)

Cracking

(7x magnification)

None

Ceazing

(7x magnification)

None

Retention of Properties after Heat Ageing

Tensile Strength, % of original: Pass

Elongation, % of original: Pass

Tensile Strength, % of original: 90

Elongation, % of original: 90

(ASTM D-751)

(ASTM D-751)

(ASTM Type III D-4434 Spec. Requirement)

Application

Application steps

APPLICATION

Sarnafil S 327 is rolled out onto the insulation board or acceptable substrate, flipped over in order to reveal textured side of membrane as the top surface, fastened to the roof deck with appropriate plates and fasteners, and heat‐welded together by trained operators using hot‐air welding equipment. Please consult Sika’s Specification or Applicator Handbook for detailed installation procedures.
