Sikacrete®-950 DP

Sikacrete®-950 DP

Densified Silica Fume Powder

Sikacrete®-950 DP is a densified dry powder microsilica admixture for portland cement concrete and mortars. Sikacrete®-950 DP meets the requirements of ASTM C-1240 and contains a minimum of 85 % silicone dioxide (SiO2).

How It Works: Sikacrete®-950 DP is a pozzolanic material that consists primarily of fine silicon dioxide particles in a non-crystalline form. Silica fume particles have a diameter of less than 1μm; about 100 times smaller than the average cement particle.    Pozzolanic action: A chemical reaction takes place between the free lime Ca (OH) 2 in the cement paste and the microsilica particles which results in the formation of additional calcium silicate hydrate (CSH) gel, the glue that holds the concrete constituents together. The formation of this extra binding force within the gel increases the compressive and flexural strength of the concrete.   Void Reduction: The fine particles of Sikacrete®-950 DP fill the tiny voids and capillary pores within the cement matrix and significantly reduce porosity to produce an extremely dense and impermeable concrete.     Advantages: Sikacrete®-950 DP produces concrete that has dramatically increased compressive and flexural strength, which allows greater design flexibility and structural design economies, combined with reduced permeability to increase the service life of the concrete.
  • Compressive strengths are dramatically increased for high performance concrete.
  • Excellent abrasion and erosion resistance increases concrete durability in high-traffic areas.
  • Permeability is dramatically reduced, which makes microsilica ideal for applications where concrete will be required to resist chemical attack.
  • Resistance to corrosion is increased because concrete is more resistant to water ingress and therefore also to corrosion caused by sulfates and water-borne chlorides such as deicing salts.
  • Decreased permeability gives microsilica concrete excellent freeze-thaw resistance because less water is trapped inside the cement paste.
   Sikacrete®-950 DP does not contain calcium chloride nor any other intentionally added chloride containing ingredients.
Product Data Sheet
Show all documents

Usage

Sikacrete®-950 DP is recommended for all high performance, high strength applications; concrete required to resist water and chemical ingress and concrete required to resist mechanical abrasion.

Advantages

How It Works: Sikacrete®-950 DP is a pozzolanic material that consists primarily of fine silicon dioxide particles in a non-crystalline form. Silica fume particles have a diameter of less than 1μm; about 100 times smaller than the average cement particle.    Pozzolanic action: A chemical reaction takes place between the free lime Ca (OH) 2 in the cement paste and the microsilica particles which results in the formation of additional calcium silicate hydrate (CSH) gel, the glue that holds the concrete constituents together. The formation of this extra binding force within the gel increases the compressive and flexural strength of the concrete.   Void Reduction: The fine particles of Sikacrete®-950 DP fill the tiny voids and capillary pores within the cement matrix and significantly reduce porosity to produce an extremely dense and impermeable concrete.     Advantages: Sikacrete®-950 DP produces concrete that has dramatically increased compressive and flexural strength, which allows greater design flexibility and structural design economies, combined with reduced permeability to increase the service life of the concrete.
  • Compressive strengths are dramatically increased for high performance concrete.
  • Excellent abrasion and erosion resistance increases concrete durability in high-traffic areas.
  • Permeability is dramatically reduced, which makes microsilica ideal for applications where concrete will be required to resist chemical attack.
  • Resistance to corrosion is increased because concrete is more resistant to water ingress and therefore also to corrosion caused by sulfates and water-borne chlorides such as deicing salts.
  • Decreased permeability gives microsilica concrete excellent freeze-thaw resistance because less water is trapped inside the cement paste.
   Sikacrete®-950 DP does not contain calcium chloride nor any other intentionally added chloride containing ingredients.

Packaging

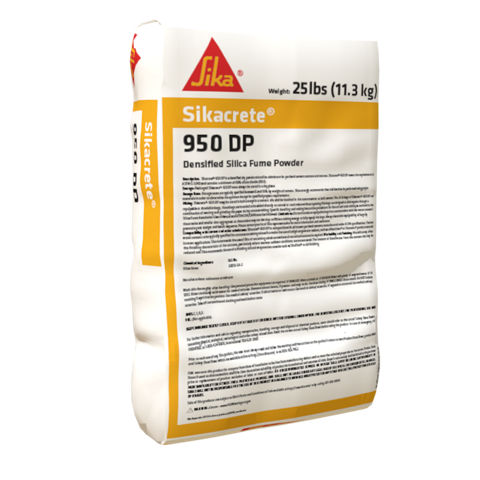

Sikacrete®-950 DP is available in 25 lb. (11.36 kg) repulpable bags, 2200 lb. (1000 kg) super sacks and bulk delivery.

Color

Gray Powder

Product Details

Product Information

Shelf Life

Shelf life when stored in dry warehouse conditions above 35 °F (2 °C) is unlimited.

Storage Conditions

Dry warehouse conditions

Specific Gravity

Approx. 2.26

Application

Application Information

Mixing

Sikacrete®-950 DP may be stored in bulk storage in a cement silo and be batched in the same manner as bulk cement. The 25 lb. bags of Sikacrete®-950 DP are repulpable or shredable bags, these bags are intended to be added directly to central or truck mixer without opening. The bags are designed to disintegrate through a combination of wetting and grinding the paper during concrete mixing. Specific batching and mixing instruction procedures for Central and truck mixing as outlined in the Silica Fume Association Users Manual and ASTM C94/C94M must be followed.



Limitations: Do not introduce repulpable bags into concrete mixes with low watercementitious ratios and smaller size aggregates as these mixes may not develop sufficient mixing energy to fully repulp the bags. Always determine repulpability of bags by pretesting mix designs and batch sequence.
Please contact your local Sika representative for more information and assistance.



Compatibility with cement and other admixtures: Sikacrete®-950 DP is compatible with all known portland cements manufactured under ASTM specifications. The low water cement ratios typically specified for concrete containing microsilica make the use of a high range water reducer, such as a ViscoCrete® or Sikament® product essential in most applications. Sika® recommends the use of Sika® air entraining admixtures where air entrained concrete is required.



Workability and Finishing: Microsilica may affect the finishing characteristics of the concrete, particularly where warmer ambient conditions are encountered. The amount of bleed water from the concrete also may be reduced and Sika® recommends the use of a finishing aid and evaporation retarder such as SikaFilm® to aid finishing.
Consumption

Recommended Dosage

Dosage rates are typically specified between 5 and 15 % by weight of cement. Sika® strongly recommends that trial batches be performed using project materials in order to determine the optimum dosage for specified project requirements.
