Sika® ViscoCrete®-6100

High Range Water Reducer

Sika® ViscoCrete®-6100 is a high range water reducer and superplasticizer utilizing Sika’s ‘ViscoCrete®’ polycarboxylate polymer technology. Sika® ViscoCrete®-6100 meets the requirements for ASTM C-494 Types A and F and AASHTO M-194 Types A and F.

Water Reduction: Sika® ViscoCrete®-6100 can be dosed in small amounts to obtain water reduction from 10-15 %, and will achieve water reduction up to 45 % at high dosage rates. Sika® ViscoCrete®-6100 is suitable for all levels of water reduction.   High Plasticity and Cohesion: The superplasticizing action of Sika® ViscoCrete®-6100 provides high-slump, flowing concrete that maintains excellent workability, and may be placed with minimal or no vibration even at very low water cement ratios as low as 0.25. Sika® ViscoCrete®-6100 maintains excellent cohesion within the concrete matrix, and eliminates excessive bleeding or segregation. The unique plasticizing effect of Sika® ViscoCrete®-6100 provides excellent formed surface finish. The combined high range water reduction and superplasticizing action of Sika® ViscoCrete®-6100 provide the following benefits in hardened concrete:
  • Higher early compressive strengths for earlier removal of forms and structural use of concrete.
  • Higher ultimate strengths allow for greater engineering design flexibility and structural economies.
  • Reduced water cement ratios produce more durable, dense concrete with reduced permeability.
  • Highly effective plasticizer reduces surface defects in concrete elements and improves aesthetic appearance.
  • Ideal for the production of Self Consolidating Concrete.
   It has been formulated to provide maximum water reduction, increased early strength, improved finishing characteristics, especially when a broom is desired. Sika® ViscoCrete®-6100 does not contain formaldehyde, calcium chloride or any other intentionally added chlorides, and will not initiate or promote the corrosion of steel present in the concrete.
Product Data Sheet Safety Data Sheet Show all documents

Usage

Sika® ViscoCrete®-6100 is designed for conventional precast/prestress applications, and may also be used for the production of Self Consolidating Concrete (SCC). Sika® ViscoCrete®-6100 is a high range water reducer that provides excellent plasticity, and may be combined with accelerator or retarder admixture to control the set time and slump life.

Advantages

Water Reduction: Sika® ViscoCrete®-6100 can be dosed in small amounts to obtain water reduction from 10-15 %, and will achieve water reduction up to 45 % at high dosage rates. Sika® ViscoCrete®-6100 is suitable for all levels of water reduction.   High Plasticity and Cohesion: The superplasticizing action of Sika® ViscoCrete®-6100 provides high-slump, flowing concrete that maintains excellent workability, and may be placed with minimal or no vibration even at very low water cement ratios as low as 0.25. Sika® ViscoCrete®-6100 maintains excellent cohesion within the concrete matrix, and eliminates excessive bleeding or segregation. The unique plasticizing effect of Sika® ViscoCrete®-6100 provides excellent formed surface finish. The combined high range water reduction and superplasticizing action of Sika® ViscoCrete®-6100 provide the following benefits in hardened concrete:
  • Higher early compressive strengths for earlier removal of forms and structural use of concrete.
  • Higher ultimate strengths allow for greater engineering design flexibility and structural economies.
  • Reduced water cement ratios produce more durable, dense concrete with reduced permeability.
  • Highly effective plasticizer reduces surface defects in concrete elements and improves aesthetic appearance.
  • Ideal for the production of Self Consolidating Concrete.
   It has been formulated to provide maximum water reduction, increased early strength, improved finishing characteristics, especially when a broom is desired. Sika® ViscoCrete®-6100 does not contain formaldehyde, calcium chloride or any other intentionally added chlorides, and will not initiate or promote the corrosion of steel present in the concrete.

Packaging

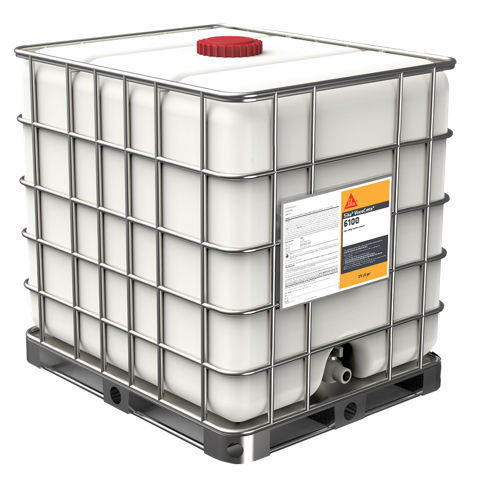

Sika® ViscoCrete®-6100 is available in 55 gallon drums (208 liters), 275 gallon totes (1040 liters) and bulk delivery.

Color

Amber Liquid

Product Details

Product Information

Shelf Life

Shelf life when stored in dry warehouse conditions between 40 °F and 80 °F (5–27 °C) is 1 year. Protect from direct sunlight.

Storage Conditions

Sika® ViscoCrete®-6100 should be stored at above 40 °F (5 °C). If frozen, thaw and agitate thoroughly to return to normal state.

Specific Gravity

Approx. 1.08

Application

Application Information

Mixing

For best superplasticizing results, add Sika® ViscoCrete®-6100 directly to freshly mixed concrete in the concrete mixer at the end of the batching cycle. Sika® ViscoCrete®-6100 may also be dispensed as an integral material during the regular admixture batching cycle, or into freshly mixed concrete in a Ready Mix truck, at the concrete plant or at the job site.
To optimize the superplasticizing effect after the addition of Sika® ViscoCrete®-6100, Sika recommends that the combined materials be mixed for 80-100 revolutions either in the concrete mixer or in the Ready Mix truck.



Combination with Other Admixtures: Sika® ViscoCrete®-6100 is highly effective as a single admixture or in combination with other admixtures in the Sika system. If used in combination with certain Sikament® high range water reducers it may affect the plastic properties of fresh concrete. Please contact a Sika representative for further information.



Combination with Microsilica: Sika® ViscoCrete®-6100 is particularly well suited for use with microsilica because of its water reduction capability.
Consumption

Recommended Dosage

Dosage rates will vary according to materials used, ambient conditions and the requirements of a specific project. Sika recommends dosage at 3–8 fl.oz. per 100 lbs. (195–520 ml/100 kg) of cementitious for general concrete applications. If maximum water reduction is required dosage up to 12 fl.oz./100 lbs. (780 ml/100 kg) of cementitious may be used.



Dosage rates outside the recommended range may be used where specialized materials such as microsilica are specified, extreme ambient conditions are encountered or unusual project conditions require special consideration. Please contact your Sika representative for more information and assistance.
