Vapor Retarder PE 10

Vapor Retarder PE 10

10 mil (0.25 mm) thick polyethylene vapor retarder/air barrier

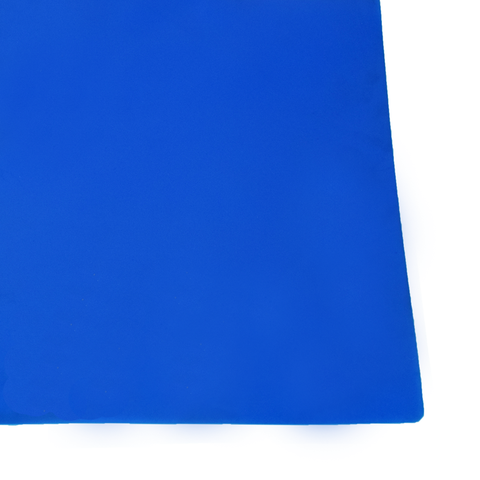

Vapor Retarder PE 10 is a 10 mil (0.25 mm) thick polyethylene vapor retarder/air barrier for use within Sarnafil® and Sikaplan® insulated roofing and waterproofing systems. Vapor Retarder PE 10 can also be used as a separation sheet between new Sarnafil waterproofing systems and existing waterproofing materials.

Large sheets to minimize seams
Product Data Sheet Safety Data Sheet Show all documents

Usage

  • Vapor retarder/air barrier within Sarnafil and Sikaplan insulated roofing systems
  • Vapor retarder/air barrier within Sarnafil waterproofing systems
  • Separation sheet between the new waterproofing system and existing waterproofing materials

AREAS OF APPLICATION
  • Direct application to steel, concrete, gypsum decks, approved gypsum boards, approved insulation boards and plywood
  • Over existing waterproofing materials


Advantages

Large sheets to minimize seams

Packaging

20 ft (6.1 m) x 100 ft (30.5 m) folded panel rolled onto a 5 ft (1.5 m) wide core
132 lbs (59.9 kg) per roll
24 rolls per pallet

Product Details

Sustainability / Certifications / Approvals

APPROVALS / STANDARDS

  • FM Global
  • Meets 2018 IECC Air Barrier requirements, Materials (Section C402.5.1.2.1)

Product Information

Chemical Base

Low density polyethylene

Shelf Life

N/A

Storage Conditions

Store rolls in a clean dry location and cover as necessary to protect rolls from environmental damage such as extreme cold, heat, or moisture.

Overall Thickness

10 mil (0.25 mm)
Technical Information

Impact Strength

1.87 lbs (850 g)

(ASTM D-1709)

Tensile Strength

Machine DirectionCross Machine Direction
3470 psi (23.9 MPa)3300 psi (22.8 MPa)

Application

Application steps

APPLICATION INSTRUCTIONS

APPLICATION

Vapor Retarder PE 10 is loose laid over a suitable substrate. Overlap all edges a minimum of 4" (10.2 cm) and seal with SikaLastomer-65. Extend Vapor Retarder PE 10 to the perimeter and deck penetrations and seal with SikaLastomer-65 to provide continuity of the air/vapor envelope. Seal Vapor Retarder PE 10 with SikaLastomer-65 on the vertical surface at penetrations.
