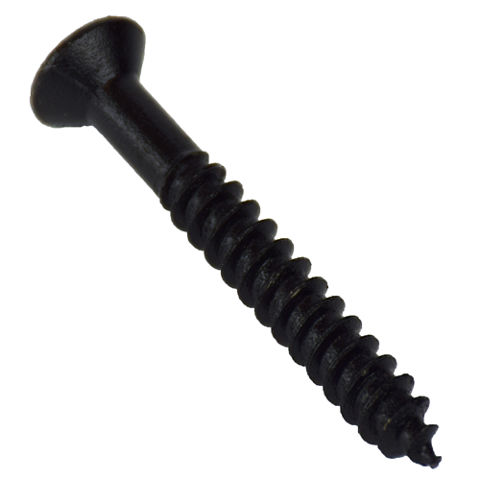

Fastener Lite-Deck

Fastener Lite-Deck is a specially-designed fastener for Gypsum and Cementitious Wood Fiber decks

Fastener Lite-Deck is a specially-designed fastener used to attach Sarnatherm® insulation, Sarnatherm® roof boards, gypsum roof boards, or other Sika           approved boards into cementitious wood fiber or gypsum roof decks.

  • Deep, course thread design.
  • High pullout resistance.
Product Data Sheet Safety Data Sheet Show all documents

Usage

Used in conjunction with Sarnaplate Lite-Deck for attachment direct to the approved roof deck.    Areas of Application
  • New Roof Applications
  • Reroof Applications
  • Recover Applications


Advantages

  • Deep, course thread design.
  • High pullout resistance.

Packaging

LengthThreadPackagingWeight
2-5/8" (67 mm)

1-3/4" (45 mm)

500 / Box

32 lb (15 kg)

3" (76 mm)2-1/8" (67 mm)500 / Box

36 lb (16 kg)

4" (102 mm)3" (76 mm)500 / Box

47 lb (21 kg)

5" (127 mm)3" (76 mm)250 / Box

30 lb (14 kg)

6" (152 mm)3" (76 mm)250 / Box

36 lb (16 kg)

7" (178 mm)3" (76 mm)250 / Box

41 lb (19 kg)

8" (203 mm)3" (76 mm)250 / Box

46 lb (21 kg)

9" (229 mm)3" (76 mm)125 / Box

26 lb (12 kg)

10" (254 mm)3" (76 mm)125 / Box

29 lb (13 kg)

12" (305 mm)3" (76mm)125 / Box

34 lb (15 kg)

* 6-Lobe (T40) drive bit is included in each box.

Color

Black

Product Details

Sustainability / Certifications / Approvals

APPROVALS / STANDARDS

  • Factory Mutual 4470
  • Miami-Dade County

Product Information

Chemical Base

Made from carbon steel, treated with a corrosion-resistant coating to meet the criteria for corrosion resistance.

Shelf Life

N/A

Storage Conditions

N/A

Dimensions

  • Thread Diameter: 0.375" (9.5 mm)
  • Shank Diameter: 0.312" (7.9 mm)
  • Head Diameter: 0.710" (18 mm)
  • Head Style: deep 6-Lobe drive head

Application

Application steps

APPLICATION INSTRUCTIONS

APPLICATION

The Fastener Lite-Deck can be installed into cementitious wood fiber decks without predrilling. A pilot hole is required for gypsum decks, hole size is determined by pullout results. Fastener Lite-Deck must penetrate the deck a minimum of 2" (51 mm). Using a screw gun, drive the fastener until a slight depression is seen around the plate, or with a very rigid insulation, watch for the plate to dimple. Care must be taken to not damage the roof deck and should never penetrate the underside of the deck. Choose the correct fastener length and do not overdrive or underdrive the fastener. Pullout tests are required prior to job start for technical evaluation.
