Sarnarail

Sarnarail

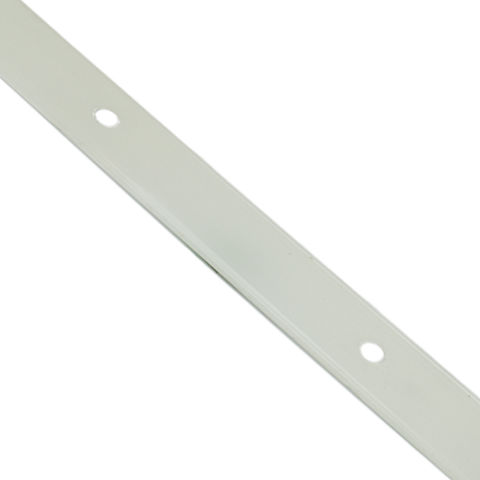

Sarnarail is a polymeric batten strip

Sarnarail is a high performance polymeric batten strip used with approved fasteners to in-seam attatchment Sarnafil® S 327 membrane or Sikaplan fastened® membrane to the roof deck.

  • Easy to install
  • Distributes the loads uniformly across a series of fastening points, maximizing fastener pullout and backout resistance
  • Manufactured from non-corrosive material
Product Data Sheet Safety Data Sheet Show all documents

Usage

Used within the patented double weld Sarnafil Express system.
  Areas of Application
  • New Roof Applications
  • Reroof Applications
  • Recover Applications


Advantages

  • Easy to install
  • Distributes the loads uniformly across a series of fastening points, maximizing fastener pullout and backout resistance
  • Manufactured from non-corrosive material

Packaging

250 ft (76.2 m) coil per box, 10 lbs (4.5 kg) per box

Color

Off white

Product Details

Sustainability / Certifications / Approvals

APPROVALS / STANDARDS

  • FM Global
  • ICC Code Compliant – ESR 1157

Product Information

Chemical Base

Sarnarail is produced from a low profile, high performance thermoplastic polymer. Sarnarail is provided with pre-punched holes every 3" (76 mm) to allow various spacing options.

Shelf Life

N/A

Storage Conditions

N/A

Dimensions

Width: 0.75" (19 mm)

Application

Application steps

APPLICATION

Sarnarail is positioned on the fastening line of the membrane and fastened to the roof deck with approved fasteners clamping the membrane tightly to the substrate. The adjacent roll of membrane is positioned to overlap the fastened edge by 5.5" (140 mm), aligning with the overlap line marked on the membrane. Hot-air weld the two membranes with a Sarnamatic 641mc or Sarnamatic 661mc machine with a patent pending double weld kit. While pulling the welded membrane tight, install and fasten the next Sarnarail as stated above. Fastener spacing is determined by Sika technical requirements.
