Sarnastop

Sarnastop

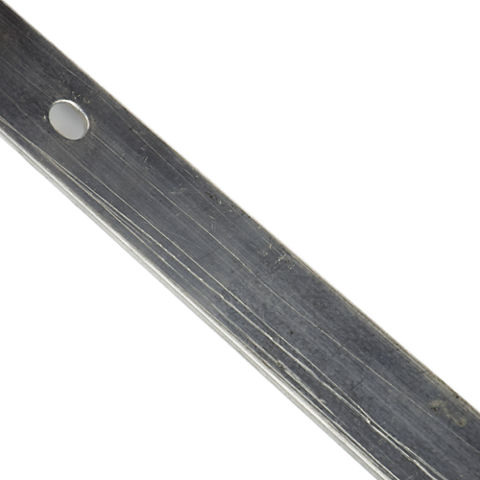

Extruded aluminum bar

Sarnastop is a flat aluminum bar used with approved fasteners to terminate Sarnafil® or Sikaplan® membrane to the roof deck, walls, curbs, and other details.

  • Convenient punched 1/4" x 3/8" (6.4 mm x 9.5 mm) oval holes spaced 6" (15.2 cm) on center

Product Data Sheet Safety Data Sheet Show all documents

Usage

Sarnastop distributes the loads uniformly across a series of fastening points, maximizing fastener pullout and backout resistance.
  Areas of Application
  • Base of walls
  • Curbs
  • Transitions


Advantages

  • Convenient punched 1/4" x 3/8" (6.4 mm x 9.5 mm) oval holes spaced 6" (15.2 cm) on center


Packaging

25 – 10 ft (3.05 m) bars per tube (250 ft, 76.2 m), 40 lbs (18.2 kg) per tube, 10 tubes per pallet (2500 ft, 762 m)

Color

Gray

Product Details

Product Information

Chemical Base

Extruded aluminum (6063 T6 alloy) with a mill finish

Shelf Life

N/A

Storage Conditions

N/A

Dimensions

Width: 1" (25.4 mm)

Length: 10 ft (3 m)

Thickness: 0.125" (3.2 mm)

Application

Application steps

APPLICATION

Sarnastop is positioned over the top of the membrane and fastened to the substrate  with approved fasteners. Fastener spacing is determined by Sika technical requirements. The fasteners are set to a depth to clamp the membrane in place without damaging the substrate. Depending on the specific detail, a membrane coverstrip is welded over the Sarnastop for watertightness.



COVERAGE

10 linear feet (3.05 m) per bar
