Sarnaclad

Sarnaclad

PVC-coated, heat-weldable sheet metal

Sarnaclad is a PVC-coated, heat-weldable sheet metal capable of being formed into a variety of shapes and profiles.

  • Allows direct heat welding of membrane to form monolithic system.
  • Resists staining from airborne dirt and pollutants.

Product Data Sheet Safety Data Sheet Show all documents

Usage

Perimeter edge, wall, or curb flashings.     Areas of Application
  • New Roofs
  • Recover Roofs


Advantages

  • Allows direct heat welding of membrane to form monolithic system.
  • Resists staining from airborne dirt and pollutants.


Packaging

4 ft x 8 ft sheet - Colors:

  • 10 sheets per pallet, 35 lbs (16 kg) per sheet, 380 lbs (172.4 kg) per pallet



4 ft x 10 ft sheet - White:

  • 10 sheets per pallet, 44 lbs (20 kg) per sheet, 470 lbs (213.2 kg) per pallet
  • 25 sheets per pallet, 44 lbs (20 kg) per sheet, 1,130 lbs (512.6 kg) per pallet

Color

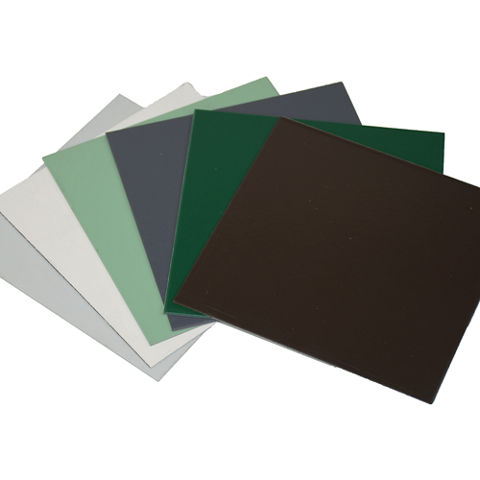

White, Tan, Reflective Gray, Patina Green, Lead Grey, Copper Brown, Evergreen, or Bronze

Product Details

Product Information

Chemical Base

Meets ASTM A-653 for 24 gauge, G90 galvanized metal sheet with a 20 mil (0.5 mm) unsupported membrane comprised of the same time tested Sarnafil® formula laminated on one side.

Recycled Content

Recycled Content (metal): 25 % Post Consumer, 6 % Pre Consumer
Recycled Content (membrane): 0 %

Shelf Life

N/A

Storage Conditions

N/A

Dimensions

Two sizes:

  • 4 ft x 8 ft (1.2 m x 2.4 m) (Colors only)
  • 4 ft x 10 ft (1.2 m x 3.0 m) (White only)
System information

System Structure

Sarnaclad is cut and formed to shape on standard sheet metal equipment. Sarnaclad is fastened in position in accordance with Sika-Roofing technical requirements. The Sarnaclad joints are covered by 2" (50 mm) wide aluminum foil tape and then made watertight by heat-welding a 4"  (100 mm) wide membrane strips over the tape. Membrane is then heat-welded to the Sarnaclad.

Application

Application steps

APPLICATION

Sarnaclad is cut and formed to shape on standard sheet metal equipment. Sarnaclad is fastened in position in accordance with Sika-Roofing technical requirements. The Sarnaclad joints are covered by 2" (50 mm) wide aluminum foil tape and then made watertight by heat-welding a 4"  (100 mm) wide membrane strips over the tape. Membrane is then heat-welded to the Sarnaclad.
