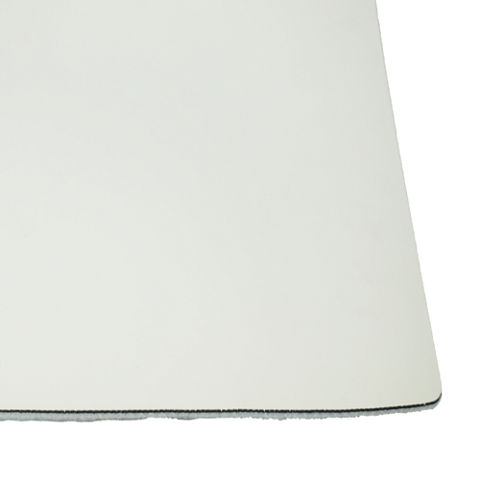

Sarnafil® G 410-60 Feltback EnergySmart

Sarnafil® G 410-60 Feltback EnergySmart

60 mil thick PVC thermoplastic membrane

Sarnafil® G 410-60 Feltback EnergySmart Roof Membrane is a PVC thermoplastic membrane produced with an integral fiberglass mat reinforcement for excellent dimensional stability, is highly reflective, with heat‐weldable seams, and a unique lacquer coating applied to the top of the membrane to reduce dirt pick up.

  • Highly reflective
  • Excellent dimensional stability
  • Factory applied lacquer coated to reduce dirt pick up
  • Hot‐air welded seams for long‐term performance
  • Proven membrane performance
  • Superior fire resistance
Product Data Sheet Safety Data Sheet Show all documents

Usage

Used in adhered applications with various adhesives over various substrates.     AREAS OF APPLICATION
  • New Roofs
  • Reroofs
  • Recovers


Advantages

  • Highly reflective
  • Excellent dimensional stability
  • Factory applied lacquer coated to reduce dirt pick up
  • Hot‐air welded seams for long‐term performance
  • Proven membrane performance
  • Superior fire resistance

Packaging

60 mil (1.5 mm) Membrane (White, Reflective Gray, and Tan)
10 ft x 80 ft (3 m x 24 m) roll, 354 lbs (161 kg) per roll,
9 rolls per pallet



60 mil (1.5 mm) Membrane (Patina Green)
6.56 ft x 65.6 ft (2 m x 20 m) roll, 190 lbs (86 kg) per roll,
10 rolls per pallet

Color

  • Top: White, Reflective Gray, Tan, and Patina Green
  • Bottom: Gray

Product Details

Sustainability / Certifications / Approvals

APPROVALS / STANDARDS

  • FM Global
  • Underwriters Laboratories
  • Underwriters Laboratories of Canada
  • ICC Code Compliance – ESR 1157
  • Miami‐Dade County
  • Florida Building Code
  • NSF/ANSI 347: Platinum Certified
  • California Title 24
  • LEED / Green Globes

Product Information

Chemical Base

High‐quality, PVC membrane containing ultraviolet light stabilizers, flame retardant and fiberglass reinforcement with a unique lacquer coating on the top surface.

Recycled Content

9% Pre-consumer, 1% Post-consumer

Reinforcing Material

Fiberglass

Shelf Life

N/A

Storage Conditions

Store rolls on pallets and fully protected from the weather with clean canvas tarpaulins. Unvented polyethylene tarpaulins are not accepted due to the accumulation of moisture beneath the tarpaulin in certain weather conditions that may affect the ease of membrane weldability.

Overall Thickness

60 mil (1.5 mm), minimum thickness

45 mil

(ASTM D-751)

(ASTM Type II D-4434 Spec. Requirement)

Thickness Above Scrim

27 mil

16 mil

(ASTM D-7635)

(ASTM Type II D-4434 Spec. Requirement)

Felt Weight

9 oz/yd2
Technical Information

Resistance to Static Puncture

Pass

33 lbf (15 kg)

(ASTM D-5602)

(ASTM Type II D-4434 Spec. Requirement)

Resistance to Dynamic Puncture

Pass

7.3 ft-lbf (10 J)

(ASTM D-5635)

(ASTM Type II D-4434 Spec. Requirement)

Tensile Strength

80 lbf (356 N)

55 lbf (245 N)

(ASTM D-751)

(ASTM Type II D-4434 Spec. Requirement)

Tear Strength

17.5 lbf (78 N)

10 lbf (45 N)

(ASTM D-1004)

(ASTM Type II D-4434 Spec. Requirement)

Seam Strength

Pass

75% of original2

(ASTM D-751)

(ASTM Type II D-4434 Spec. Requirement)

2 Failure occurs through membrane rupture not seam failure.

Linear Dimensional Change

‐0.02%

0.1%

(ASTM D-1204)

(ASTM Type II D-4434 Spec. Requirement)

Solar Reflectance

EnergySmart Colors

Initial Solar

Reflectance1

3-Year Solar

Reflectance1

EnergySmart

White2

0.850.74

EnergySmart

Tan2

0.730.65

EnergySmart

Reflective Gray2

0.730.66

EnergySmart

Patina Green3

0.550.46

1 Solar Reflectance testing according to ASTM C1549.

2 Meets LEED, Green Globes, and California’s Title 24 criteria for Low and Steep Slope applications.
3 Meets LEED, Green Globes, and California’s Title 24 criteria for Steep Slope applications.

Solar Reflectance Index

EnergySmart Colors

Initial Solar

Reflectance Index1

3-Year Solar

Reflectance Index1

EnergySmart

White2

10790

EnergySmart

Tan2

8978

EnergySmart

Reflective Gray2

9080

EnergySmart

Patina Green3

6451

1 Solar Reflectance Index calculated according to ASTM E1980.
2 Meets LEED, Green Globes, and California’s Title 24 criteria for Low and Steep Slope applications.
3 Meets LEED, Green Globes, and California’s Title 24 criteria for Steep Slope applications.

Thermal Emittance

EnergySmart Colors

Initial Thermal

Emittance1

3-Year Thermal

Emittance1

EnergySmart

White2

0.860.84

EnergySmart

Tan2

0.850.86

EnergySmart

Reflective Gray2

0.890.88

EnergySmart

Patina Green3

0.860.85

1 Thermal Emittance testing according to ASTM C1371, Slide Method.

2 Meets LEED, Green Globes, and California’s Title 24 criteria for Low and Steep Slope applications.
3 Meets LEED, Green Globes, and California’s Title 24 criteria for Steep Slope applications.

Low Temperature Bend

Pass

Pass ‐40°F (‐40°C)

(ASTM D-2136)

(ASTM Type II D-4434 Spec. Requirement)

Weight Change after Immersion in Water

1.9%

± 3.0%

(ASTM D-570)

(ASTM Type II D-4434 Spec. Requirement)

UV Exposure

10,000 hours

5,000 hours

(ASTM G-154)

(ASTM Type II D-4434 Spec. Requirement)

Cracking

(7x magnification)

None

Discoloration

(by observation)

Negligible

Crazing

(7x magnification)

None

Retention of Properties after Heat Ageing

Tensile Strength, % of original: Pass

Elongation, % of original: Pass

Tensile Strength, % of original: 90

Elongation, % of original: 90

(ASTM D-3045)

(ASTM D-751)

(ASTM Type II D-4434 Spec. Requirement)

Application

Application steps

APPLICATION

Sarnafil G 410 is installed after proper preparation of the approved substrate. The membrane is unrolled into Sarnacol® adhesive in accordance with Sika’s technical requirements and then pressed into place with a minimum 75 lb (34 kg) steel roller. Sarnafil G 410 seams are heat‐welded together by trained operators using hot‐air welding equipment. Different Sarnacol adhesives require different application methods. Please consult Sika’s Specifications or Applicator Handbook for detailed installation procedures.
