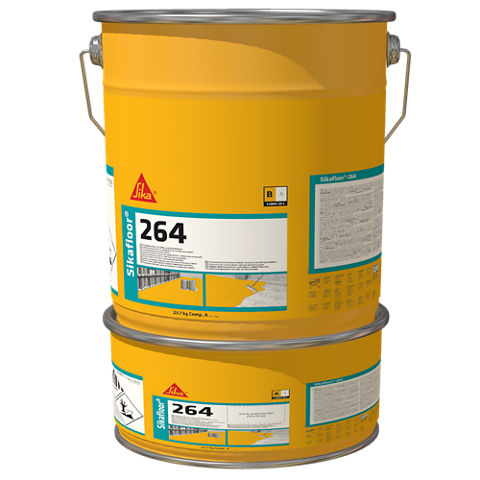

Sikafloor®-264 FS
FAST SETTING PIGMENTED EPOXY RESIN FLOOR COATING
0.0 (0)
Sikafloor®-264 FS is a fast setting, pigmented, two part, low viscosity, epoxy coating / binder used for smooth and textured Sikafloor systems and/or broadcast overlayments. It may be used as roller-applied coating or a self leveling slurry.
- Rapid return to service
- Good chemical and abrasion resistance
- Low VOC
- Good color stability
- Gloss finish
- Slip resistant surface options
- Durable, impermeable and seamless
- Solvent-free, low odor
Usage
Roller-applied coating or self-leveling slurry for concrete surfaces, with medium to heavy duty wear (e.g. storage, production areas, corridors, laboratories, workshops, warehouses and loading docks), or as a seal coat for broadcast systems.Advantages
- Rapid return to service
- Good chemical and abrasion resistance
- Low VOC
- Good color stability
- Gloss finish
- Slip resistant surface options
- Durable, impermeable and seamless
- Solvent-free, low odor
Packaging
Component A | 3.0 US gal. (11.4 L) fill in 5 gallon pail |
Component B | 1.5 US gal. (5.7 L) fill in 2 gallon pail |
Components A+B | 4.5 US gal. (17 L) |
Component A | (2) 50 US gal. (189 L) |
Component B | 50 US gal. (189 L) |
Components A+B | 150 US gal. (568 L) |
Color
Sikafloor standard epoxy colors. (18 standard colors).
Refer to Standard Color Selection Guide. Custom colors available.
Refer to current price list for availability.
Product Details
Shelf Life
24 months in unopened container
Storage Conditions
Store dry between 40 °F (4 °C) and 90 °F (32 °C).
Shore D Hardness
80 - 85 | ASTM D2240 at 73 °F (23 °C) and 50% R.H |
Abrasion Resistance
CS-17/1000 cycles/1000 g ~ 90 mg loss | ASTM D4060 at 73 °F (23 °C) and 50% R.H |
Compressive Strength
7,426 psi (51.2 Mpa) | ASTM C579 at 73 °F (23 °C) and 50% R.H |
Flexural Strength
8,558 psi (59 Mpa) | ASTM D790 at 73 °F (23 °C) and 50% R.H |
Tensile Strength
4,902 psi (33.8 Mpa) | ASTM D638 at 73 °F (23 °C) and 50% R.H |
Tensile Adhesion Strength
>400 psi (2.7 MPa) (100 % concrete failure) | ASTM D7234 at 73 °F (23 °C) and 50% R.H |
Chemical Resistance
Please consult Sikafloor Technical Services
Permeability to Water Vapor
0.33 g/hour/sq-meter | ASTM E96 at 73 °F (23 °C) and 50% R.H |
Coefficient of Friction
0.6 | ANSI 326.3 at 73 °F (23 °C) and 50% R.H |
Indentation
8.82% | ASTM MIL -PRE-24613 |
Water Absorption
0.05% | ASTM C413 at 73 °F (23 °C) and 50% R.H |
Gloss level
90 (at 60 degrees) | ASTM D523 at 73 °F (23 °C) and 50% R.H |
Elongation at break
8.3% | ASTM D638 at 73 °F (23 °C) and 50% R.H |
Application
Mixing Ratio
2 Parts A to 1 Part B by volume
Pot Life
Material Temperature | Time |
50 °F (10 °C) | ~ 30 minutes |
68 °F (20 °C) | ~ 15 minutes |
86 °F (30 °C) | ~ 10 minutes |
Cure Time
Ambient & Substrate Temperature |
Foot traffic |
Light traffic |
Full cure |
50 °F (10 °C) | ~ 12 hours | ~ 24 hours | ~ 10 days |
68 °F (20 °C) | ~ 6 hours | ~ 18 hours | ~ 7 days |
86 °F (30 °C) | ~ 3 hours | ~ 12 hours | ~ 4 days |
Waiting / Recoat Times
Ambient & Substrate Temperature |
Minimum |
Maximum |
50 °F (10 °C) | 6 hours | 24 hours |
68 °F (20 °C) | 3 hours | 18 hours |
86 °F (30 °C) | 2 hours | 12 hours |
Coverage
Smooth Finish Coating: | Prime coat: 160–266 ft2 / US gal (3.9–5.4 m2 / L) at 6 – 10 mils (0.15–0.25 mm) wet film thickness (w.f.t.) (2.6–3.3 m2 / L) at 12 - 15 mils (0.30–0.38 mm) wet film thickness (w.f.t.) |
Slurry Layer: | 40 ft2 / US gal.* @ 60 mils. 30 ft2 / US gal.* @ 80 mils. 20 ft2 / US gal.* @ 120 mils |
For a full ready to mix unit (4.5 Mixed US gal.) of Sikafloor®-264 add 50 Lbs. of Sikadur®-504 type filler. The use of a different filler other than Sikadur®-504, may change the theoretical coverage rates as displayed above |
MIXING
Do not hand mix Sikafloor materials. Mechanically mix only. Do not thin this product. Addition of thinners (e.g. water, solvent, etc.) will slow cure and reduce ultimate properties of this product. Use of thinners will void any applicable Sika warranty. Improper mixing procedure or incorrect mixing ratio may result in moisture sensitivity, whitening, slow cure, soft spots, and other defects.
Mixing Ratio - 2 : 1 by volume.
Each component must be pre-mixed separately to ensure product uniformity.
Primer and Wear Coat:
Premix each component separately. Empty Component B (Hardener) in the correct mix ratio into Component A (Resin). Mix the combined components for at least 3 minutes using a low speed drill (300–450 rpm) and Exomixer or Jiffy type paddle suited to the volume of the mixing container to minimize entrapped air. Be careful not to introduce any air while mixing. Make sure the contents are completely mixed to avoid any weak or partially cured spots in the coating. During the mixing operation, scrape down the sides and bottom of the container with a flat or straight edge trowel at least once to ensure complete mixing.
Self-leveling Slurry:
Premix each component separately. Empty Component B (Hardener) in the correct mix ratio into Component A (Resin). Mix the combined components for at least 1 minute using a low speed drill (300–450 rpm) and Exomixer or Jiffy type paddle suited to the volume of the mixing container to minimize entrapped air. Add Sikadur 504 filler and mix for additional 2 minutes. Be careful not to introduce any air while mixing. Make sure the contents are completely mixed to avoid any weak or partially cured spots in the slurry. During the mixing operation, scrape down the sides and bottom of the container with a flat or straight edge trowel at least once to ensure complete mixing.Do not mix more material than can be applied within the working time limits (i.e. Pot Life) at the actual field temperature.
APPLICATION
Primer
If utilizing Sikafloor®-264 FS as a primer, apply by squeegee at a rate of 160 - 266 ft2 / US gal (3.4 - 5.4 m2 / L) at 6 - 10 mils (0.15 - 0.25 mm) wet film thickness (w.f.t._ and back roll within 15 minutes. Coverage will vary depending on the porosity of the prepared floor. Product has a limited pot life, see Typical Data. Do not apply by dipping roller into mixing container. Pour a bead of product in the form of a ribbon on the surface to be coated, then spread with squeegee and back roll. Ensure that the coating is pore-free and pinholefree and provides uniform and complete coverage over the entire concrete substrate. If necessary, apply an additional coat to ensure the coating is pore-free and pinhole-free and provides uniform and complete coverage over the entire concrete substrate.
Wear and Sealer Coat
Sikafloor®-264 FS is applied with a 15 - 20 mil (0.37 - 0.5 mm) notched squeegee over a smooth surface and a flat squeegee over a rough or broadcast quartz surface. Back rolling is typically done with an 18 inch (455 mm) wide 3/8 inch (10 mm) nap, solvent-resistant roller cover. Back roll the Sikafloor®-264 FS only to level the squeegee applied material. Over-rolling and late back rolling may cause bubbling and leave roller marks.
Smooth Finish Self-Leveling Slurry
Pour a bead of product on the surface to be coated, then spread with a notched squeegee or pin rake to the desired thickness (60 - 120 mils). Roll immediately (within max. 10 minutes of application) in two directions with a spiked roller to ensure even thickness and the removal of entrapped air.
