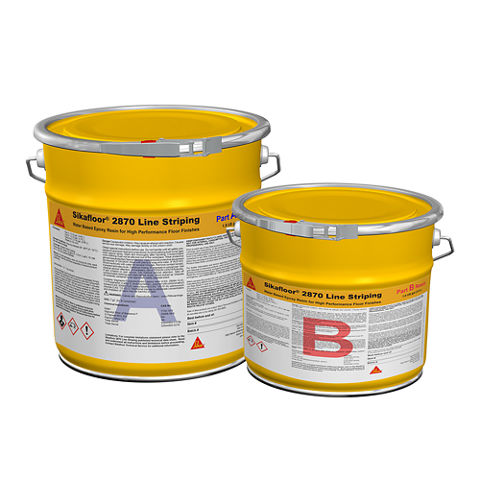

Sikafloor®-2870 Line Striping

WATER BASED EPOXY LINE STRIPING FOR HIGH PERFORMANCE FLOOR FINISHES

Sikafloor 2870 Line Striping is a water-based, low VOC, two part epoxy resin line striping and traffic marking
coating.

Water based, low VOC’s
Bright, long lasting colors
Excellent penetration and adhesion
Easy application
Reduced recoat times

Buy Now

Usage

Sikafloor 2870 Line Striping is designed as a line striping coating for Sikafloor epoxy and urethane coatings, as well as for broadcast and troweled systems.

Advantages

Water based, low VOC’s
Bright, long lasting colors
Excellent penetration and adhesion
Easy application
Reduced recoat times

Packaging

Component A:	1.5 US gal. (5.68 L) fill in a 2 gal. pail
Component B:	1.0 US gal. (3.78 L) fill in a 1 gal. can
Components A+B:	2.5 US gal. (9.46 L)

Color

Traffic Red

White

Safety Yellow

Product Details

Product Information

Shelf Life

12 months in original unopened container under proper storage conditions.

Storage Conditions

Store dry between 40°- 90°F (4°- 32°C) . Do not allow to freeze

Volatile organic compound (VOC) content

40 g/L

Components A+B

Viscosity

3500 Cps

ASTM D2196

at 73°F (23°C) and 50 % R.H

Technical Information

Shore D Hardness

85	ASTM D2240 at 73°F (23°C) and 50 % R.H

Abrasion Resistance

0.141g (CS-17) 1000 rotations/1000g

ASTM D2749

at 73°F (23°C) and 50 % R.H

Tensile Adhesion Strength

>435 Psi (>3Mpa)

ASTM D4541

at 73°F (23°C) and 50 % R.H

Impact Strength

3.6 ft-Ib

ASTM D2794

at 73°F (23°C) and 50 % R.H

Service Temperature

50°F (10°C) min./86°F (30°C) max.

Water Absorption

2.50% (24 hours boiling)

ASTM C413

at 73°F (23°C) and 50 % R.H

Permeability to Water Vapor

9.7 Perm

ASTM E96

at 73°F (23°C) and 50 % R.H

Coefficient of Friction

0.16	ANSI 137.1 at 73°F (23°C) and 50 % R.H

Application

Application Information

Mixing Ratio

1.5 : 1 by volume.

Pot Life

Material Temperature	Time
+73°F (23°C)	~ 25 min

Pot life is not visible, product remains liquid after exceeding pot life. Application after pot life limit may result in adhesion failure. Do not apply after pot life limit.

Cure Time

Ambient & Substrate Temperature	Foot Traffic	Light Traffic	Full cure
50 °F (10 °C)	~ 24 hours	~ 2 days	~ 3 days
73 °F (23 °C)	~ 14 hours	~ 24 hours	~ 36 hours
86 °F (30 °C)	~ 10 hours	~ 18 hours	~ 24 hours

Waiting / Recoat Times

Ambient & Substrate Temperature	Time Minimum
50 °F (10 °C)	~12 hours
73 °F (23 °C)	~ 3 hours
86 °F (30 °C)	~ 2 hours

Consumption

Coverage

160 - 530 ft2 / US gal (3.9 – 4.9 m2 / L) at 3 - 10 mils (0.08 – 0.25 mm)
wet film thickness

Application steps

MIXING

Mixing Ratio: - 1.5 : 1 by volume.

For bulk packaging, when not mixing full units, each component must be pre-mixed separately to ensure product physical.

Premix each component separately. Empty component B (Hardener) in the correct mix ratio into component A (Resin). Mix the combined components for at least 3 minutes using a low speed drill (300 - 450 rpm) and Exomixer or Jiffy type paddle suited to the volume of the mixing container to minimize entrapped air. Be careful not to introduce any air bubbles while mixing. Make sure the contents are completely mixed to avoid any weak or partially cured spots in the coating. During the mixing operation, scrape down the sides and bottom of the container with a flat or straight edge trowel at least once to ensure complete mixing.
Do not mix more material than can be applied within the working time limits (i.e. Pot Life) at the actual field temperature.

APPLICATION

Apply by brush or roller at the rate of 160 - 320 ft2 / US gal (3.9 – 7.8 m2 / L) at 5 – 10 mils (0.13 – 0.25 mm) wet film thickness (w.f.t.) and back-roll with pressure. Coverage will vary depending on the texture of the prepared floor. Product has a limited pot life, see Typical Data. Pour a bead of product in the form of a ribbon on the surface to be coated, then spread with squeegee and back roll. Ensure that the coating is pore free and pinhole-free and provides uniform and complete coverage over the entire concrete substrate. If necessary, apply an additional coat to ensure the coating is pore-free and pinhole-free and provides uniform and complete coverage over the entire concrete substrate.
