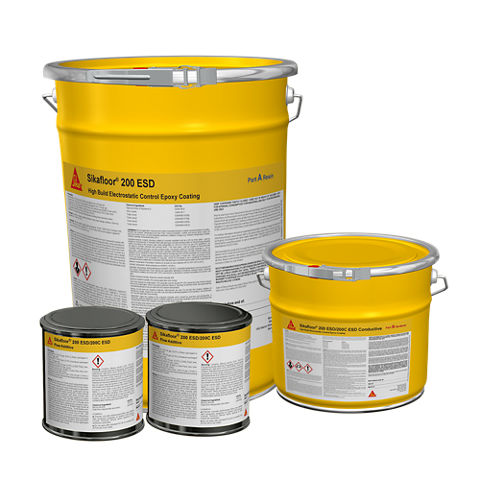

Sikafloor®-200 ESD

3 months in original unopened container under proper storage conditions.

Store dry between 40° -  90°F (4°-  32°C).

1.0  X 10⁶ to 1.0 X 10⁹ ohms resistance

Please consult Sikafloor Technical Services.

Mix full units only = A + B + 2C + 2 ESD color pack

Minimum/Maximum 50˚/85˚F (10˚/30˚C). Substrate temperature must be at least 5˚F (3˚C) above measured Dew Point.


Mixing and Application must adhere to Material, Ambient and Substrate temperatures listed above or a decrease in product workability and slower cure rates will occur.

Sikafloor®-200 ESD must be applied and distributed immediately after mixing.*Do not apply after indicated Pot Life is exceeded. End of Pot Life is not visible.

356 ft2/ 3.56 / mixed US gallons at 16 mils .
Sikafloor®-200 ESD should be applied at 15 - 18 mils. Product will lose ESD properties if applied at excessive thickness. Do not exceed the recommended thickness.

Mix full units only = A + B + 2C + 2 ESD color pack

Premix each component separately using a variable speed drill and Jiffy-type mixing blade. Stir every component A container with a long margin tool to ensure contents are evenly distributed scraping using a variable speed drill and Jiffy-type mixing blade the sides, corners and bottom of the pail. A jiffy-type mixing paddle with a variable speed mixing drill is then placed in the component A container and while running add the ESD color pack (2 cans) and flow component C (2 cans) to the vortex of the mix. Then add the component B on a low speed keeping the mixing blade under the surface being cautious not to create a vortex and inducing air, to the pigmented component A and mix for 3 minutes at a moderate speed (300rpm), scraping the container sides, bottom, and corners with a flat or straight edge trowel at least once to ensure complete mixing. . Immediately prior to application, strain the mixed material into a clean vessel using a fine paint strainer with a mesh size of 190 - 200 microns (nominal 80 mesh).

Do not mix more material than can be applied within the working time limits (i.e. Pot Life) at the actual field temperature. Sikafloor 200 ESD must be placed and distributed on the application surface immediately after mixing.

Do not hand mix Sikafloor materials. Mechanically mix only. Do not thin this product. Addition of thinners (e.g. water, solvent, etc.) will slow cure and reduce ultimate properties of this product. Use of thinners will void any applicable Sika warranty.

The Sikafloor 200 ESD should be applied with a notched squeegee over a smooth primed substrate. The notched squeegee should be 18 to 24 inches (45.6 to 60.1 cm) long with 1/16 to 1/8 inch (1.6 - 3.2 mm) notches at 1/4 inch (6.4 mm) intervals. This type of squeegee will apply sufficient material to achieve 15 - 18 wet mils when back rolled. Back rolling is typically done with a 9 inch (22.8 cm) or 18 in (45.6 cm) wide, 3/8 inch (9.5 mm) short nap , solvent resistant roller cover. Back roll the Sikafloor 200 ESD to level the material applied. Over-rolling and late back rolling may cause bubbling and leave roller marks. Divide the floor into sections that can be completed without stopping. When ending a section, tape it off to form a clean edge for an adjacent section.

If Sikafloor 220W conductive primer is used in conjuction with Sikafloor 200 ESD, test the primed surface for conductivity prior to the application of Sikafloor 200 ESD. A value of < 10 X 10³ ohms per ANSI/ESD S7.1/ASTM F-150 must be achieved.

The recommended application procedures are:

1. Take one 5 gallon (18.9 liter) pail of the mixed Sikafloor 200 ESD and start at one end of the section to be coated. Trim the walls and/or obstructions in the immediate area where the coating will be applied. Pour the Sikafloor 200 ESD in a line approximately 1 ft (0.3 m) from the wall or starting line along the entire width of the section to be coated.
2. The person using the squeegee can then make one pass along the wall or starting line, turn and come back making a second pass adjacent to the first pass. Next, use the rollers to level the Sikafloor 200 ESD squeegee applied material. One person can roll apply a 15 to 20 ft (4.6 - 6.1 m) wide section. Do this as quickly as possible.
3. Pour another line of Sikafloor 200 ESD approximately 1 ft (0.3 m) from the rolled area and repeat step 2. The rolling personnel should make sure they are not leaving puddles or thick sections of Sikafloor 200 ESD at the junction of the previously rolled and freshly applied Sikafloor 200 ESD.
4. Follow these procedures until the section is completed. If the work must stop for any reason, use a tapeline as a breaking point.
