Sikaflex®-102 EverFlash Membrane

Sikaflex®-102 EverFlash Membrane

One-component, gun-grade, window and door flashing, sealing and adhering compound

This multi-purpose material is based on a special moisture-cured polyurethane that offers an accelerated curing time.

  • Excellent weathering and water resistance
  • UV Stable
  • Non-corrosive
  • Non-Staining
  • Non-Shrinking
  • Can be used for multiple situations (static cracks less than ¾”, 90° details, sealing fasteners, buck embedment & flashing)
  • High durability
  • Excellent unprimed adhesion on all cement-based materials, brick, ceramics, glass, metals, wood, epoxy, polyester and acrylic resin
  • Can be used with direct applied stucco applications
  • Compatible with Sikasil WS295, Sikasil WS290, Sikaflex 1a, Sikaflex 15LM, SikaHyflex 150LM
  • Single source system warranty available when used in conjunction with Sikaflex, SikaHyflex or Sikasil weatherseal or perimeter sealants, Sikagard Air Barrier Systems, or Sika BMI Stucco Systems
  • Can be painted over with water, oil, and rubber-based paints. (Preliminary tests recommended)
  • Fast Cure system (can apply perimeter sealant in as quickly as 2 hours)
  • Allows for same day installation of windows and doors
  • Compatible with Sikalastic DeckPro and RoofPro systems
Product Data Sheet
Show all documents

Usage

  • Floor moldings and door sills
  • Wood or metal window and door frames
  • Seal exterior perimeter of window nailing flanges
  • CMU, poured in place or precast concrete
  • Sheathing joints
  • Gaskets at openings in walls or floors for ducts, piling, etc.
  • Sealing perimeter rough openings of wall penetrations


Advantages

  • Excellent weathering and water resistance
  • UV Stable
  • Non-corrosive
  • Non-Staining
  • Non-Shrinking
  • Can be used for multiple situations (static cracks less than ¾”, 90° details, sealing fasteners, buck embedment & flashing)
  • High durability
  • Excellent unprimed adhesion on all cement-based materials, brick, ceramics, glass, metals, wood, epoxy, polyester and acrylic resin
  • Can be used with direct applied stucco applications
  • Compatible with Sikasil WS295, Sikasil WS290, Sikaflex 1a, Sikaflex 15LM, SikaHyflex 150LM
  • Single source system warranty available when used in conjunction with Sikaflex, SikaHyflex or Sikasil weatherseal or perimeter sealants, Sikagard Air Barrier Systems, or Sika BMI Stucco Systems
  • Can be painted over with water, oil, and rubber-based paints. (Preliminary tests recommended)
  • Fast Cure system (can apply perimeter sealant in as quickly as 2 hours)
  • Allows for same day installation of windows and doors
  • Compatible with Sikalastic DeckPro and RoofPro systems

Packaging

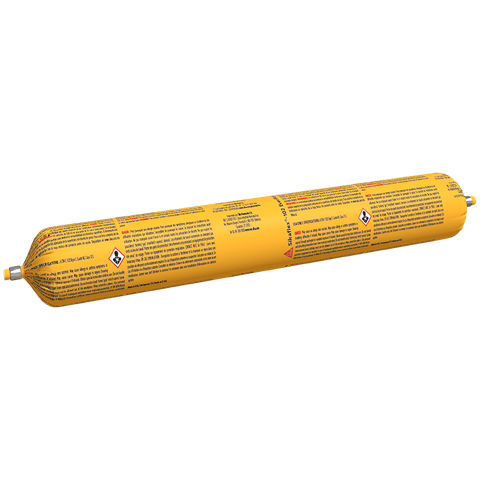

20 oz. sausage

Color

White

Product Details

Product Information

Shelf Life

One year in original, unopened containers.

Storage Conditions

Store dry at 40–95 °F (4–35 °C).

Condition material to 65–75 °F before using.
Technical Information

Shore A Hardness

40–45

(at 73 °F (23 °C) 50 % R.H.) (ASTM D-2240)

Tensile Strength

225 psi

(ASTM D-412)

73 °F (23 °C)
50 % R.H.

Elastic Recovery

90%

Adhesion in Peel

Lap Shear Strength:   165psi              (ASTM D-1002, modified glass substrate 73F/23C 50% RH)

Chemical Resistance

Good resistance to water, weak acids, weak alkalis, sewerage, mineral oils, vegetable oils, fats, fuels. (Not resistant to organic solvents, paint thinner, strong acids, strong alkalis). Consult Technical Service for specific data.

Resistance to Weathering

Excellent

Service Temperature

-40–170 °F (-40–75 °C).

Application

Application Information

Ambient Air Temperature

40 °F to 100 °F. Sealant should be installed when joint is at midrange of its anticipated movement.

Substrate Temperature

40 °F to 100 °F. Sealant should be installed when joint is at midrange of its anticipated movement.

Curing Rate

Tack-Free Time (TT-S-00230C)1–2 hrs depending on climate
Final Cure3 to 5 days
Application steps

SUBSTRATE PREPARATION

All surfaces must be sound, clean, dry, and free of frost, oil and grease. Curing compound residues and any other foreign matter must be thoroughly removed. A roughened surface will also enhance bond.



Detailing Joints, Seams, Cracks and Penetrations

  1. Before application, fill or repair any cracks larger than 3/4 inch before application with appropriate repair material.
  2. Fill and tool all cracks, joints and seams that measure up to 3/4 inch in width with Sikaflex®-102 EverFlash Membrane. Keep the nozzle in the sealant; continue on with a steady flow of sealant preceding the nozzle and avoid overlapping of sealant to eliminate entrapment of air.
  3. Apply a thick bead of Sikaflex®-102 EverFlash Membrane to all sheathing joints, seams and cracks. For plywood knots, checks, cracks, separations or surface irregularities, apply a spot of Sikaflex®-102 EverFlash Membrane and trowel smooth.
  4. Apply and tool a cant bead of Sikaflex®-102 EverFlash Membrane around wall penetrations and fasteners.
  5. Use a dry putty knife, trowel or spatula to tool and spread the product. Spread 1-inch beyond seams at each side of the window (or door) to a thickness of 12–15 mils.

Priming is not usually necessary for anodized aluminum, steel, non-absorbent materials such as glass, ceramics, stoneware and tiles. Consult Technical Service at 1-800-933-SIKA for additional information on priming.
