Sikafloor® DecoDur Flake FX
@ 50 - 100 mils (1.3 - 2.5 MM)
Sikafloor® DecoDur Flake FX is an aesthetic, easy to clean, seamless floor using epoxy binder that is broadcast with a colored vinyl flake blend and sealed
with a clear, or UV stable topcoat. The system is customizable with an extensive blend palette and may be double broadcast for increased thickness. Final surface options include: integral cove base, and variable surface texture to produce a range of slip-resistant finishes. Sikafloor® DecoDur Flake FX is typically installed @ 50 - 100 mils (1.3 - 2.5 mm).
- Easy to maintain seamless surface
- Durable, impermeable and seamless
- Abrasion, impact and chemical resistant
- Optional integral cove base and curbs without joints
- Low odor / low VOC

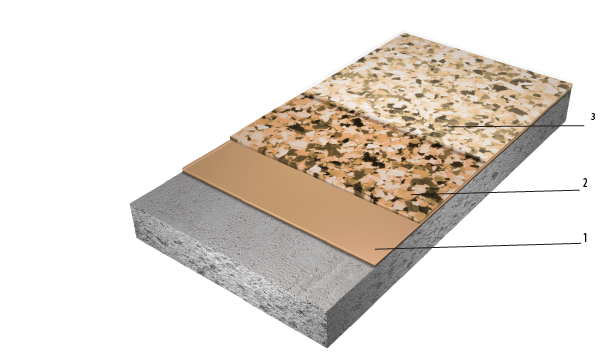

System Structure
Usage
- Cafeterias and restaurants
- Education facilities
- Retail stores
- Laboratories and clinics
- Healthcare facilities
- Lobbies and public spaces
Advantages
- Easy to maintain seamless surface
- Durable, impermeable and seamless
- Abrasion, impact and chemical resistant
- Optional integral cove base and curbs without joints
- Low odor / low VOC
Color
Available in various standard color blends, refer to Sikafloor® DecoFlake® color guide.
System Details
System Structure
Sikafloor® DecoDur Flake FX ~ 50 - 100 mils (1.3 - 2.5 mm)
Single Broadcast System
| Description | Products | Thickness mils |
| 1. Primer | Sikafloor®-161 | 8 - 10 |
| 2. Receiver Coat | Sikafloor®-264 + Sika Decorative Flake | 10 - 12 |
| 3. Top Coat | Sikafloor®-217 | 10 - 12 |
Double Broadcast System
| Description | Products | Thickness mils |
| 1. Primer | Sikafloor®-161 | 8 - 10 |
| 2. Receiver Coat | Sikafloor®-264 + Sika Decorative Flake | 10 - 12 |
| 3. 2nd Receiver Coat | Sikafloor®-217 + Sika Decorative Flake | 12 - 16 |
| 4. Top Coat | Sikafloor®-217 | 10 - 12 |
Options
| Description | Products | Thickness mils |
| Primers | Sikafloor®-1620 Sikafloor®-165 FS | 12 - 15 8 - 10 |
| Alternate Receiver Coat | Sikafloor®-521 or Sikafloor®-510 LPL + Sikafloor® Urethane Pigment Pack | 15 - 18 |
| Alternate Top Coat | Sikafloor®-521 or Sikafloor®-510 LPL | 8 - 12 |
| 2nd Top Coats | Sikafloor®-521 or Sikafloor®-510 LPL
Sikafloor®-217 Sikafloor®-304 W NA Sikafloor®-340 Sikafloor®-315N | 12 - 15
12 - 15 5 - 8 4 - 6 3 - 4 |
- Sikafloor®- 264 and Sikafloor®-217 may be replaced by Sikafloor®-521 or Sikafloor®-510 LPL for greater UV resistance, fast cure time
- Sikafloor®-304 W NA would be an optional 2nd top coat on top of Sikafloor®-217 for gloss reduction or matte finish required
- Sikafloor®-340 and Sikafloor®-315 N clear would be an optional 2nd top coat on top of Sikafloor®-217 for increased chemical resistance
Nominal thickness
50 - 100 mils (1.3 - 2.5 mm)
Minimum thickness
50 mils (1.3 mm)
Shore D Hardness
| 82 | ASTM D2240 at 73°F (23°C) and 50% R.H |
Abrasion Resistance
| 58 mg loss (CS-17/1000 rotations/1000g) | ASTM D4060 at 73°F (23°C) and 50% R.H |
Compressive Strength
| 7,978 psi (55.0 Mpa) | ASTM C579 at 73°F (23°C) and 50% R.H |
Flexural Strength
| 9,284 psi (64.0 Mpa) | ASTM D790 at 73°F (23°C) and 50% R.H |
Tensile Strength
| 5,078 psi (35.0 Mpa) | ASTM D638 at 73°F (23°C) and 50% R.H |
Tensile Adhesion Strength
| >400 psi (2.7 MPa) (100 % concrete failure) | ASTM D4541 at 73°F (23°C) and 50% R.H |
Chemical Resistance
Contact Sika Technical Service for specific information.
Permeability to Water Vapor
| 0.33 g/hour/sq.ft | ASTM E96 at 73°F (23°C) and 50% R.H |
Coefficient of Friction
| 0.6 | ANSI 326.3 at 73°F (23°C) and 50% R.H |
Water Absorption
| 0.13 % 2 hours boiling | ASTM C413 at 73°F (23°C) and 50% R.H |
Application
Ambient Air Temperature
Minimum/Maximum 50/85 ˚F (10/30 ˚C)
Substrate Temperature
Minimum/Maximum 50/85 ˚F (10/30 ˚C)
Coverage
Single Broadcast System
| Description | Products | Approximates Sq.Ft./kit |
| 1. Primer | Sikafloor®-161 | 900@8 mils |
| 2. Receiver Coat | Sikafloor®-264 + Sika Decorative Flake | 720@10 mils
2.16 bags per 4.5 gallon kit |
| 3. Top Coat | Sikafloor®-217 | 720@10 mils |
Double Broadcast System
| Description | Products | Approximates Sq.Ft./kit |
| 1. Primer | Sikafloor®-161 | 900@8 mils |
| 2. Receiver Coat | Sikafloor®-264 + Sika Decorative Flake | 720@10 mils
2.16 bags per 4.5 gallon kit |
| 3. 2nd Receiver Coat | Sikafloor®-217 + Sika Decorative Flake | 720@10 mils
2.16 bags per 4.5 gallon kit |
Options
| Description | Products | Approximates Sq.Ft./kit |
| Primers | Sikafloor®-1620 Sikafloor®-165 FS | 533@12 mils 1,000@8 mils |
| Alternate Receiver Coat | Sikafloor®-521 or Sikafloor®-510 LPL + Sikafloor® Urethane Pigment Pack | 450@16 mils 833@16 mils
1 quart per Sikafloor®-521 kit 3 quarts per Sikafloor®-510 LPL kit |
| Alternate Top Coat | Sikafloor®-521 Sikafloor®-510 LPL | 600@12 mils 1,113@12 mils |
| 2nd Top Coats | Sikafloor®-521 Sikafloor®-510 LPL Sikafloor®-217 Sikafloor®-304 W NA Sikafloor®-340 Sikafloor®-315N | 600@12 mils 1,113@12 mils 900@8 mils 595@5 mils 6,000@4 mils 2,400@4 mils |
SUBSTRATE PREPARATION
Concrete surfaces must be clean and sound. Remove all dust, dirt, existing paint films, efflorescence, exudates, laitance, form oils, hydraulic or fuel oils, brake fluid, grease, fungus, mildew, biological residues or any other contaminants which may prohibit a good bond.
Prepare the surface by any appropriate mechanical means, in order to achieve a profile equivalent to ICRI - CSP 3-6. The compressive strength of the concrete substrate should be at least 3,625 psi (25 MPa) at 28 days and a minimum of 218 psi (1.5 MPa) in tension at the time of application.
Repairs to cementitious substrates, filling of blowholes, leveling of irregularities, etc. should be carried out using an appropriate Sika profiling mortar. Contact Sika Technical Service for a recommendation.
Primer
Priming for concrete substrate is required. Prime with either Sikafloor®- 160, Sikafloor®- 161, Sikafloor®- 1620 or Sikafloor®- 165 FS. Allow the primer to cure (varies with temperature and humidity) until tack free before applying subsequent membrane coats. Ensure that the primer is pore-free, pinhole-free and provides uniform and complete coverage over the entire substrate.
Please refer to the individual most current and respective Product Data Sheet for specific and detailed information.
MIXING
Please refer to the individual Product Data Sheet
APPLICATION
Please refer to the individual Product Data Sheet
