Sikafloor® DecoDur Metallic FX
Sikafloor® DecoDur Metallic FX uses a high solids epoxy and ultra-fine metallic powder to impart aesthetic, multidimensional, pearlescent optics to
a high performance floor system. Sikafloor® DecoDur Metallic FX is typically installed @ 28 - 36 mils
(0.7 - 0.9 MM).
- Low maintenance
- Multi-dimensional color hues
- Low VOC-content and low odor
- Smooth, matte and glossy finish available
- Anti-slip finish available
- Durable, impermeable and seamless
- High abrasion resistant
- Stylish, unique designs color hues

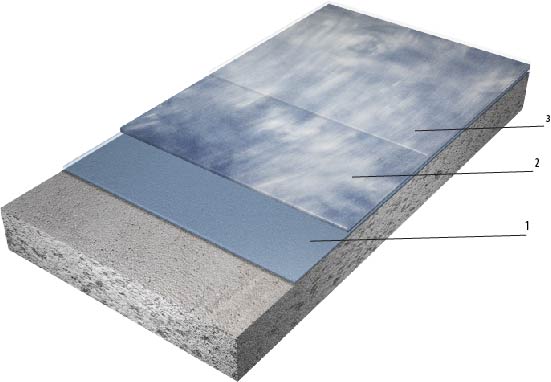

System Structure
Usage
- Lobbies and public spaces
- Retail and commercial spaces
- Break and rest rooms
- Offices and corridors
- Hospitality areas
Advantages
- Low maintenance
- Multi-dimensional color hues
- Low VOC-content and low odor
- Smooth, matte and glossy finish available
- Anti-slip finish available
- Durable, impermeable and seamless
- High abrasion resistant
- Stylish, unique designs color hues
Color
Stylish, unique designs with color hues
System Details
System Structure
Sikafloor® DecoDur Metallic FX ~ 28 - 36 mils (0.7 - 0.9 MM)
| Description | Products | Thickness mils |
| 1. Primer | Sikafloor®-264 | 8 - 10 |
| 2. Body Coat | Sikafloor®-217 + Sika Metallic Powder | 16 - 20 |
| 3. Top Coat | Sikafloor®-315 N | 4 - 6 |
Options
| Description | Products | Thickness mils |
| Primers | Sikafloor®-1620 Sikafloor®-165 FS Sikafloor®-2540 W NA | 12 - 15 8 - 10 5 - 8 |
| Alternate Body Coat | Sikafloor®-521 or Sikafloor®-510 LPL + Sika Metallic Powder | 16 - 18 |
| Top Coat | Sikafloor®-304 W NA | 5 - 8 |
- Sikafloor®-217 may be replaced by Sikafloor®-521 or Sikafloor®-510 LPL for greater UV resistance, fast cure time
- Sikafloor®-304 W NA would be an optional top coat for gloss reduction or matte finish required
Nominal thickness
28 - 36 mils (0.7 - 0.9 MM)
Minimum thickness
28 mils (0.6 MM)
Shore D Hardness
| 80 | ASTM D2240 at 73°F (23°C) and 50% R.H |
Abrasion Resistance
| 8 mg loss (CS-17/1000 rotations/1000g) | ASTM D4060 at 73°F (23°C) and 50% R.H |
Compressive Strength
| 7,250 psi (51.2 Mpa) | ASTM C579 at 73°F (23°C) and 50% R.H |
Flexural Strength
| 9,384 psi (64.7 MPa) | ASTM D790 at 73°F (23°C) and 50% R.H |
Tensile Strength
| 5,728 psi (39.4 MPa) | ASTM D638 at 73°F (23°C) and 50% R.H |
Tensile Adhesion Strength
| >400 psi (2.7 MPa) (100 % concrete failure) | ASTM D4541 at 73°F (23°C) and 50% R.H |
Chemical Resistance
Contact Sika Technical Service for specific information
Coefficient of Friction
| 0.6 | ANSI 326.3 at 73°F (23°C) and 50% R.H |
Indentation
| 1.30% | (MIL-PRF-24613) |
Water Absorption
| 0.13 % 2 hours boiling | ASTM C413 at 73°F (23°C) and 50% R.H |
Application
Ambient Air Temperature
Minimum/Maximum 50/85 ˚F (10/30 ˚C)
Substrate Temperature
Minimum/Maximum 50/85 ˚F (10/30 ˚C)
Coverage
| Description | Products | Approximates Sq.Ft./kit |
| 1. Primer | Sikafloor®-264 | 900@8 mils |
| 2. Body Coat | Sikafloor®-217 + Sika Metallic Powder | 450@16 mils
1 jar per 4.5 gallon kit |
| 3. Top Coat | Sikafloor®-315 N | 2,400@14 mils |
Options
| Description | Products | Approximates Sq.Ft./kit |
| Primers | Sikafloor®-1620 Sikafloor®-165 FS Sikafloor®-2540 W NA | 533@12 mils 1,000@8 mils 1,600@5 mils |
| Alternate Body Coat | Sikafloor®-521 or Sikafloor®-510 LPL + Sika Metallic Powder | 450@16 mils 833@16 mils
1 jar per Sikafloor®-521 kit 2 jars per Sikafloor®-510 LPL kit |
| Top Coat | Sikafloor®-304 W NA | 595@5 mils |
SUBSTRATE PREPARATION
Concrete surfaces must be clean and sound. Remove all dust, dirt, existing paint films, efflorescence, exudates, laitance, form oils, hydraulic or fuel oils, brake fluid, grease, fungus, mildew, biological residues or any other contaminants which may prohibit a good bond.
Prepare the surface by any appropriate mechanical means, in order to achieve a profile equivalent to ICRI - CSP 3-6. The compressive strength of the concrete substrate should be at least 3,625 psi (25 MPa) at 28 days and a minimum of 218 psi (1.5 MPa) in tension at the time of application.
Repairs to cementitious substrates, filling of blowholes, leveling of irregularities, etc. should be carried out using an appropriate Sika profiling mortar. Contact Sika Technical Service for a recommendation.
Primer
Priming for concrete substrate is required. Prime with either Sikafloor®- 264, Sikafloor®- 1620, Sikafloor®- 165 FS or Sikafloor-2540 W NA. Allow the primer to cure (varies with temperature and humidity) until tack free before applying subsequent membrane coats. Ensure that the primer is pore-free, pinhole-free and provides uniform and complete coverage over the entire substrate.
Please refer to the individual most current and respective Product Data Sheet for specific and detailed information.
MIXING
Please refer to the individual Product Data Sheets
APPLICATION
Please refer to the individual Product Data Sheets
