Sikafloor® DecoDur Quartz FX
Sikafloor® DecoDur Quartz FX is a seamless, decorative, broadcast and sealed epoxy floor, using colored quartz aggregates and finished with a transparent
top coat. The system provides a durable, impermeable lightly textured, slip resistant finish with excellent mechanical and chemical resistance. Sikafloor epoxy, polyaspartic and urethane top coats and surface textures are available to produce a wide range of slip resistant finishes suited to specific needs. Sikafloor® DecoDur Quartz FX is typically installed @ 1/8" (3.1 mm).
- Durable, seamless and sanitary
- Excellent mechanical and chemical resistance
- Promotes a safe and hygienic work environment
- Very low maintenance
- Extensive color palette
- Low odor / low VOC
- Optional Integral cove base and curbs are available
System Structure
Usage
- Grocery stores
- Food packing rooms
- Commercial kitchens
- Department stores
- Factories
- Pharmaceutical laboratories and offices
- Hospitals, laboratories and health care facilities
- Museums and galleries
- Banks, office and government buildings
- Recreational facilities, change rooms and showers
Advantages
- Durable, seamless and sanitary
- Excellent mechanical and chemical resistance
- Promotes a safe and hygienic work environment
- Very low maintenance
- Extensive color palette
- Low odor / low VOC
- Optional Integral cove base and curbs are available
Color
Available in various color patterns, refer to Sikafloor® Quartzite® Color Chart for details
System Details

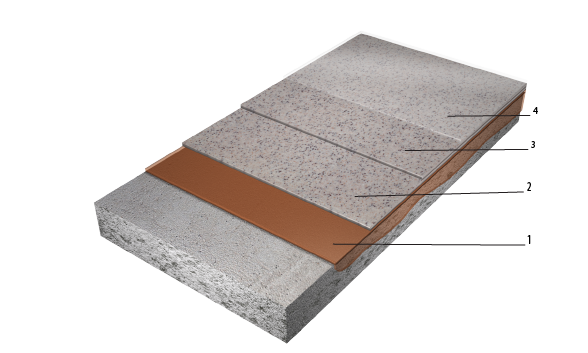

System Structure
Sikafloor® DecoDur Quartz FX @ (1/8" - 3.1 mm)
| Description | Products | Thickness mils |
| 1. Primer | Sikafloor ®-161 | 8 - 10 |
| 2. 1st Receiver Coat | Sikafloor®-217 + Sikafloor® Decorative Quartz | 12 - 16 |
| 3. 2nd Receiver Coat | Sikafloor®-217 + Sikafloor® Decorative Quartz | 12 - 16 |
| 4. Top Coat | Sikafloor®-217 | 16 - 18 |
Options
| Description | Products | Thickness mils |
| Primers | Sikafloor®-1620 Sikafloor®-165 FS | 12 - 15 8 - 10 |
| 2nd Receiver Coat | Sikafloor®-521 or Sikafloor®-510 LPL + Sikafloor® Decorative Quartz | 16 - 18 |
| Top Coats | Sikafloor®-521 or Sikafloor®-510 LPL | 15 - 18 |
| 2nd Top Coats | Sikafloor®-340 Sikafloor®-315 N Sikafloor®-304 W NA | 4 - 6 4 - 6 5 - 8 |
- Sikafloor®-217 may be replaced by Sikafloor®-521 or Sikafloor®-510 LPL for increased UV resistance, fast cure time
- Sikafloor®-340 and Sikafloor®-315 N clear would be an optional 2nd top coat for increased chemical resistance
- Sikafloor®-304 W NA would be an optional 2nd top coat on top of Sikafloor®-217 for gloss reduction or matte finish
Nominal thickness
1/8" (3.1 mm)
Minimum thickness
1/8" (3.1 mm)
Shore D Hardness
| 80 | ASTM D2240 at 73°F (23°C) and 50% R.H |
Abrasion Resistance
| 58 mg loss (CS-17/1000 rotations/1000g) | ASTM D4060 at 73°F (23°C) and 50% R.H |
Compressive Strength
| 12,500 psi (86 Mpa) (28 days) | ASTM C579 at 73°F (23°C) and 50% R.H |
Flexural Strength
| 9,284 psi (64 MPa) | ASTM D790 at 73°F (23°C) and 50% R.H |
Tensile Strength
| 5,078 psi (34 MPa) | ASTM D638 at 73°F (23°C) and 50% R.H |
Tensile Adhesion Strength
| >400 psi (2.7 MPa) (100 % concrete failure) | ASTM D4541 at 73°F (23°C) and 50% R.H |
Combustibility
| Class 1 | ASTM E648 at 73°F (23°C) and 50% R.H |
Chemical Resistance
Contact Sika Technical Service for specific information.
Coefficient of Friction
| 0.6 | ANSI 326.3 at 73°F (23°C) and 50% R.H |
Indentation
| 1.30% | (MIL-PRF-24613) |
Water Absorption
| 0.13 % 2 hours boiling | ASTM C413 at 73°F (23°C) and 50% R.H |
Application
Ambient Air Temperature
Minimum/Maximum 50/85 ˚F (10/30 ˚C)
Substrate Temperature
Minimum/Maximum 50/85 ˚F (10/30 ˚C)
Coverage
| Description | Products | Approximates Sq.Ft./kit |
| 1. Primer | Sikafloor®-161 | 900@8 mils |
| 2. 1st Receiver Coat | Sikafloor®-217 + Sikafloor® Decorative Quartz | 600@12 mils
4.8 bags per 4.5 gallon kit |
| 3. 2nd Receiver Coat | Sikafloor®-217 + Sikafloor® Decorative Quartz | 450@16 mils
4.8 bags per 4.5 gallon kit |
| 4. Top Coat | Sikafloor®-217 | 450@16 mils |
Options
| Description | Products | Approximates Sq.Ft./kit |
| Primers | Sikafloor®-1620 Sikafloor®-165 FS | 533@12 mils 1,000@8 mils |
| 2nd Receiver Coat | Sikafloor®-521 Sikafloor®-510 LPL + Sikafloor® Decorative Quartz | 450@16 mils 833@16 mils
4.8 bags per Sikafloor®-521 kit 8.8 bags per Sikafloor®-510 LPL kit |
| Top Coats | Sikafloor®-521 Sikafloor®-510 LPL | 600@12 mils 1,113@12 mils |
| 2nd Top Coats | Sikafloor®-340 Sikafloor®-315 N Sikafloor®-304 W NA | 6,000@4 mils 2,400@4 mils 595@5 mils |
SUBSTRATE PREPARATION
Concrete surfaces must be clean and sound. Remove all dust, dirt, existing paint films, efflorescence, exudates, laitance, form oils, hydraulic or fuel oils, brake fluid, grease, fungus, mildew, biological residues or any other contaminants which may prohibit a good bond.
Prepare the surface by any appropriate mechanical means, in order to achieve a profile equivalent to ICRI - CSP 3-6. The compressive strength of the concrete substrate should be at least 3,625 psi (25 MPa) at 28 days and a minimum of 218 psi (1.5 MPa) in tension at the time of application.
Repairs to cementitious substrates, filling of blowholes, leveling of irregularities, etc. should be carried out using an appropriate Sika profiling mortar. Contact Sika Technical Service for a recommendation.
Primer
Priming for concrete substrate is required. Prime with either Sikafloor®- 161, Sikafloor®- 1620 or Sikafloor®- 165 FS. Allow the primer to cure (varies with temperature and humidity) until tack free before applying subsequent membrane coats. Ensure that the primer is pore-free, pinhole-free and provides uniform and complete coverage over the entire substrate.
Please refer to the individual most current and respective Product Data Sheet for specific and detailed information.
MIXING
Please refer to the individual Product Data Sheets
APPLICATION
Please refer to the individual Product Data Sheets
